Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the secondary defroster door.

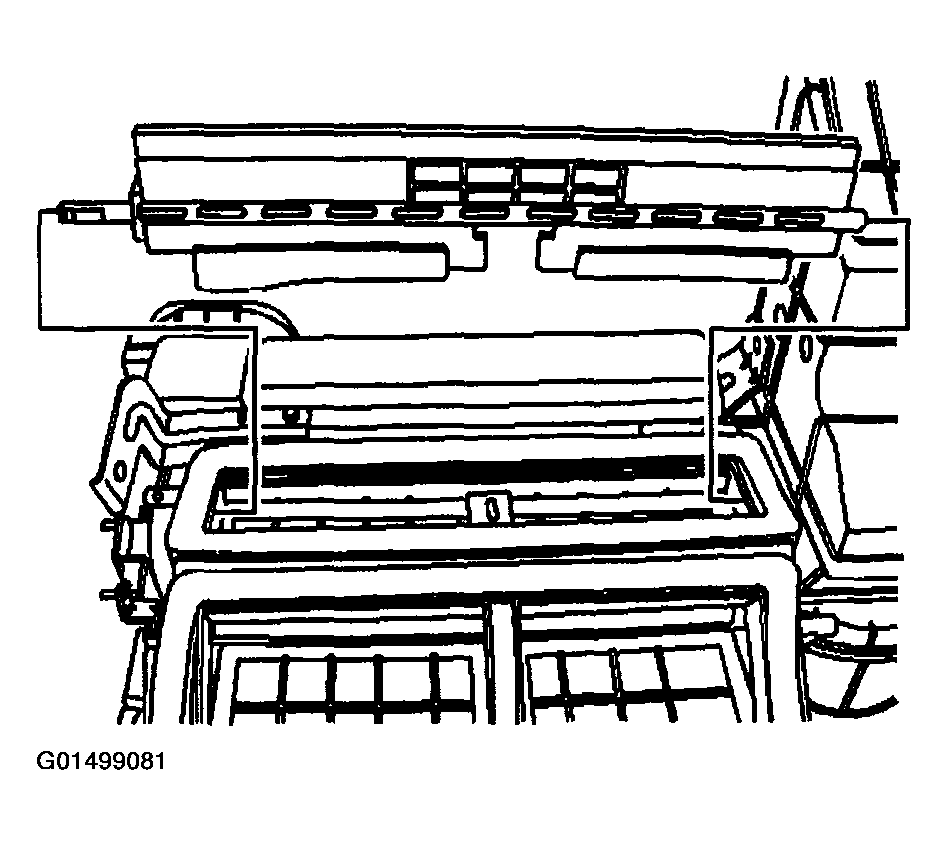

    Fig 1: Installing Secondary Defroster Door
    G01499081Courtesy of GENERAL MOTORS CORP.

    Important:  Align the slot in the secondary defroster door lever with the pin on the mode door main lever.

  2. Install the secondary defroster door lever.
  3. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .

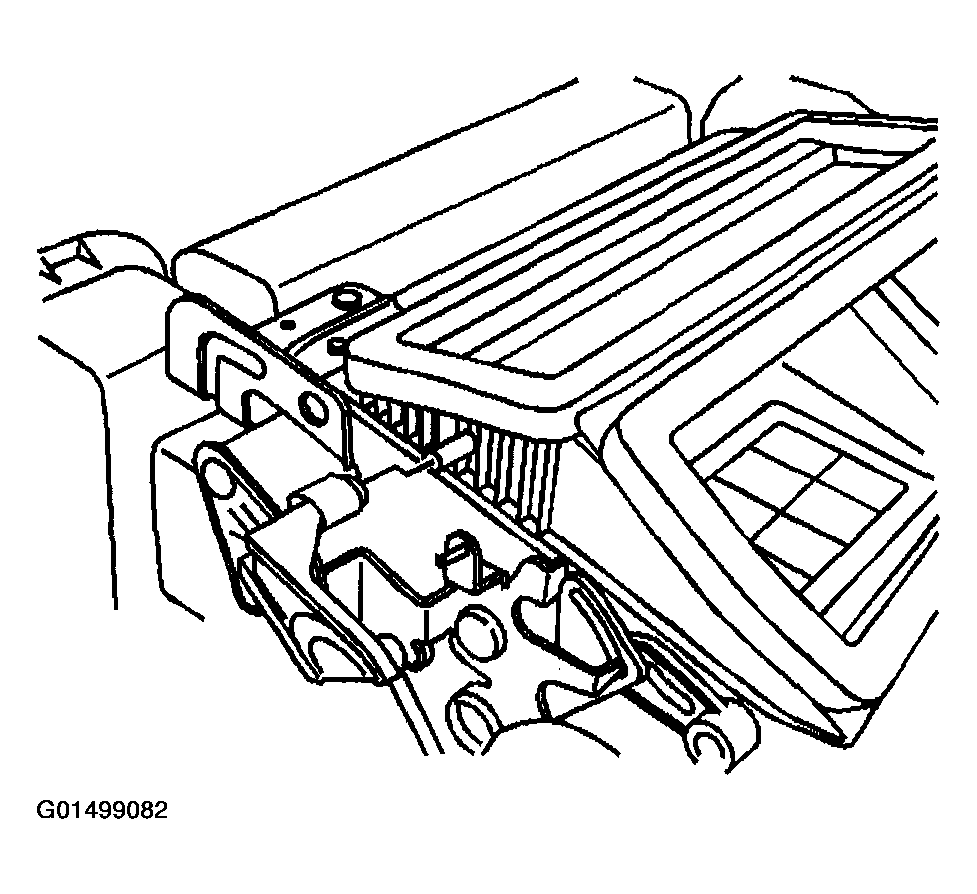

    Fig 2: Installing Secondary Defroster Door Lever
    G01499082Courtesy of GENERAL MOTORS CORP.
