Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the side window defogger ducts onto the defroster duct and snap the ducts into place.
  2. Align the side window defogger ducts and snap the ducts into the I/P carrier.

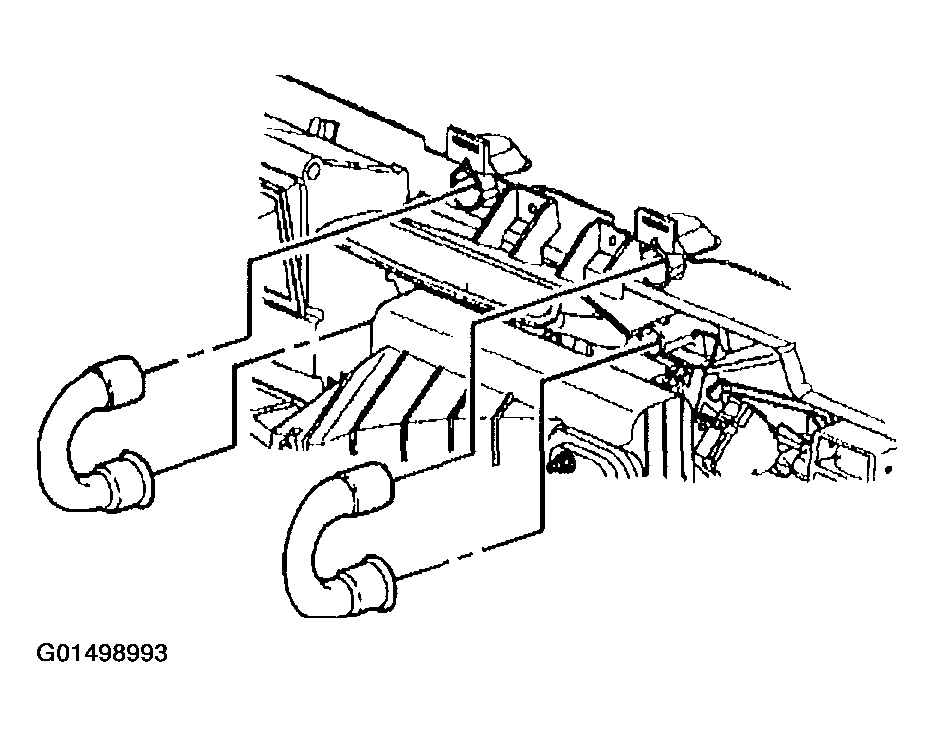

    Fig 1: Installing Side Window Defogger Ducts From vehicle
    G01498993Courtesy of GENERAL MOTORS CORP.
  3. Install the heads up display module.
  4. Install the bolts that secure the heads up display module to the I/P.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  5. Connect the heads up display module electrical connector.
  6. Install the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .

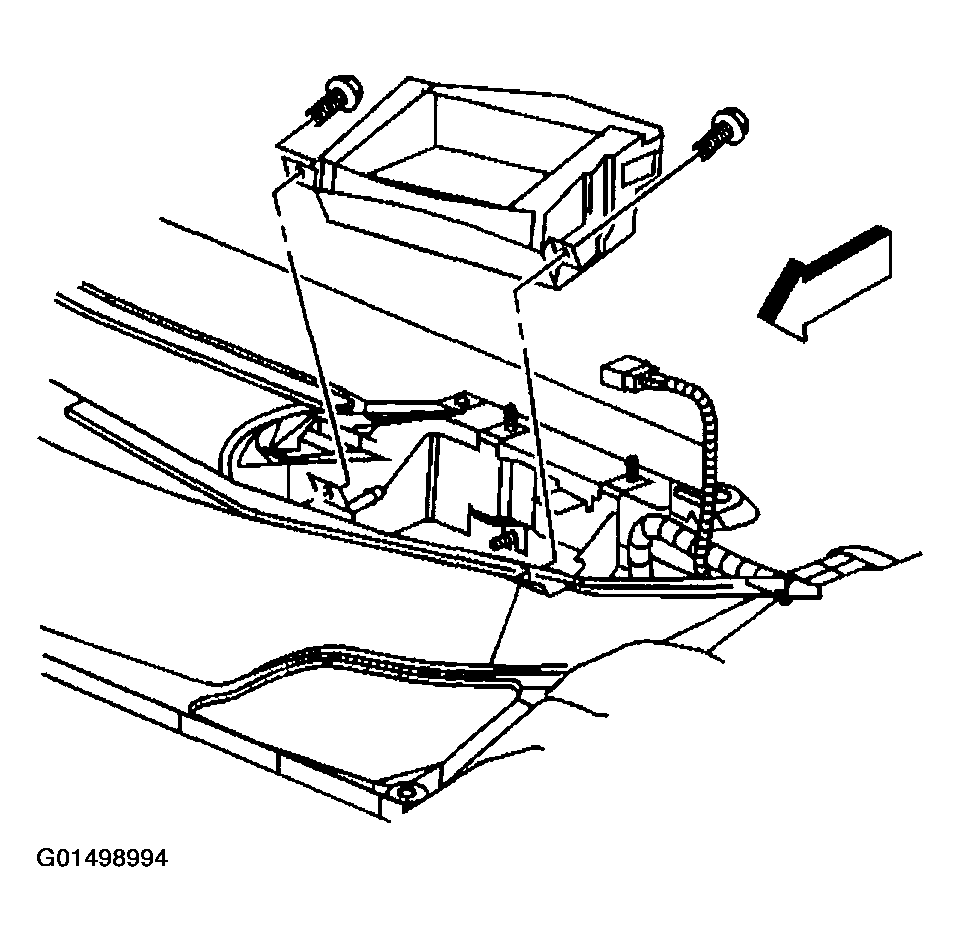

    Fig 2: Installing Heads Up Display Module.
    G01498994Courtesy of GENERAL MOTORS CORP.
