Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to release the bottom of the deflector from the trim bezel.

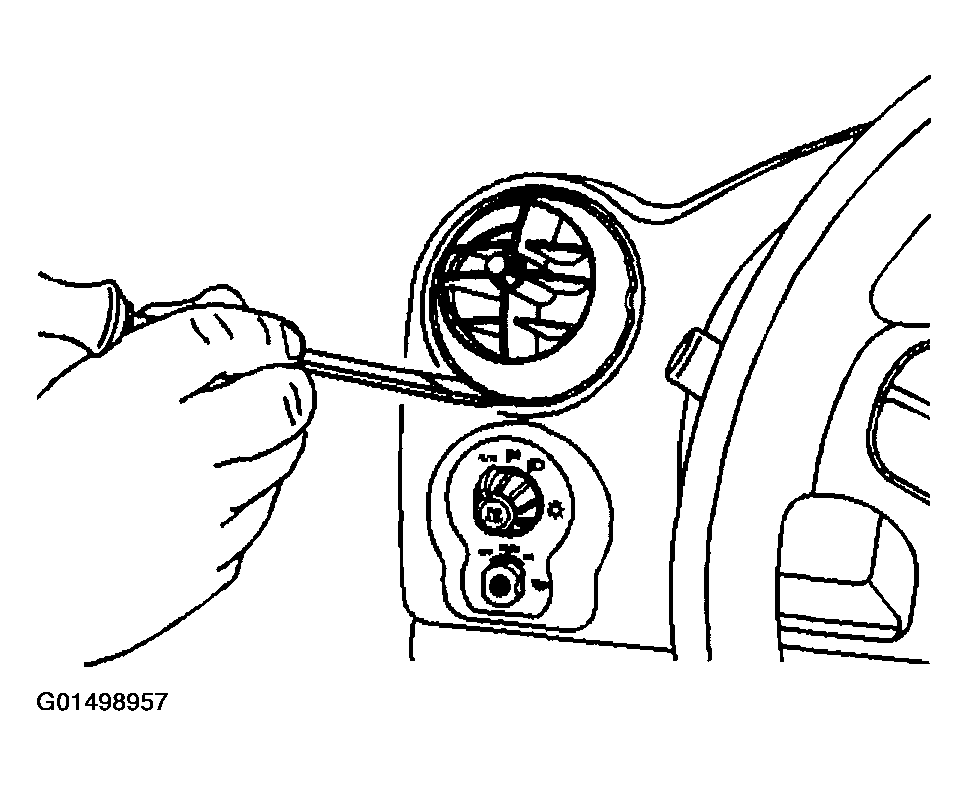

    Fig 1: Replacing Deflector Instrument Panel Air
    G01498957Courtesy of GENERAL MOTORS CORP.
  2. Remove the deflector from the I/P trim bezel.

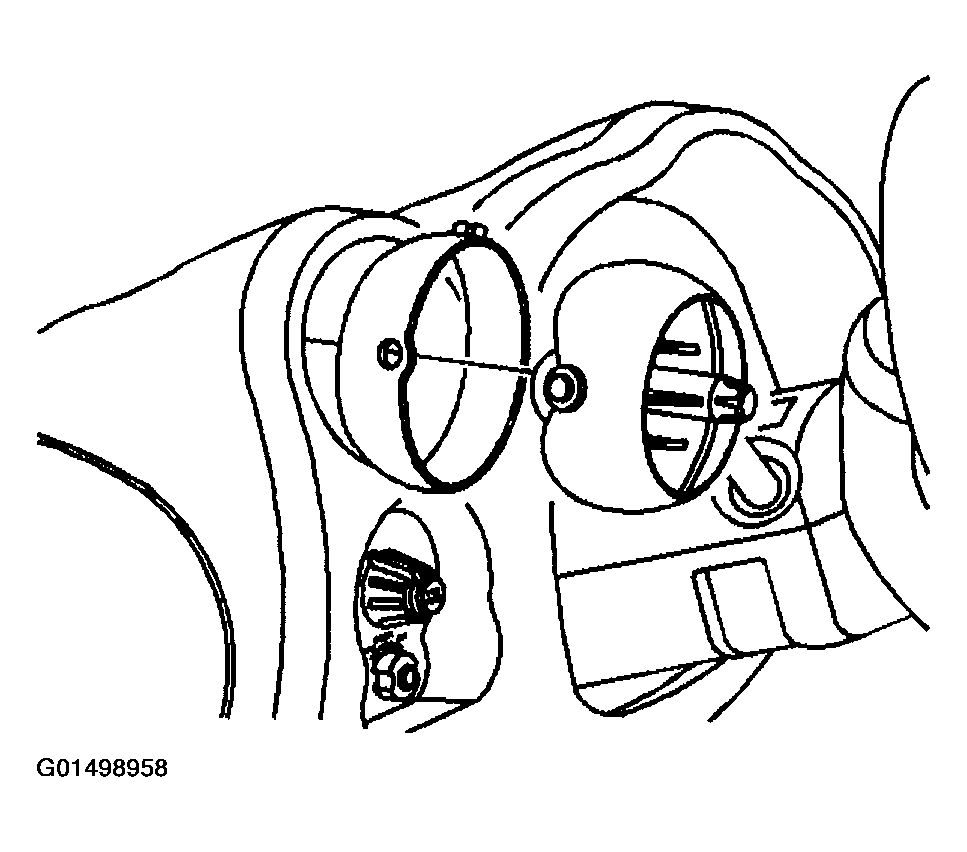

    Fig 2: Removing Deflector From I/P Trim Bezel/caption>
    G01498958Courtesy of GENERAL MOTORS CORP.
