Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the deflector to the I/P trim bezel.
  2. Push the deflector until the deflector is seated.
  3. Inspect the deflector for proper operation.

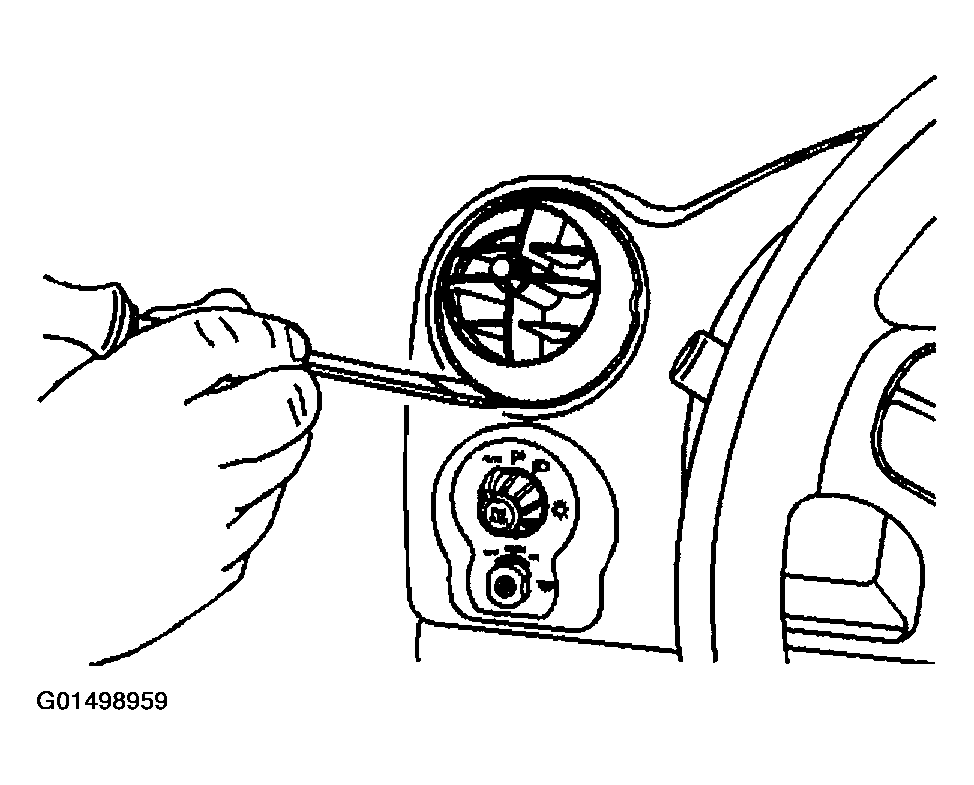

    Fig 1: Installing Deflector To I/P Trim Bezel
    G01498959Courtesy of GENERAL MOTORS CORP.
