Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical center cover.
  2. Locate the compressor relay. Refer to ELECTRICAL CENTER IDENTIFICATION VIEWS to locate the electrical center where the compressor relay exists.

    Important:

    • Always note the orientation of the relay.
    • Make sure the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244  (1) position the tool on opposing corners of the compressor relay (2).
    NOTE: Use J43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  4. Remove the compressor relay (2) from the electrical center.

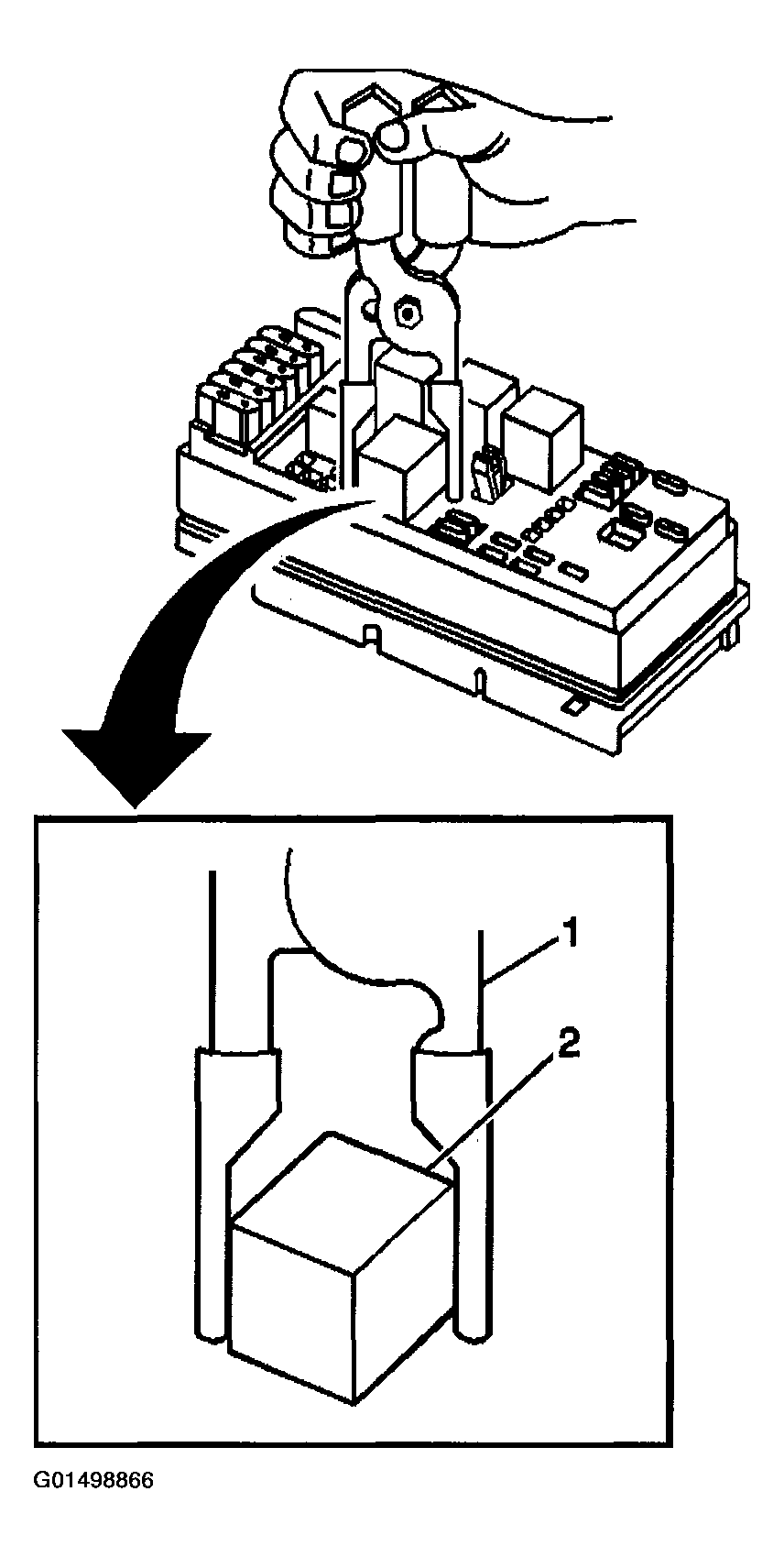

    Fig 1: Removing Procedure Compressor Relay
    G01498866Courtesy of GENERAL MOTORS CORP.
