Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compressor relay (2) in the same position as removed.
  2. Install the electrical center cover.

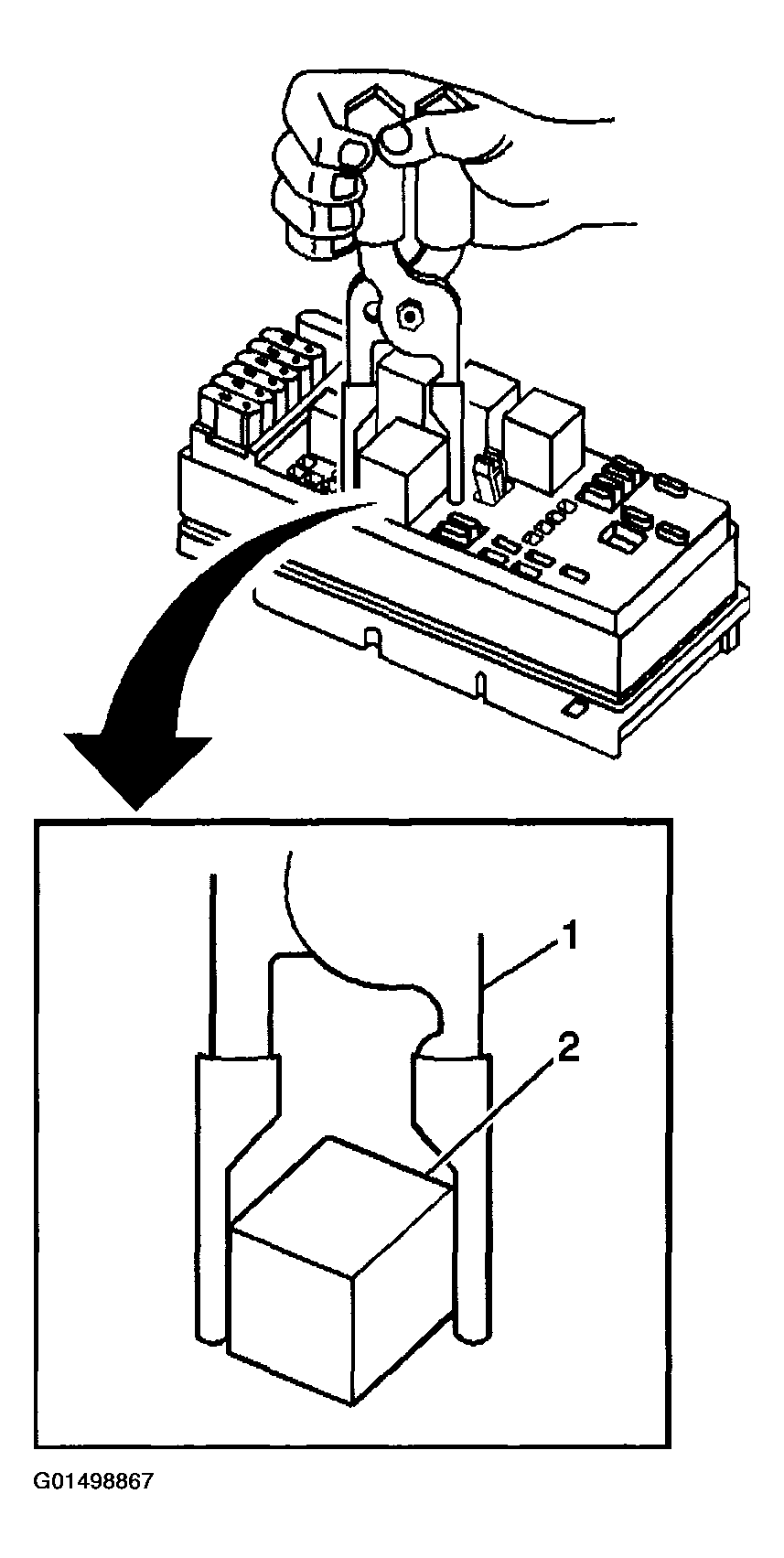

    Fig 1: Installing Compressor Relay
    G01498867Courtesy of GENERAL MOTORS CORP.
