Balancing Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

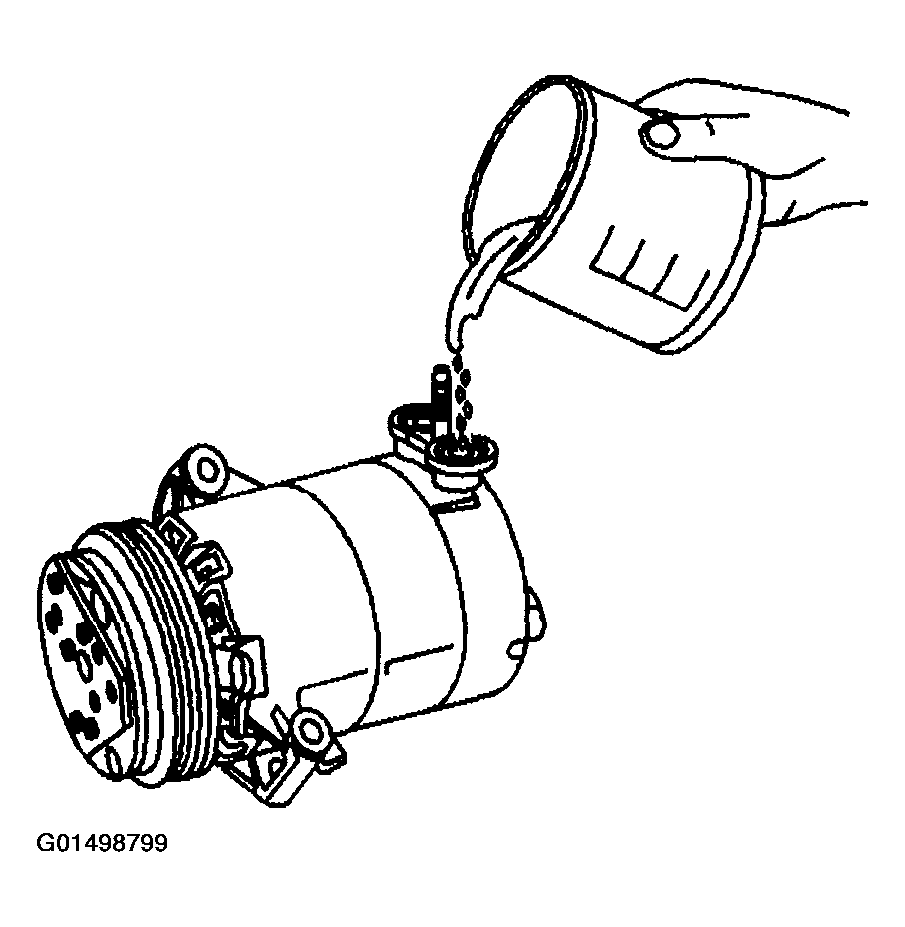

Important: The refrigerant oil in the A/C system must be balanced during compressor replacement.
- The replacement compressor is shipped with 80 ml (2.7 oz) of refrigerant oil.
- Compare the amount of refrigerant oil recorded during compressor removal to the amount of refrigerant oil shipped in the replacement compressor.
If the amount of refrigerant oil drained and recorded from the removed compressor is:
- Less than 80 ml (2.7 oz)
Leave the 80 ml (2.7 oz) in the replacement compressor.
- More than 80 ml (2.7 oz)
Add to the compressor the difference between the 80 ml (2.7 oz) and the amount drained.
- Less than 80 ml (2.7 oz)
