Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor assembly to the HVAC module assembly.
  2. Install the rearward blower resistor assembly mounting screw.

    Tighten

    Tighten all of the screws to 1.8 N.m (16 lb in).

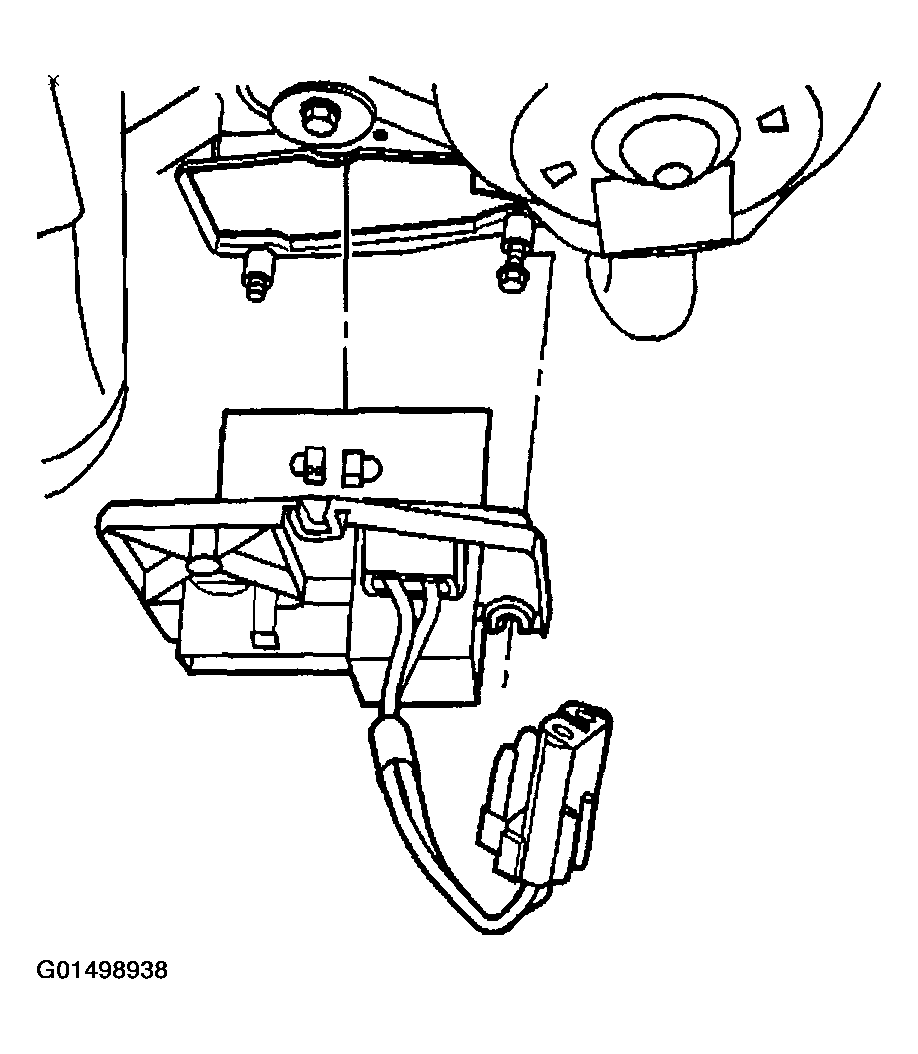

    Fig 1: Installing Blower Motor Connector
    G01498938Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the blower motor resistor assembly.
  4. Install the blower motor to the HVAC module assembly.
  5. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

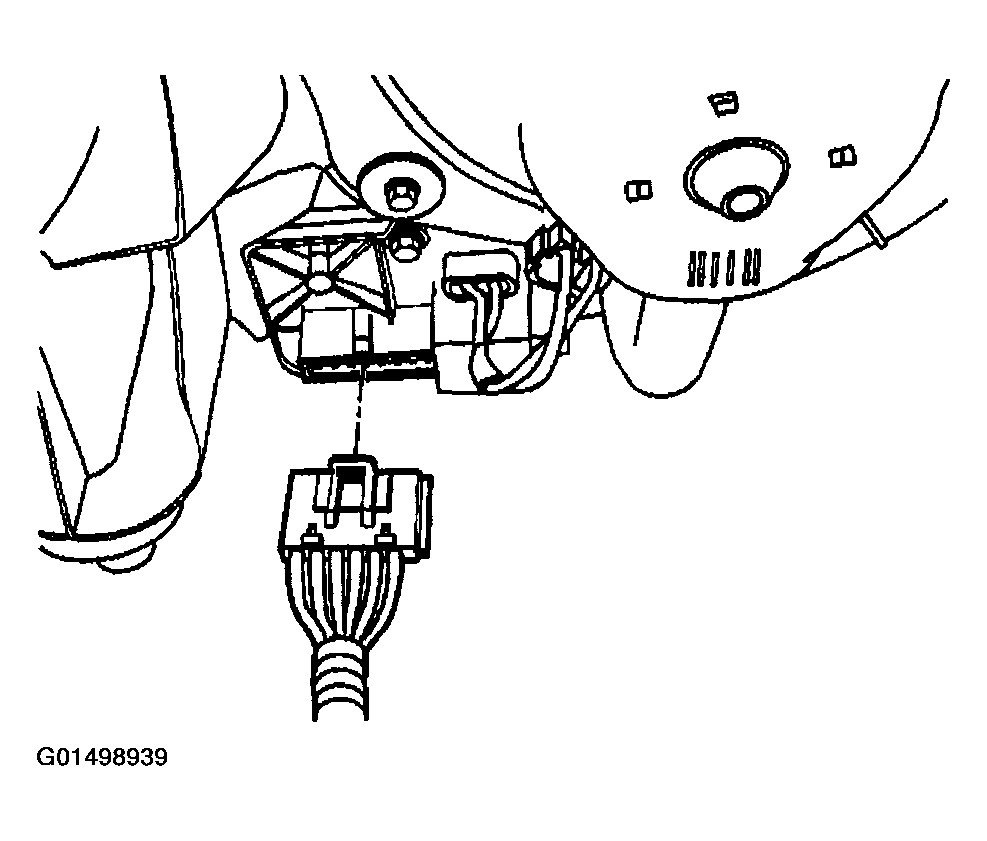

    Fig 2: Connecting Electrical Connector To Blower Motor Resistor
    G01498939Courtesy of GENERAL MOTORS CORP.
  6. Connect the blower motor electrical connector.
  7. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

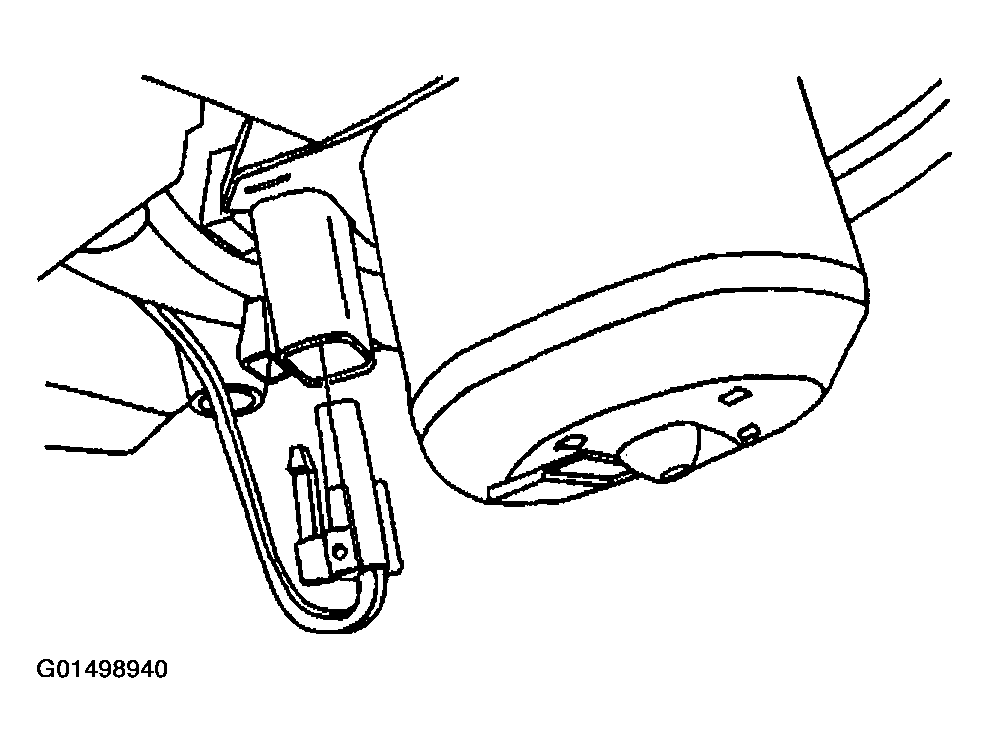

    Fig 3: Connecting Blower Motor Electrical Connector
    G01498940Courtesy of GENERAL MOTORS CORP.
