Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  2. Disconnect the electrical connector from the blower motor.
  3. Remove the blower motor mounting screws.

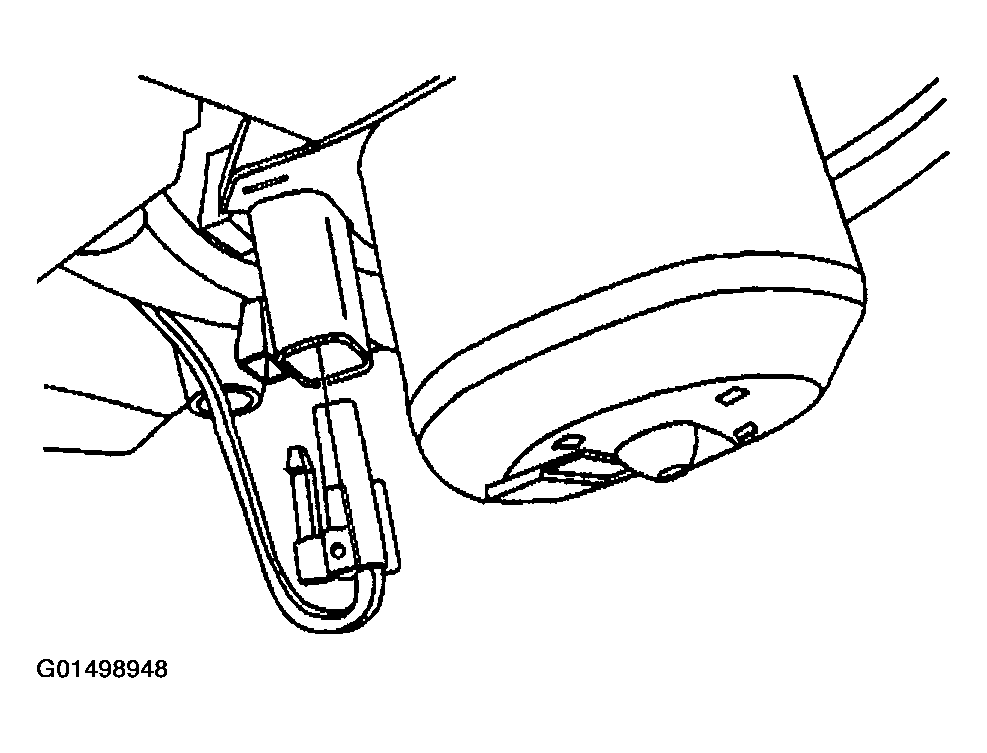

    Fig 1: Removing Blower Motor
    G01498948Courtesy of GENERAL MOTORS CORP.
  4. Remove the blower motor from the HVAC module assembly.

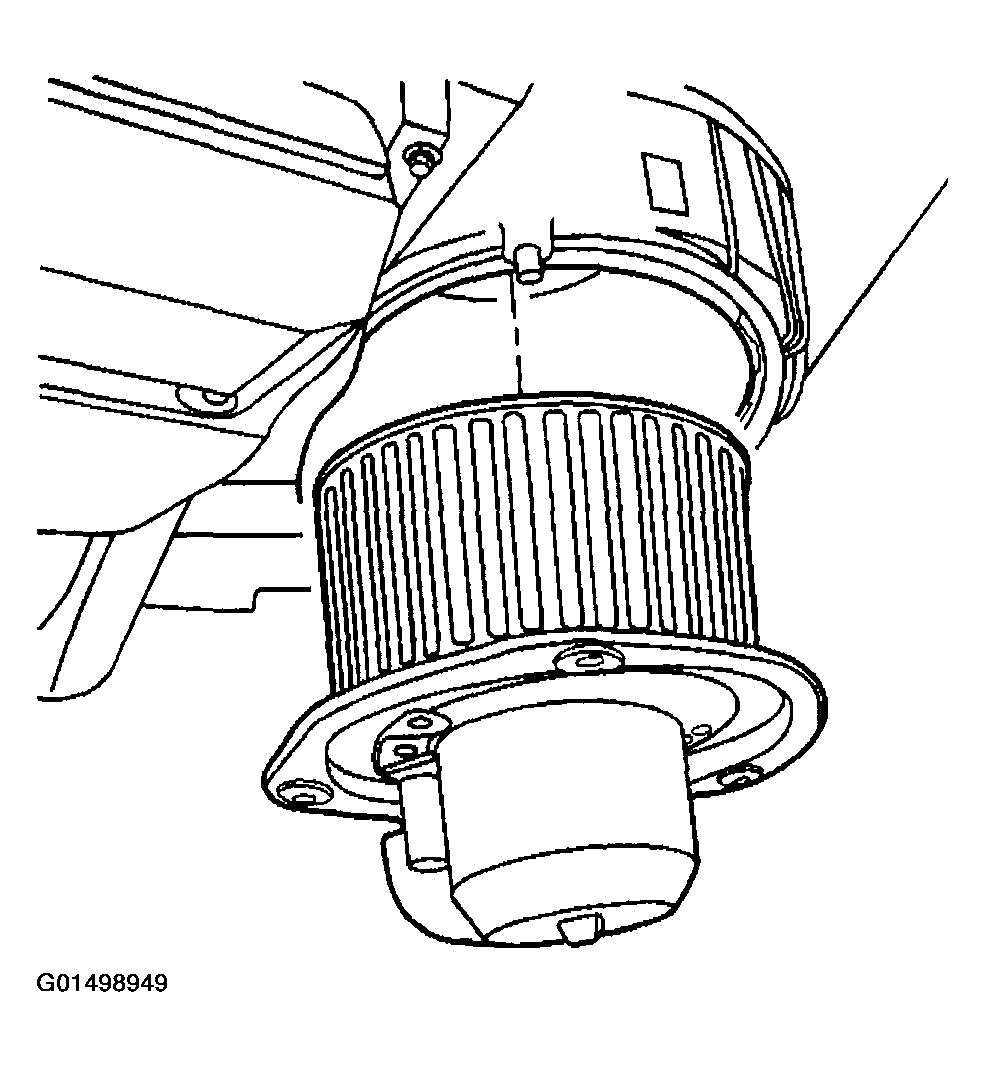

    Fig 2: Removing Blower Motor From HVAC Module Assembly.
    G01498949Courtesy of GENERAL MOTORS CORP.
