Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor to the HVAC module assembly.
  2. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

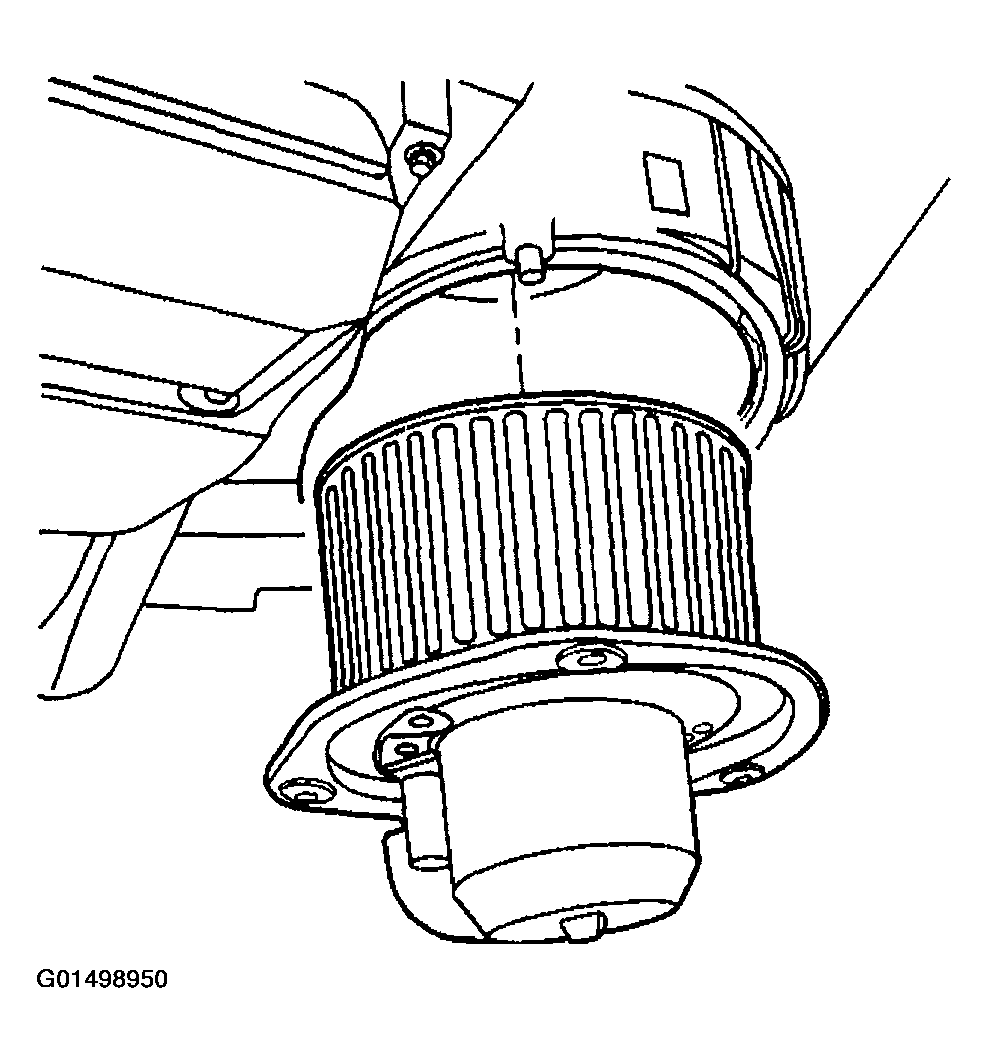

    Fig 1: Installing Blower Motor To HVAC Module Assembly.
    G01498950Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the blower motor.
  4. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

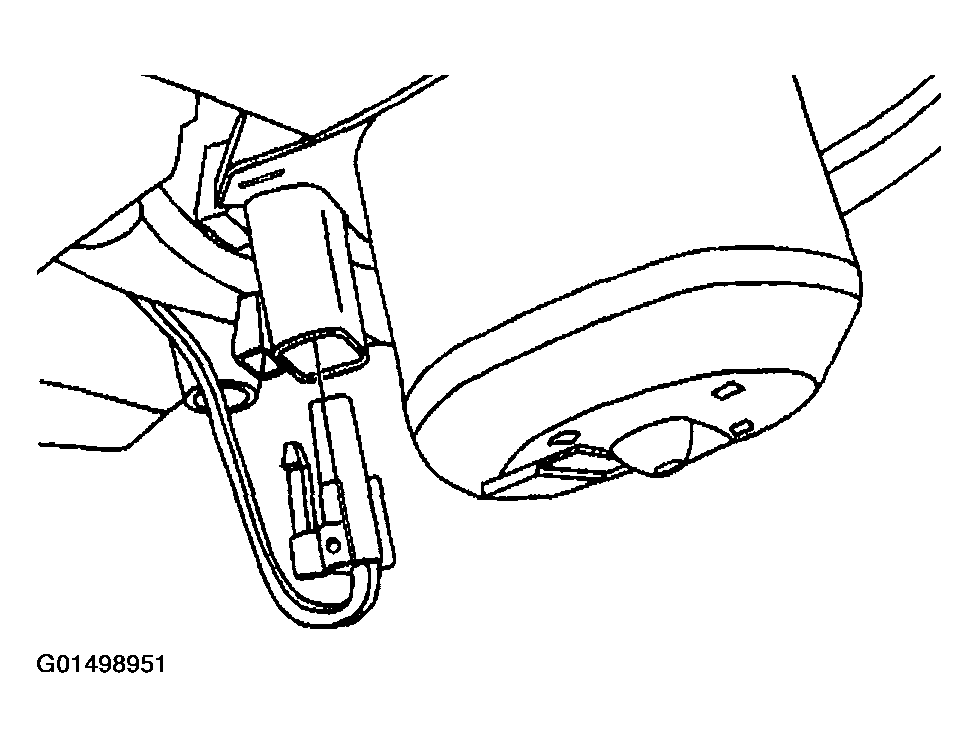

    Fig 2: Connect Electrical Connector To Blower Motor./caption>
    G01498951Courtesy of GENERAL MOTORS CORP.
