Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT .
  2. Remove the center air distribution duct nuts.
  3. Remove the center air distribution duct from the I/P carrier.

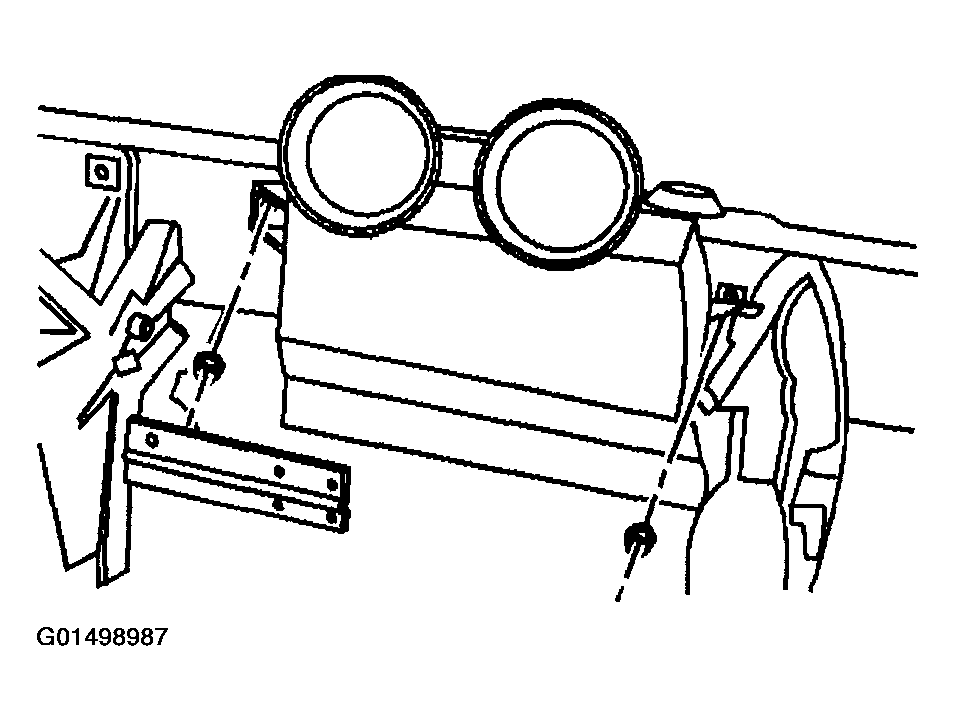

    Fig 1: Replacing Air Outlet Center
    G01498987Courtesy of GENERAL MOTORS CORP.
