Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the floor console bracket. Refer to BRACKET REPLACEMENT -- CONSOLE FLOOR .
  3. Lift and reposition the front carpet.
  4. Remove the center floor duct nuts.
  5. Separate the center floor duct from the HVAC module.
  6. Separate the center floor duct from the rear floor duct.

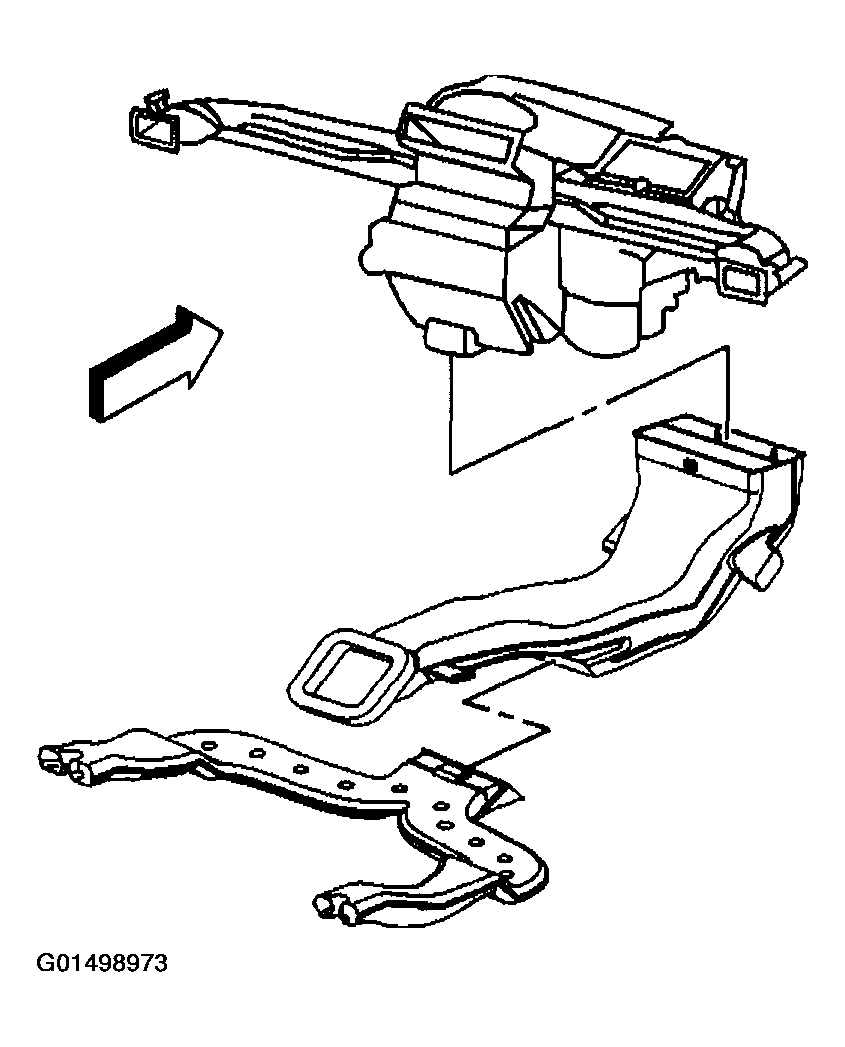

    Fig 1: Replacing Air Outlet Center Floor
    G01498973Courtesy of GENERAL MOTORS CORP.
  7. Remove the center floor duct.
    Fig 2: Removing Center Floor Duct
    G01498974Courtesy of GENERAL MOTORS CORP.
