Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: The defroster door must be closed to allow clearance during defroster duct removal.

Set the HVAC controls in the vent setting to close the defroster door.
Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
Remove the side window defogger ducts from the defroster outlet duct.

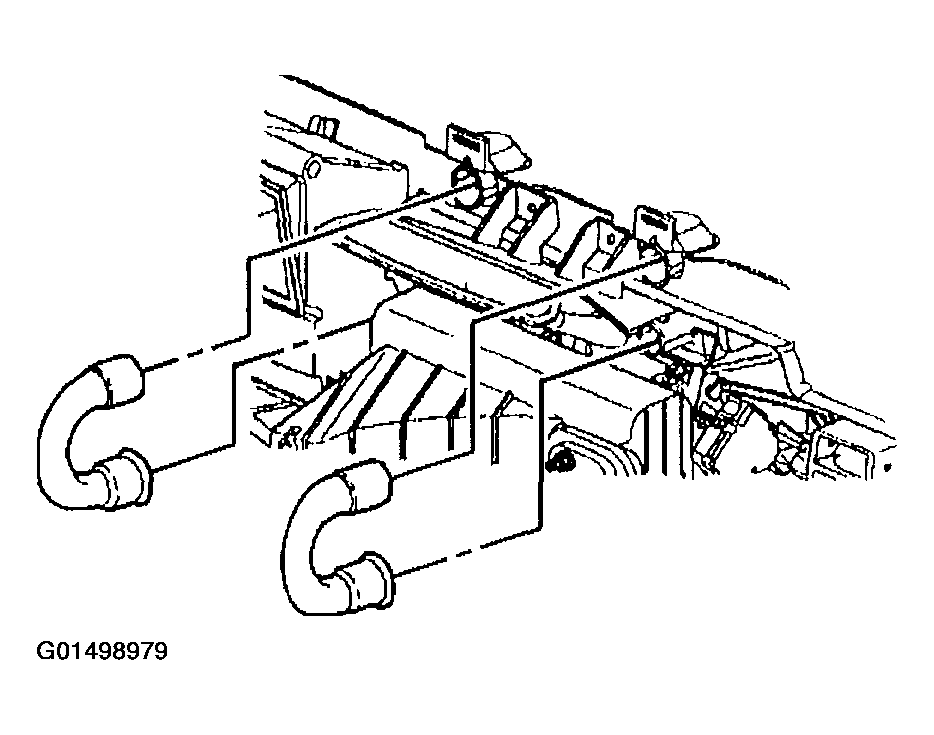

Fig 1: Removing Air Outlet Duct Defroster
Courtesy of GENERAL MOTORS CORP.
Remove the defroster outlet duct retaining clips using the J 38778 .
Remove the defroster outlet duct from the I/P carrier.

Fig 2: Removing Defroster Outlet Duct Retaining Clips
Courtesy of GENERAL MOTORS CORP.
