Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the air baffle bolts.
  3. Remove the air baffle.

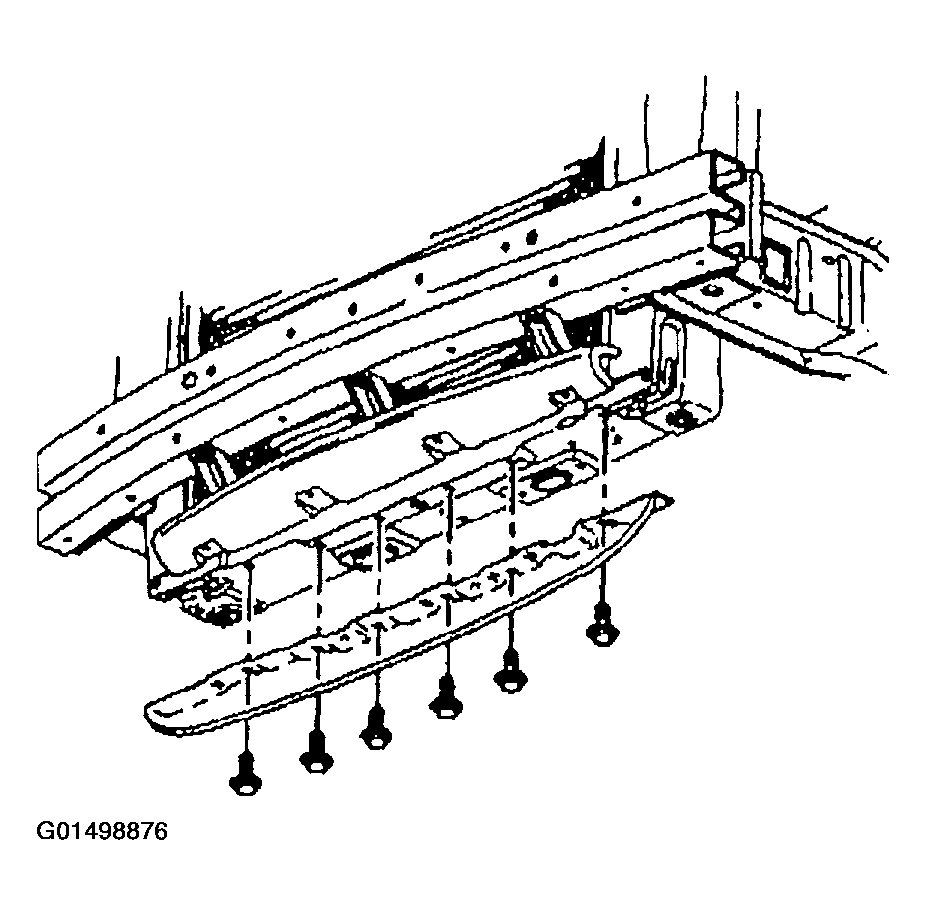

    Fig 1: Removing Procedure Air Baffle Bolts
    G01498876Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the A/C refrigerant pressure sensor electrical connector.
  5. Remove the A/C refrigerant pressure sensor from the evaporator inlet tube.

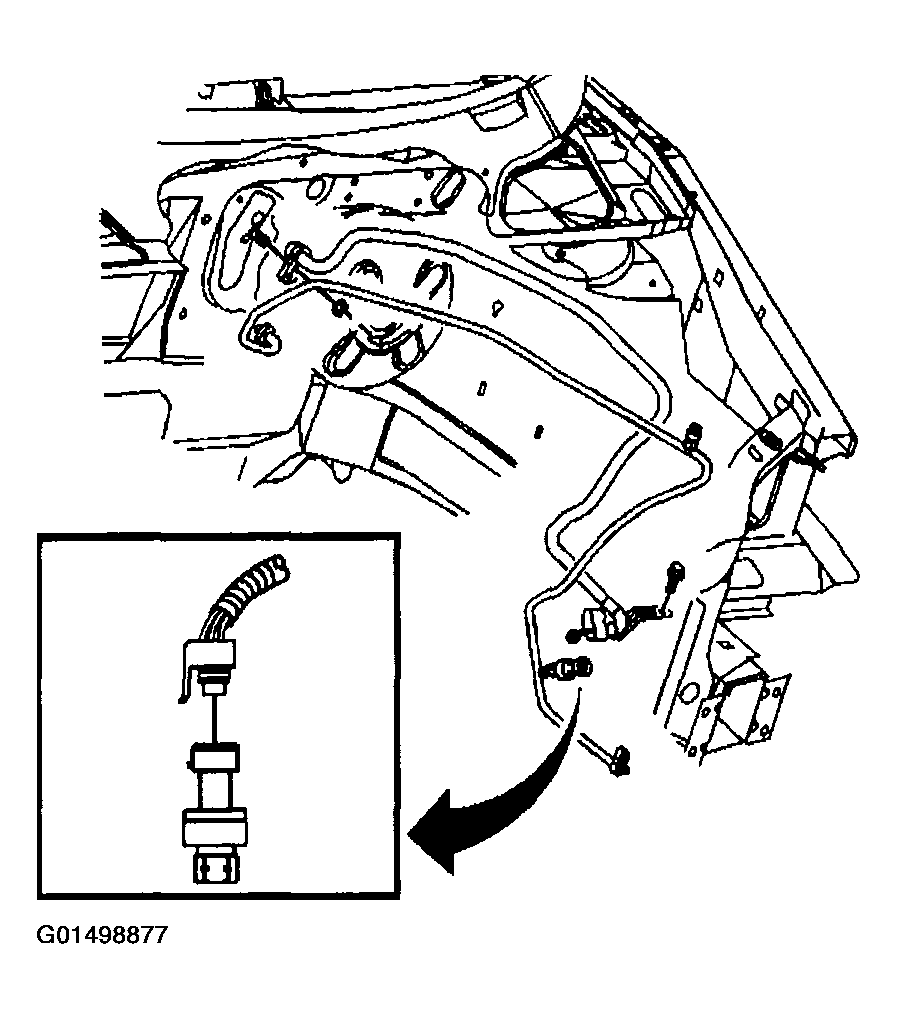

    Fig 2: Disconnecting A/C Refrigerant Pressure Sensor Electrical Connector
    G01498877Courtesy of GENERAL MOTORS CORP.
