Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw from the front of the rocker panel molding.
  2. Remove the top edge of the rocker panel molding by pulling off to release the push-in retainers.
  3. Release the push-in retainers from the lower rocker panel molding using a small flat-bladed tool inserted between the rocker panel molding and the retainer.
  4. Remove the rocker panel molding from the rocker panel.

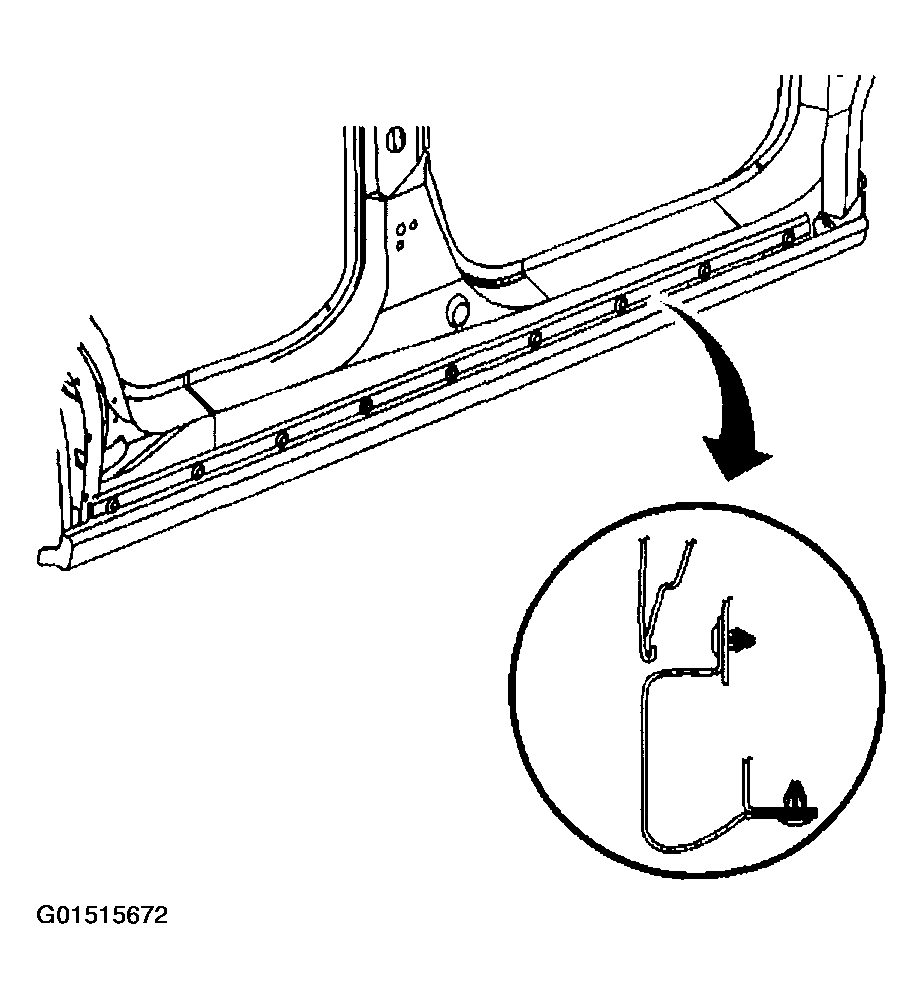

    Fig 1: Removing Screw From Front Of Rocker Panel Molding
    G01515672Courtesy of GENERAL MOTORS CORP.
