Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear door.
Remove the screws from the rear edge of the rear door body side molding.

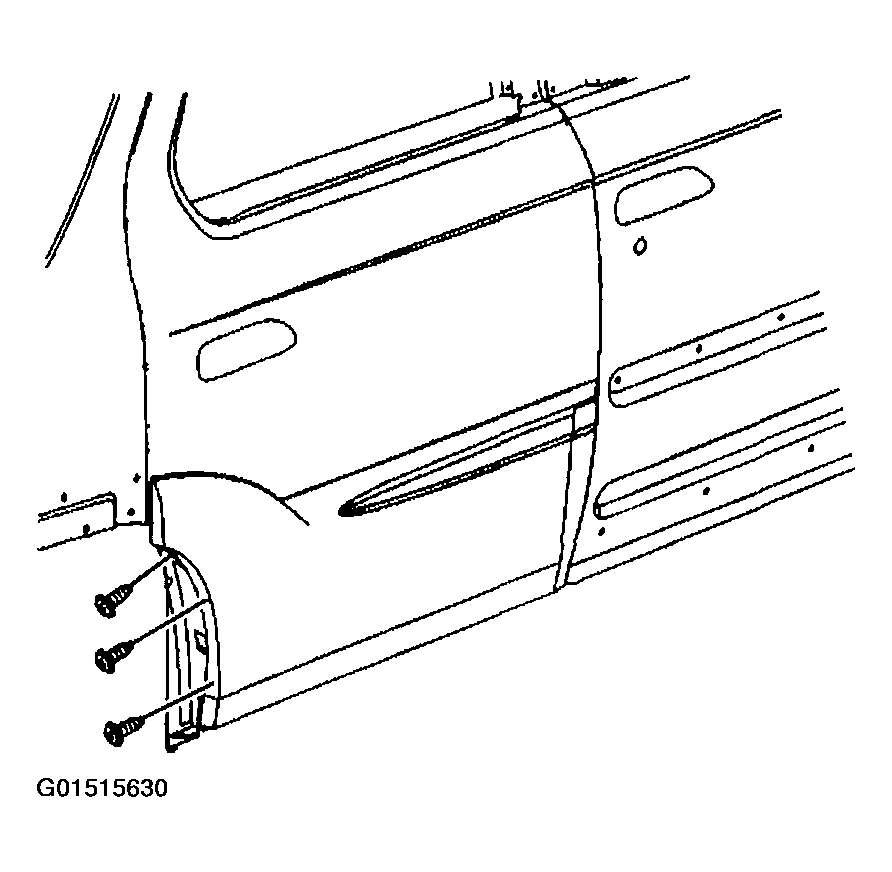

Fig 1: Removing Screws From Rear Edge Of Rear Door Body Side Molding
Courtesy of GENERAL MOTORS CORP.
Use a heat gun J 25070.

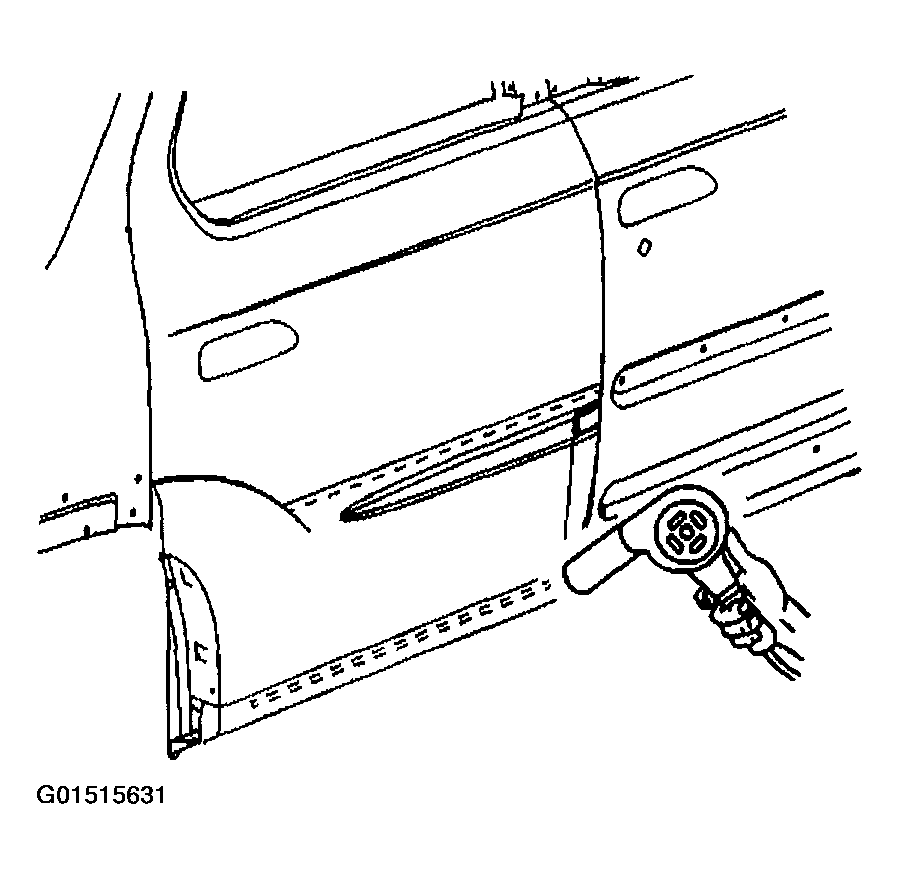

Fig 2: Heating Rear Door Body Side Molding
Courtesy of GENERAL MOTORS CORP.
Use a plastic, flat-bladed tool to remove the upper edge of the rear door body side molding from the surface.

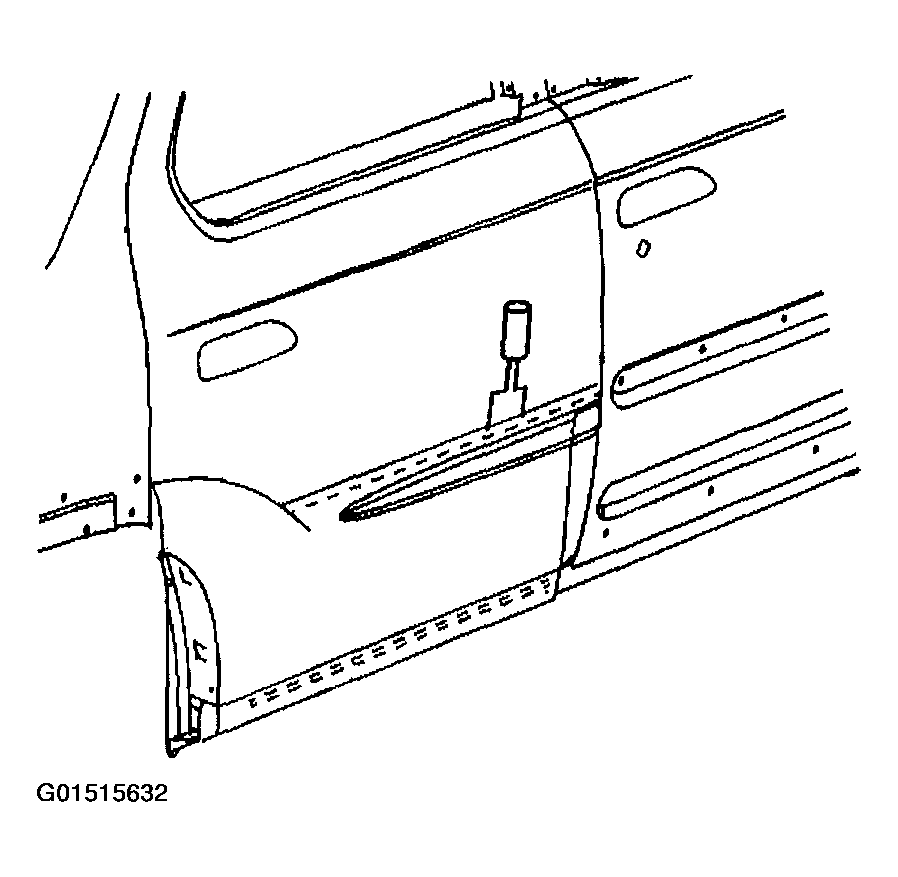

Fig 3: Removing Upper Edge Of Rear Door Body Side Molding From Surface
Courtesy of GENERAL MOTORS CORP.
Pull the upper edge of the rear door body side molding out, to release the retainers.
Remove the rear door body side molding from the door.

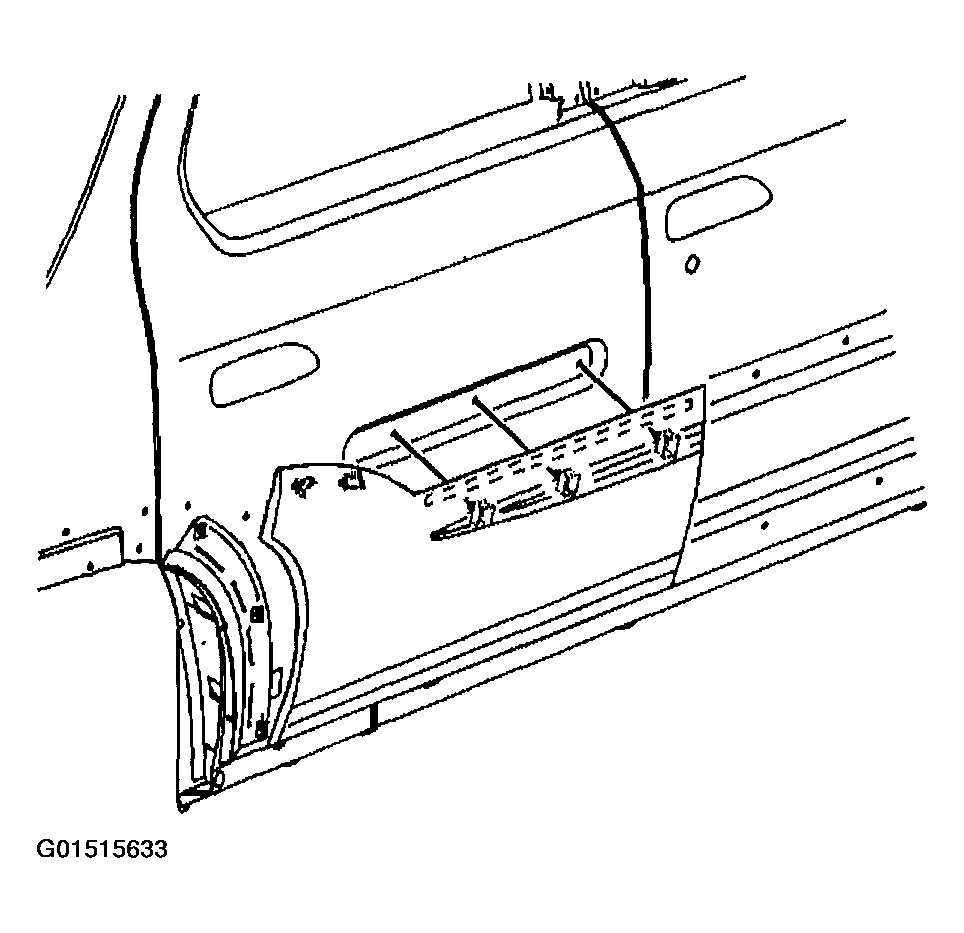

Fig 4: Removing Rear Door Body Side Molding From Door
Courtesy of GENERAL MOTORS CORP.
Drill a small hole into the center of the center retainer pins of the lower support retainer.

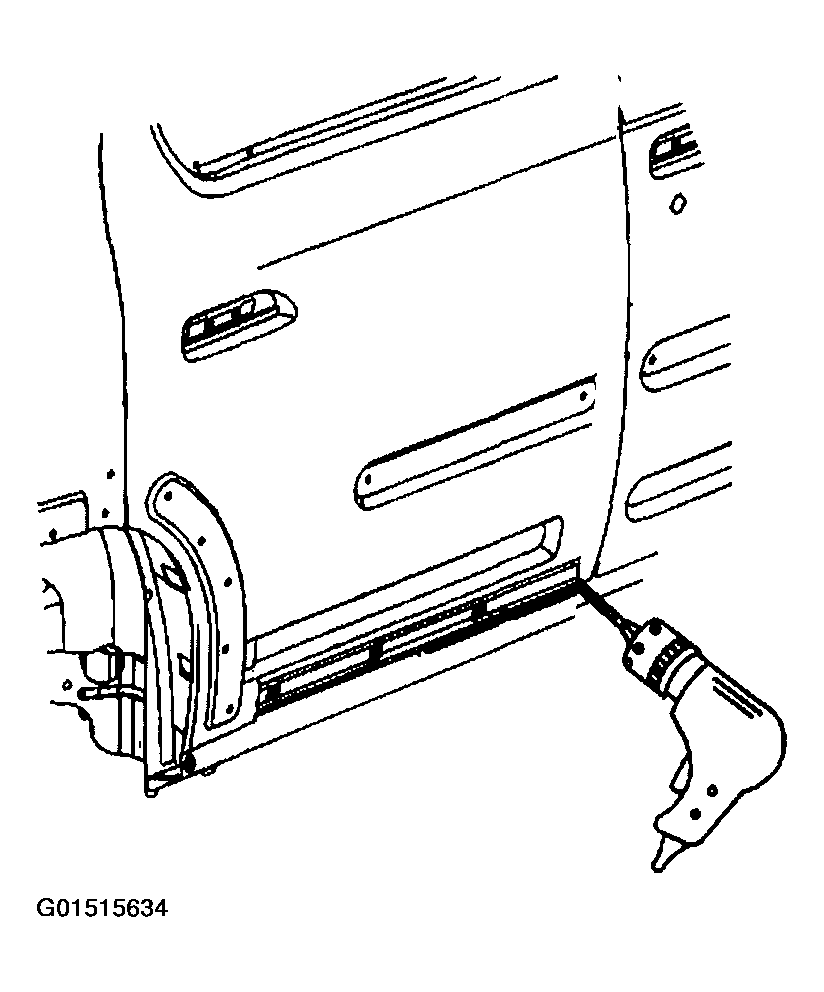

Fig 5: Drilling Hole Into Center Of Center Retainer Pins Of Lower Support Retainer
Courtesy of GENERAL MOTORS CORP.
Install a small screw into the hole in the center retainer pin.

Fig 6: Installing Screw Into Hole In Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.
Remove the center retainer pin using small pliers and pulling out the center retainer pin.

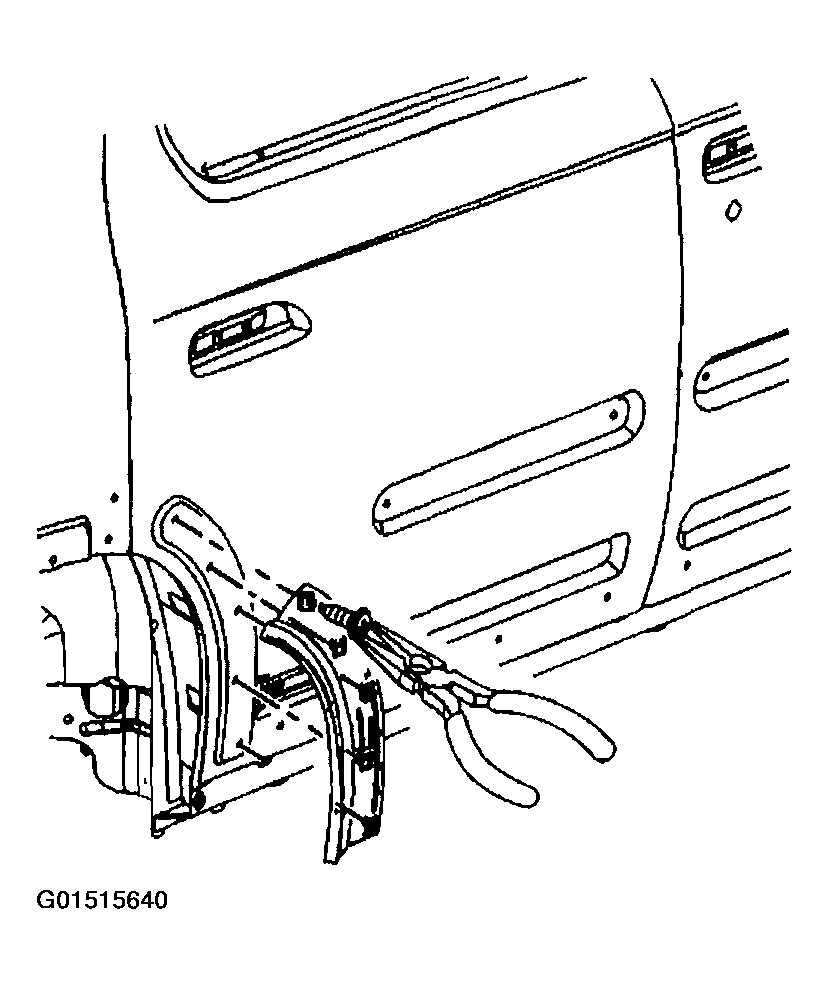

Fig 7: Removing Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.
Remove the rear door body side molding lower support from the door.

Fig 8: Removing Rear Door Body Side Molding Lower Support
Courtesy of GENERAL MOTORS CORP.
Drill a small hole into the center of the center retainer pins of the rear support retainer.

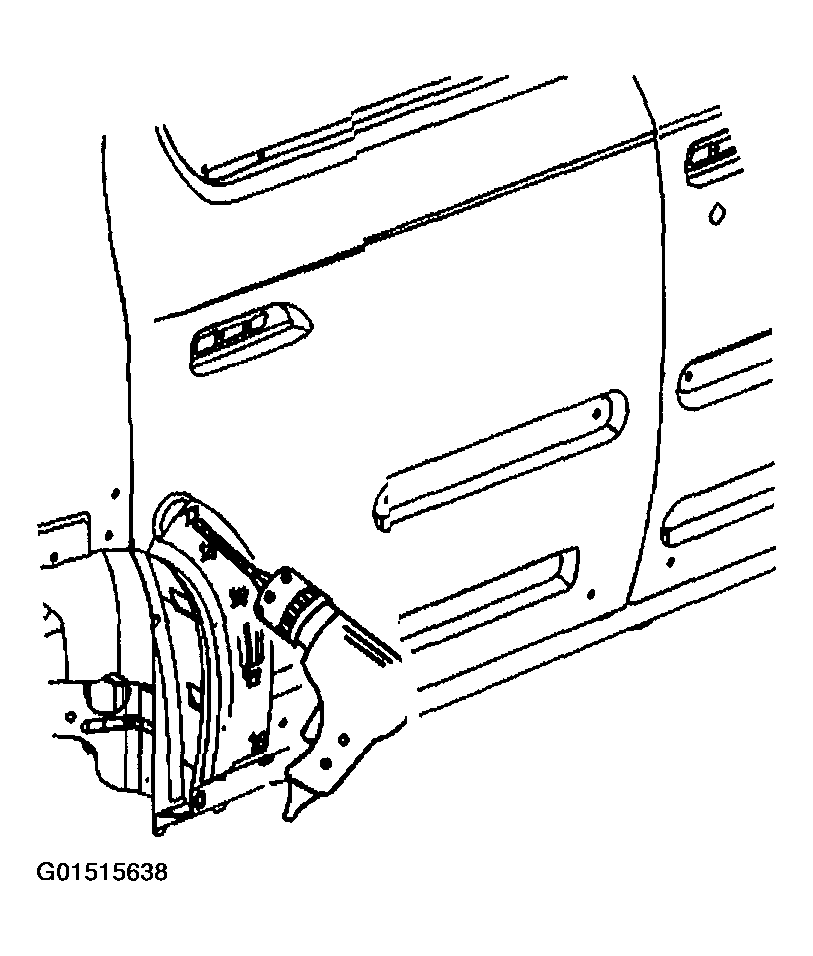

Fig 9: Drilling Hole Into Center Of Center Retainer Pins Of Rear Support Retainer
Courtesy of GENERAL MOTORS CORP.
Install a small screw into the hole in the center retainer pin.

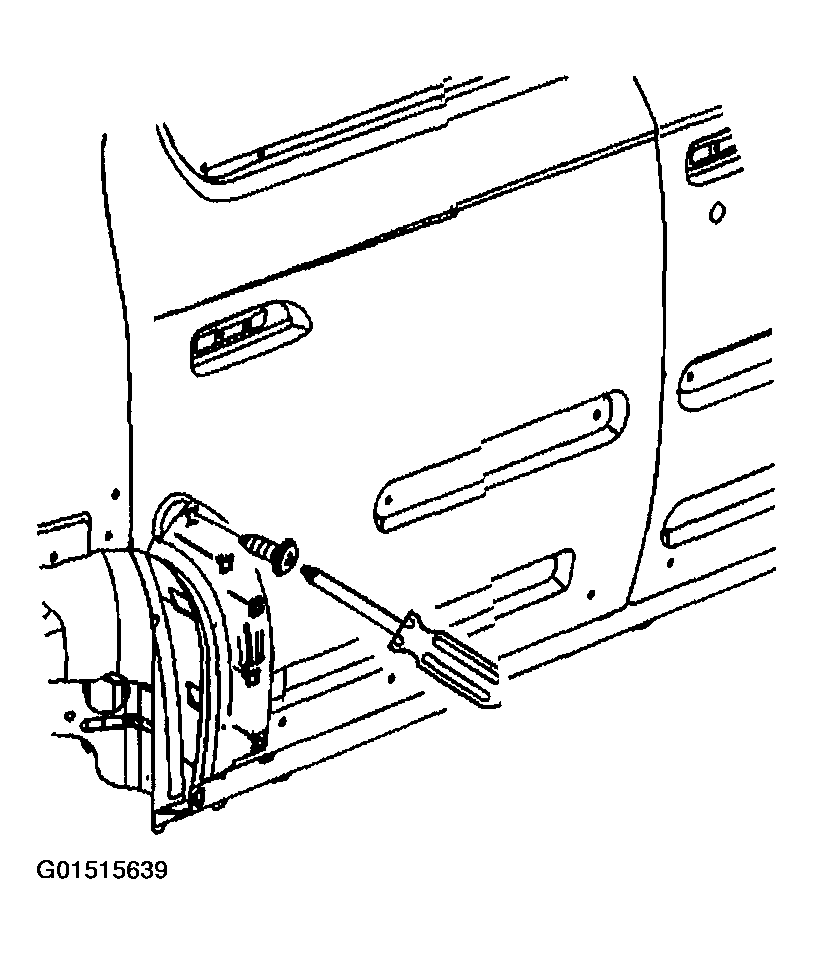

Fig 10: Installing Screw Into Hole In Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.
Remove the center retainer pin using small pliers and pulling out the center retainer pin.

Fig 11: Removing Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.
Remove the rear door body side molding rear support from the door.

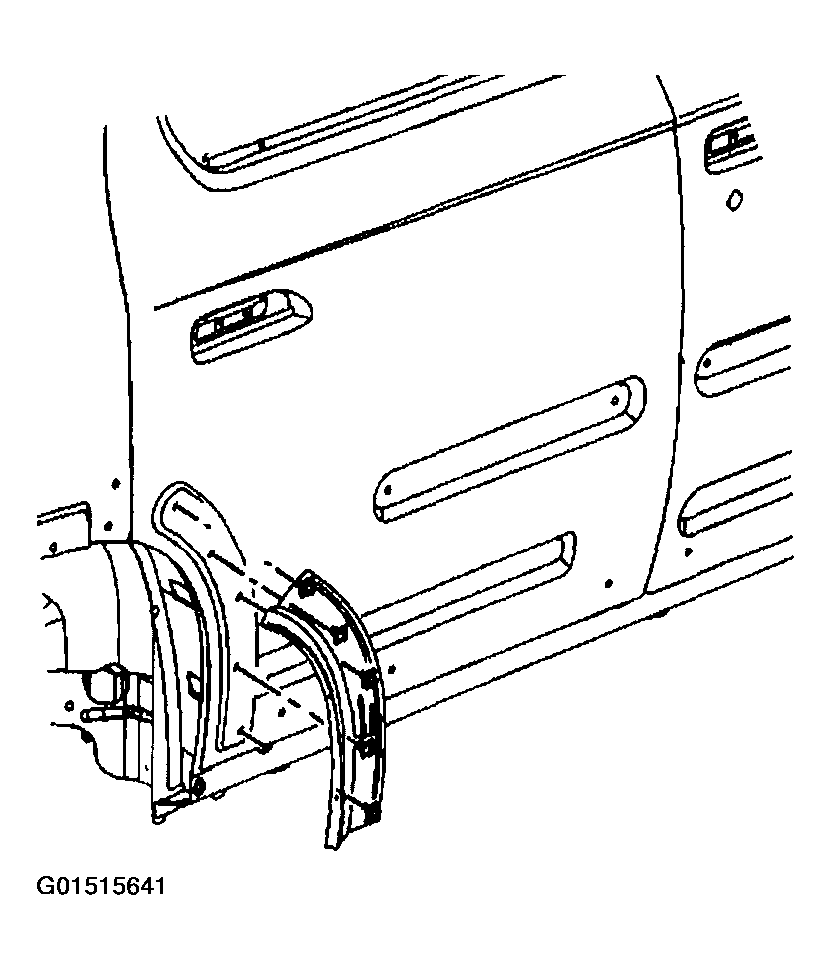

Fig 12: Removing Rear Door Body Side Molding Rear Support
Courtesy of GENERAL MOTORS CORP.

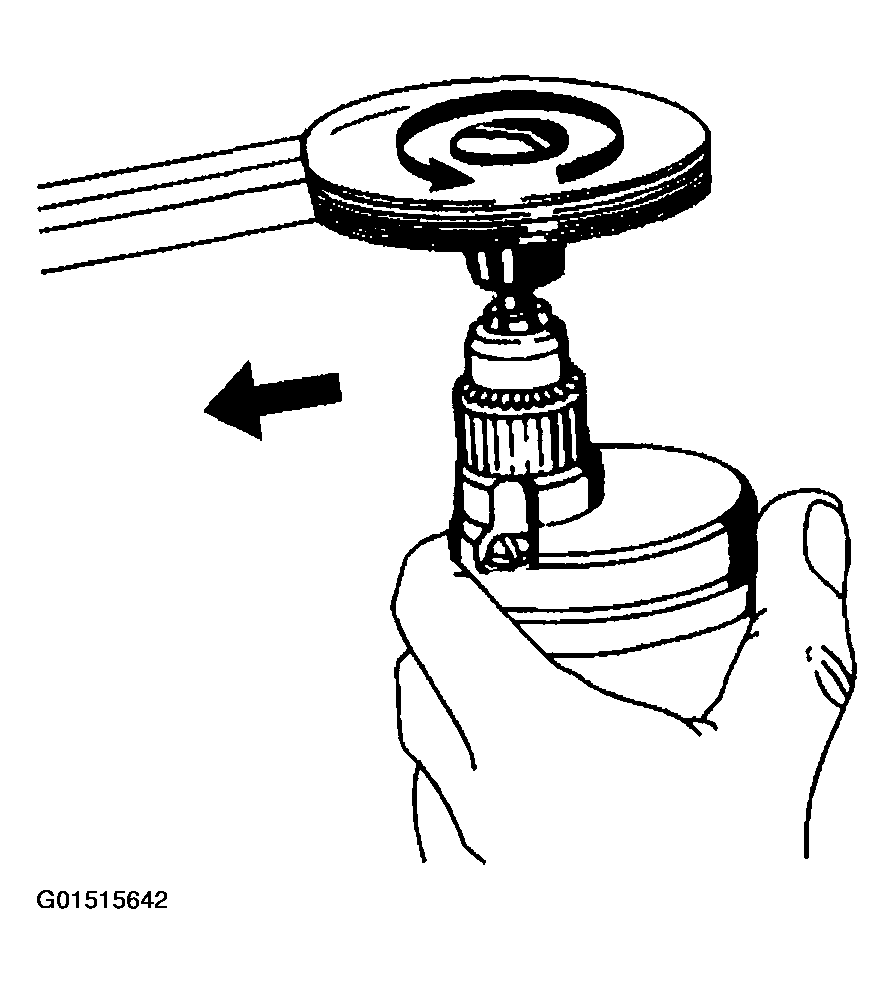

Remove all adhesive from the rear door body panel using 3M™ Scotch Brite molding adhesive remover disk 3M™ (P/N 07501 or equivalent).
Clean the rear door panel surface using Varnish Makers and Painters (VMP) naphtha and allow to air dry.

Fig 13: Removing Adhesive From Rear Door Body Panel
Courtesy of GENERAL MOTORS CORP.
