Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the gate upper molding to the lift gate.
  2. Install the lift gate upper molding screws.

    Tighten

    Tighten the screws to 2.0 N.m (18 lb in).

  3. Install the lift gate lower molding. Refer to MOLDING REPLACEMENT - LIFT GATE LOWER  .
  4. Install the lift gate applique. Refer to LIFT GATE APPLIQUE REPLACEMENT .
  5. Install the lift gate handle. Refer to HANDLE REPLACEMENT -- END GATE .

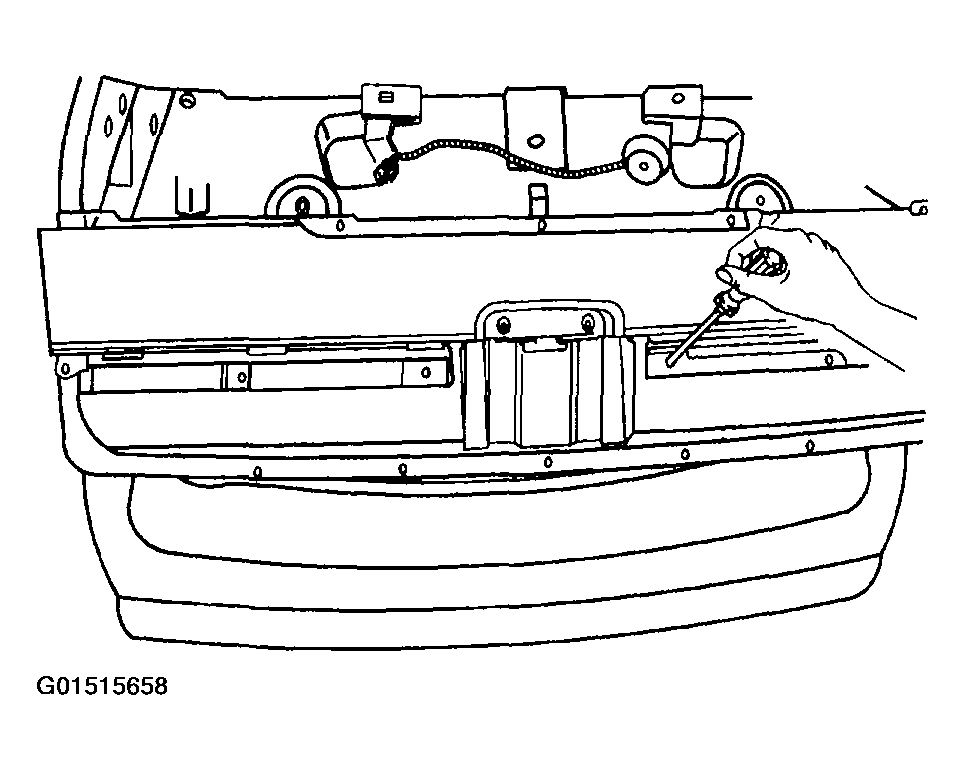

    Fig 1: Installing Lift Gate Upper Molding
    G01515658Courtesy of GENERAL MOTORS CORP.
