Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the molding to the fender.
  2. Align the push-in retainers to the holes in the fender.
  3. Press the molding to the fender until all of the retainers are fully seated.
    Fig 1: Positioning Molding To Fender
    G01515600Courtesy of GENERAL MOTORS CORP.
  4. Install the screws to the front wheel opening molding.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Install the bolts to the corner of the front fascia. Refer to FASCIA REPLACEMENT -- FRONT BUMPER -- UPPER (AZTEK) or FASCIA REPLACEMENT -- FRONT BUMPER -- UPPER (RENDEZVOUS) .
  6. Install the front wheel liner. Refer to FRONT FENDER LINER REPLACEMENT .

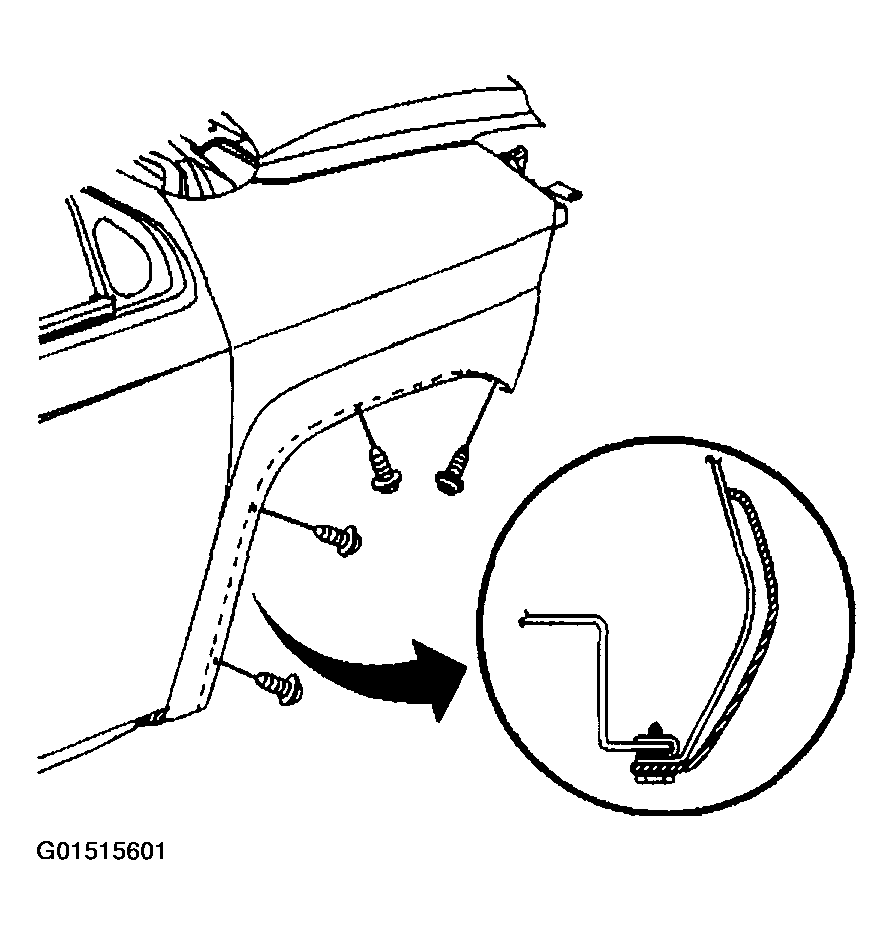

    Fig 2: Installing Screws To Front Wheel Opening Molding
    G01515601Courtesy of GENERAL MOTORS CORP.
