Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille from the front fascia. Refer to FASCIA GRILLE REPLACEMENT (AZTEK) or FASCIA GRILLE REPLACEMENT (RENDEZVOUS) .
  2. Remove the nut from the back of the grille emblem.

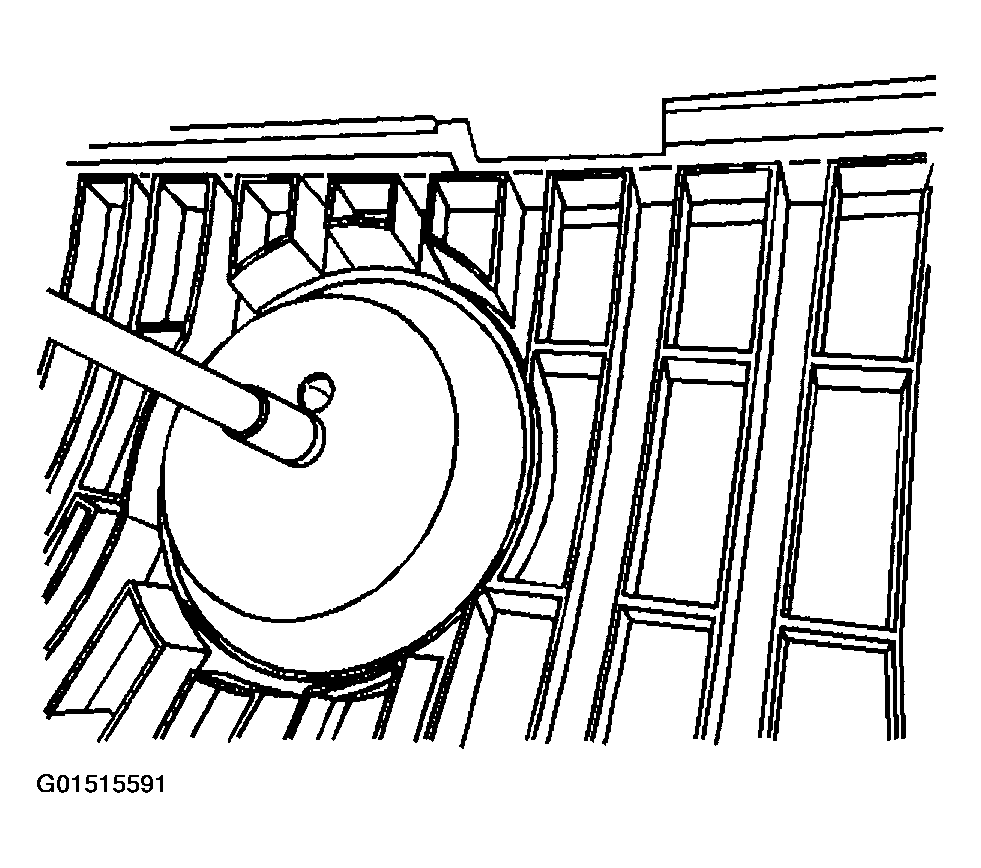

    Fig 1: Removing Nut From Back Of Grille Emblem
    G01515591Courtesy of GENERAL MOTORS CORP.
  3. Remove the emblem from the grille.

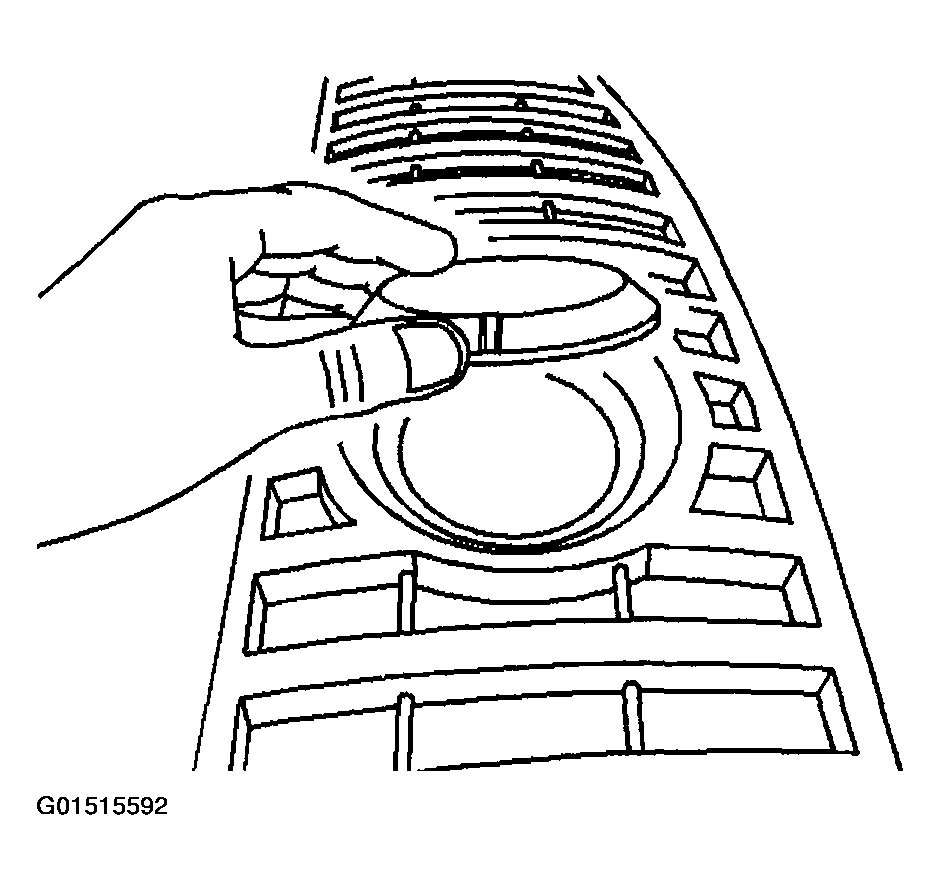

    Fig 2: Removing Emblem From Grille
    G01515592Courtesy of GENERAL MOTORS CORP.
