Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

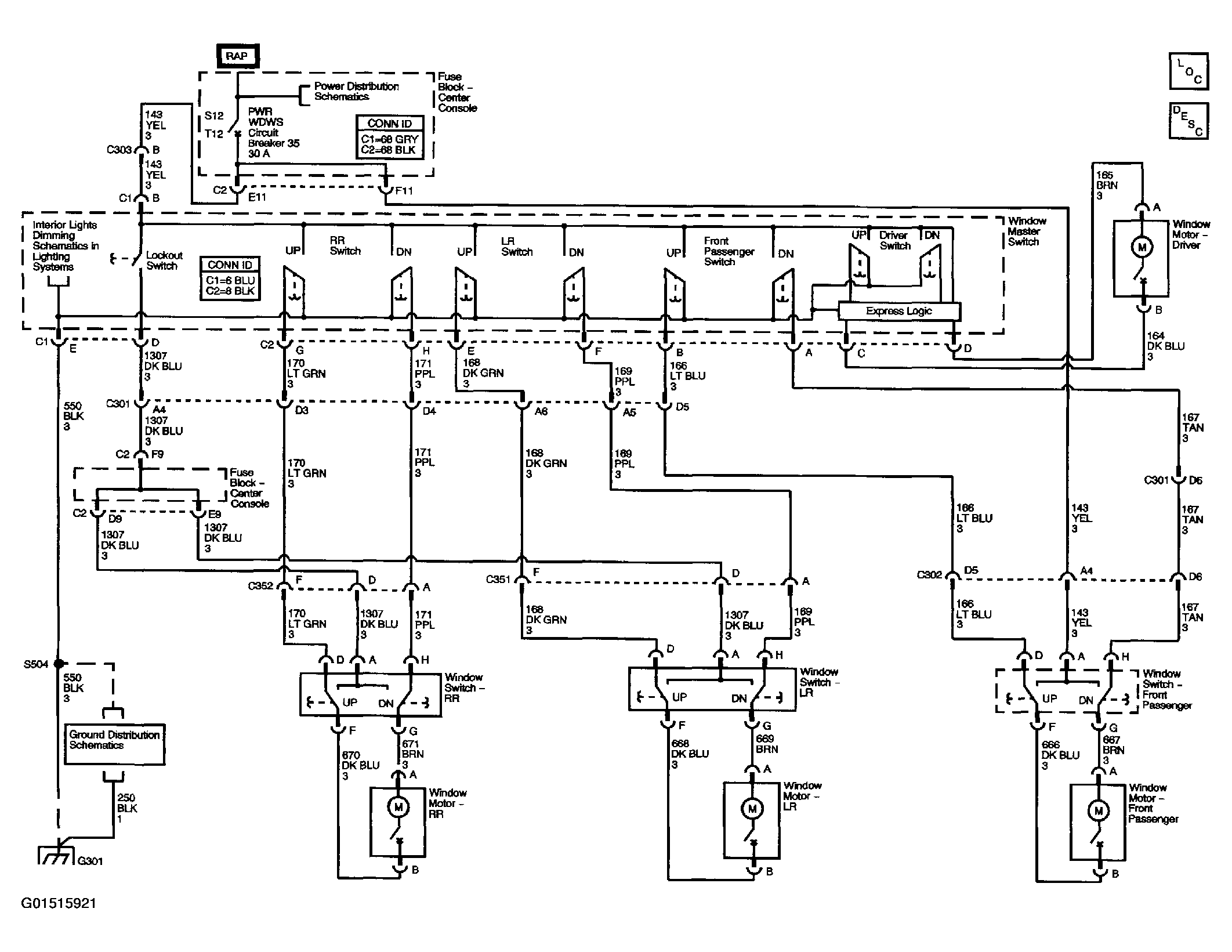

Fig 1: Power Window Schematics

Courtesy of GENERAL MOTORS CORP.

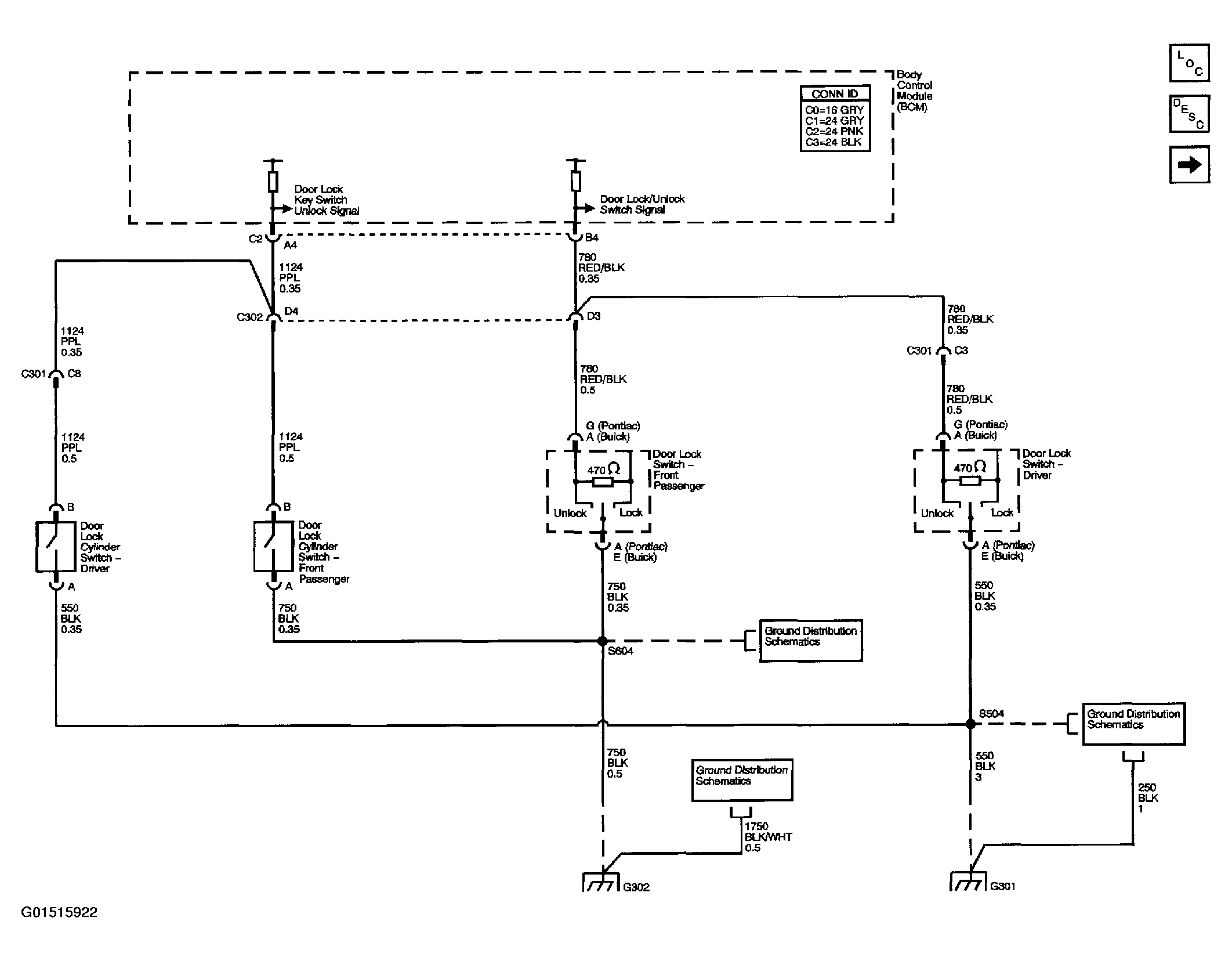

Fig 2: Door Lock/Indicator Schematics (Door Lock Switches)

Courtesy of GENERAL MOTORS CORP.

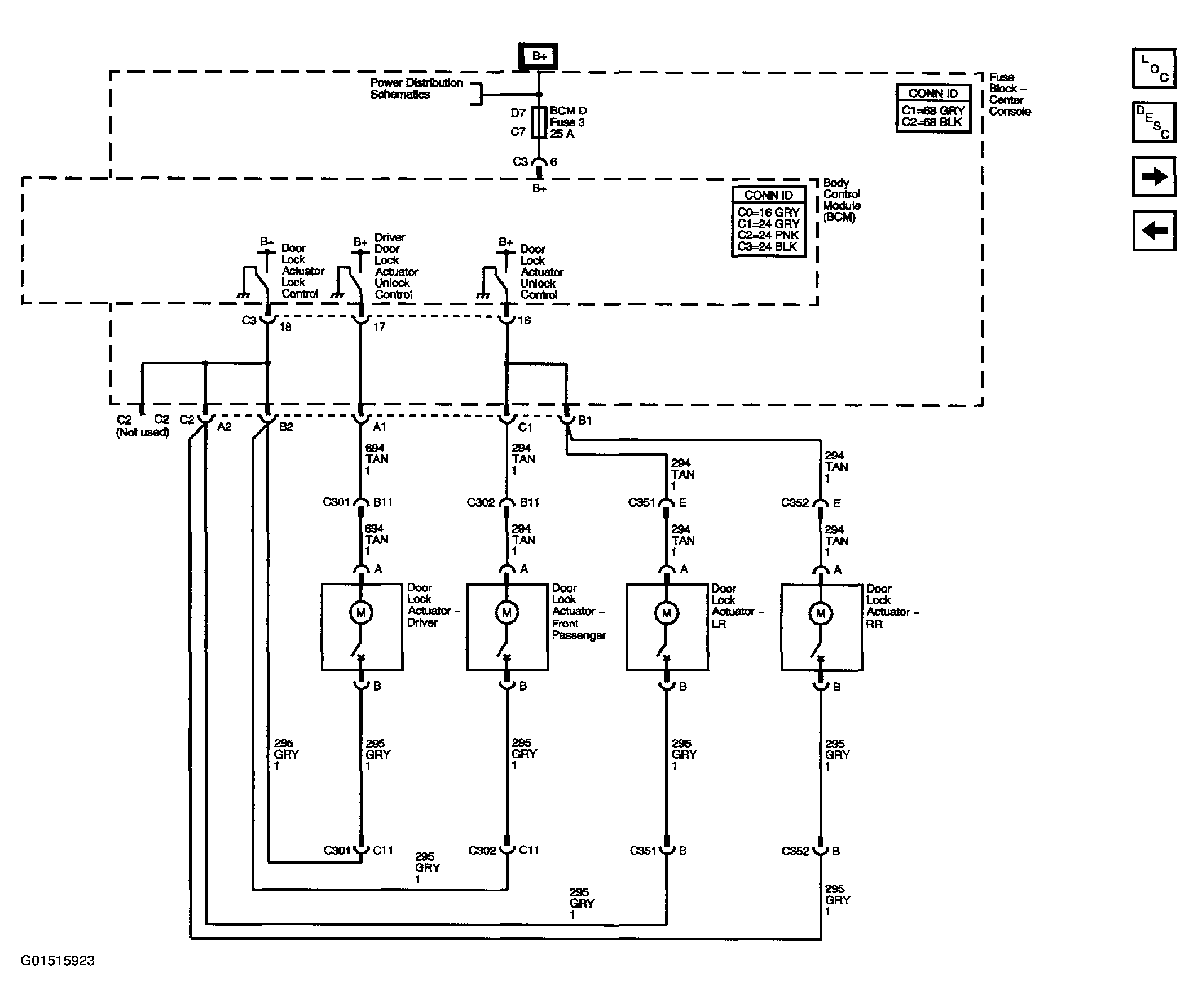

Fig 3: Door Lock/Indicator Schematics (Door Lock Actuators)

Courtesy of GENERAL MOTORS CORP.

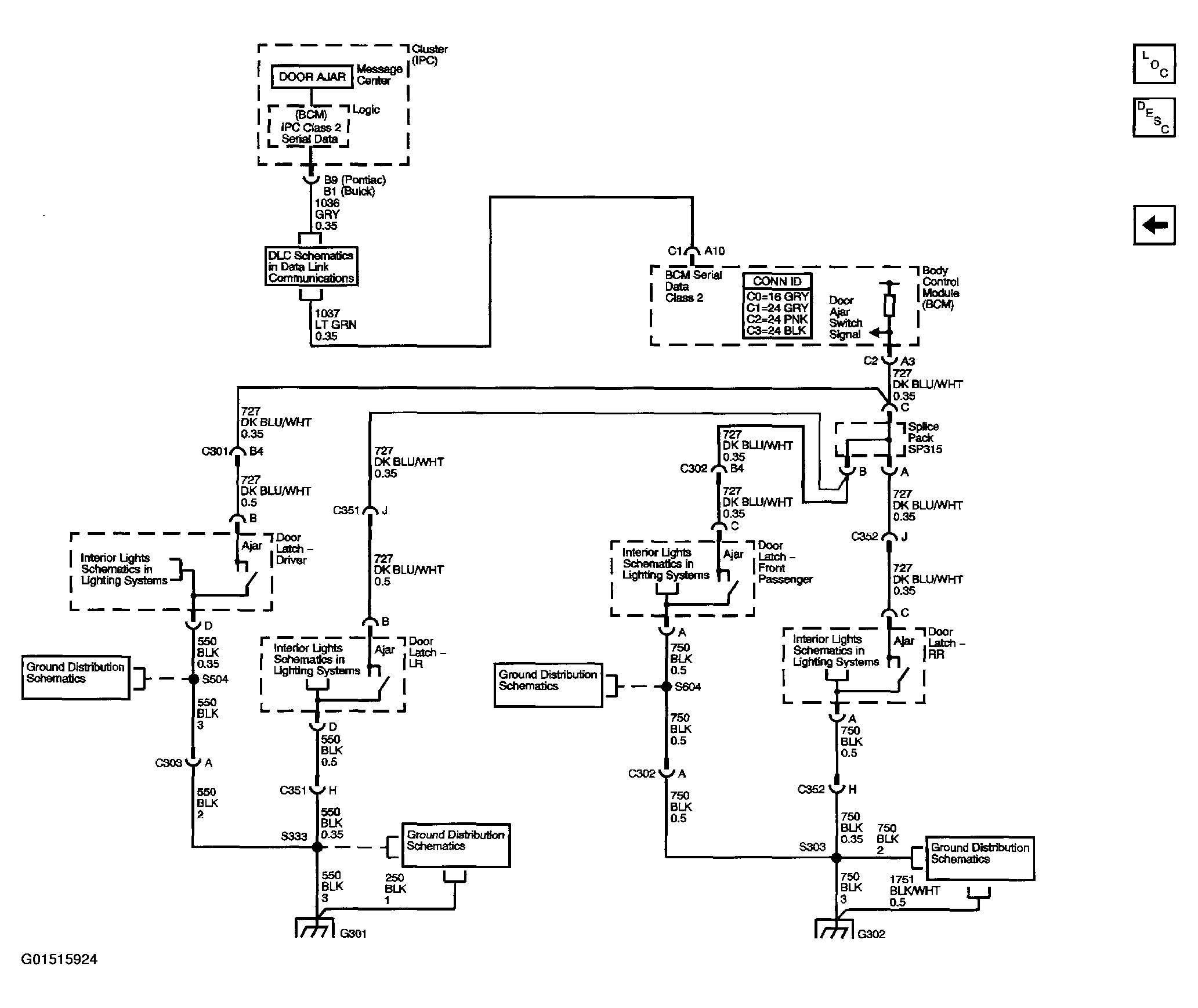

Fig 4: Door Lock/Indicator Schematics (Door Ajar Indicator)

Courtesy of GENERAL MOTORS CORP.

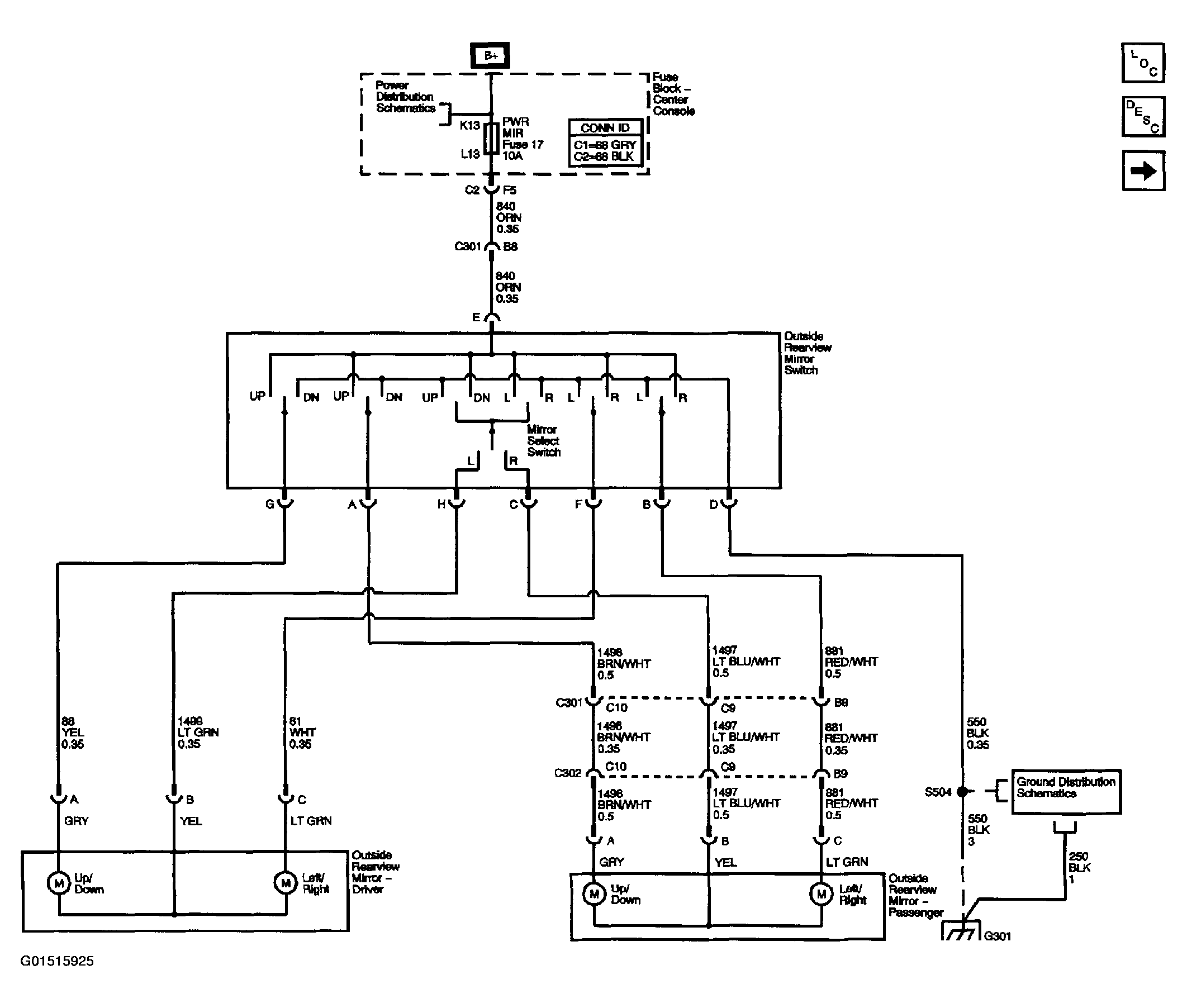

Fig 5: Outside Mirror Schematics (Base Mirrors)

Courtesy of GENERAL MOTORS CORP.

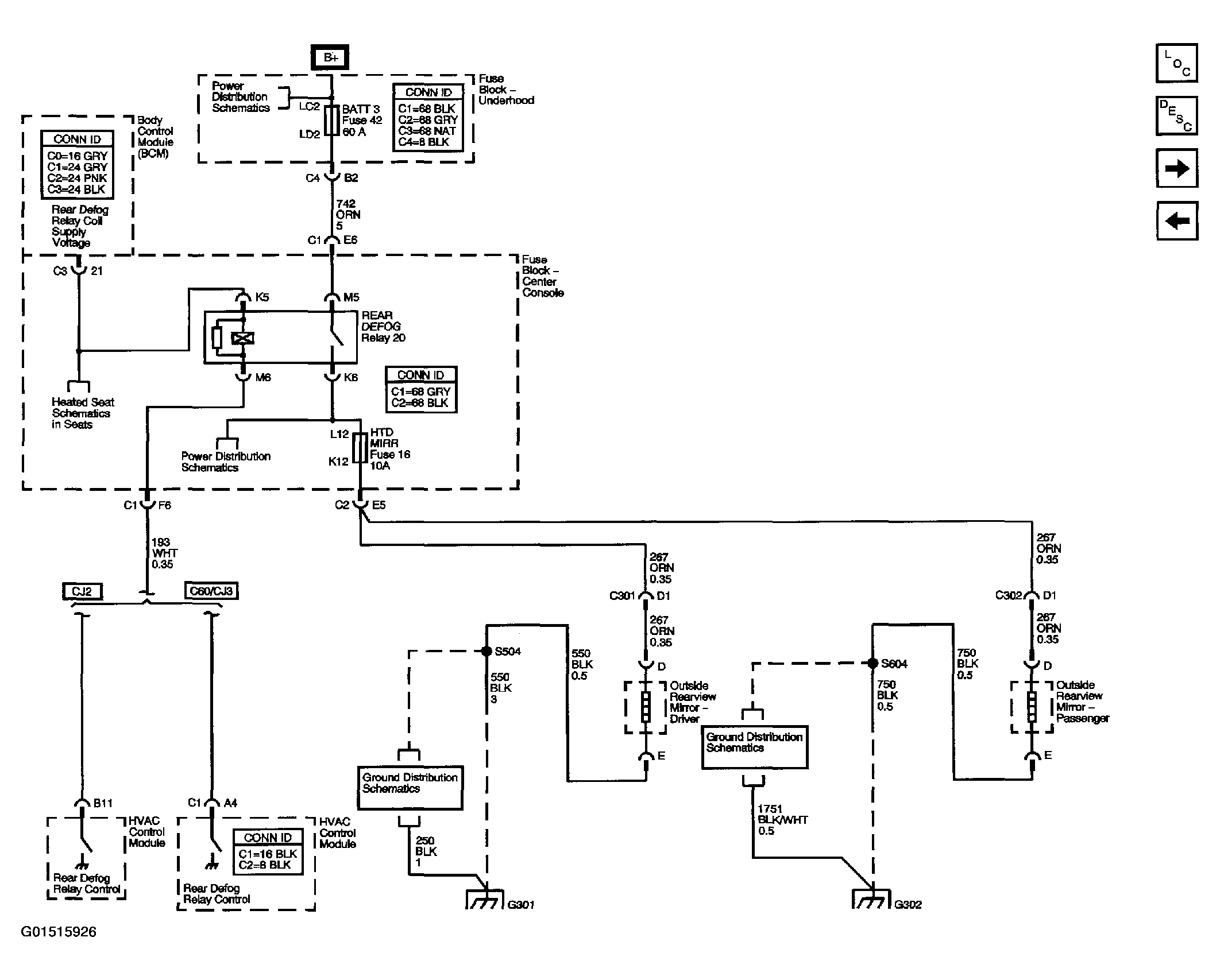

Fig 6: Outside Mirror Schematics (Heated Mirrors)

Courtesy of GENERAL MOTORS CORP.

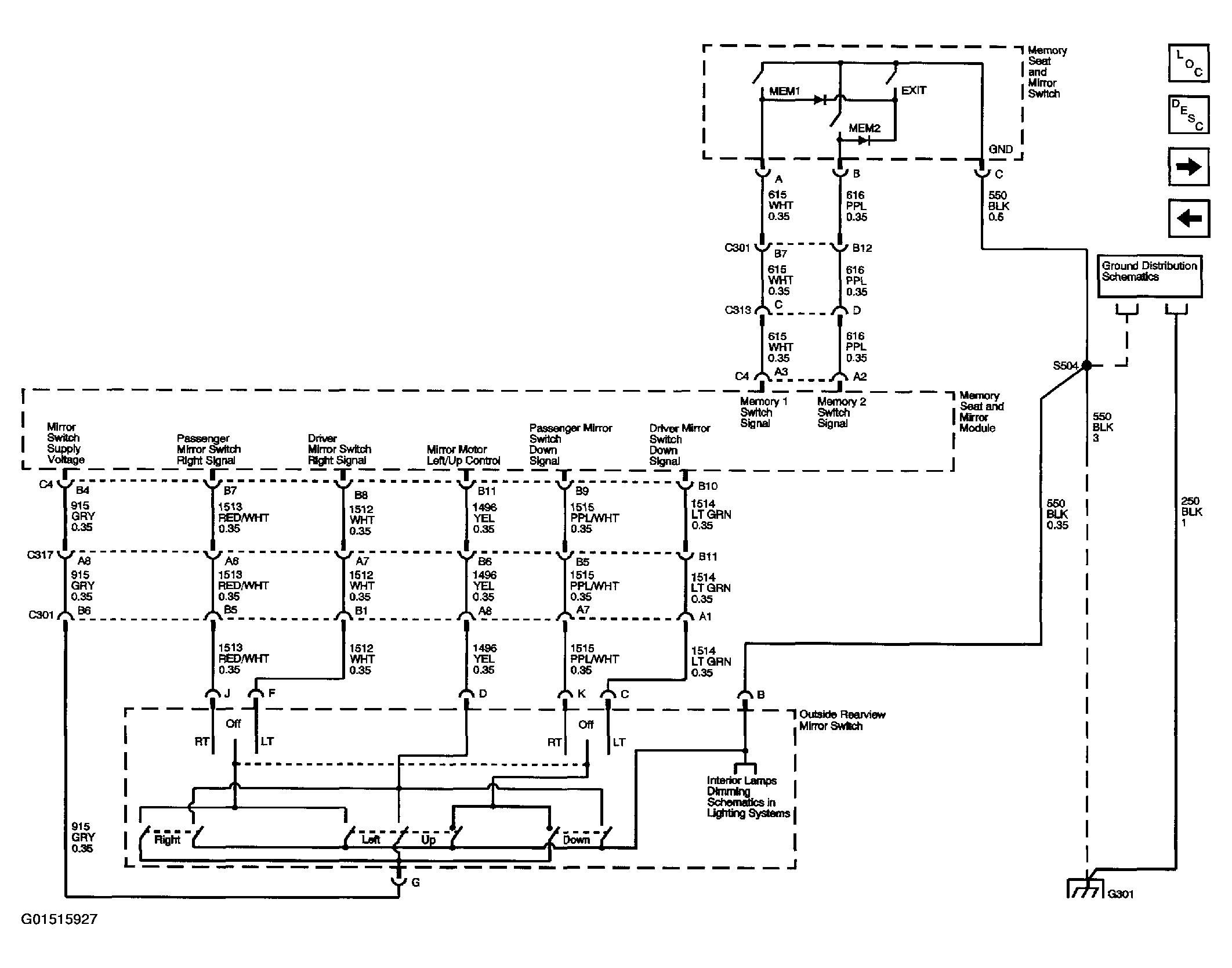

Fig 7: Outside Mirror Schematics (Memory Mirrors - Power, Ground And Switches)

Courtesy of GENERAL MOTORS CORP.

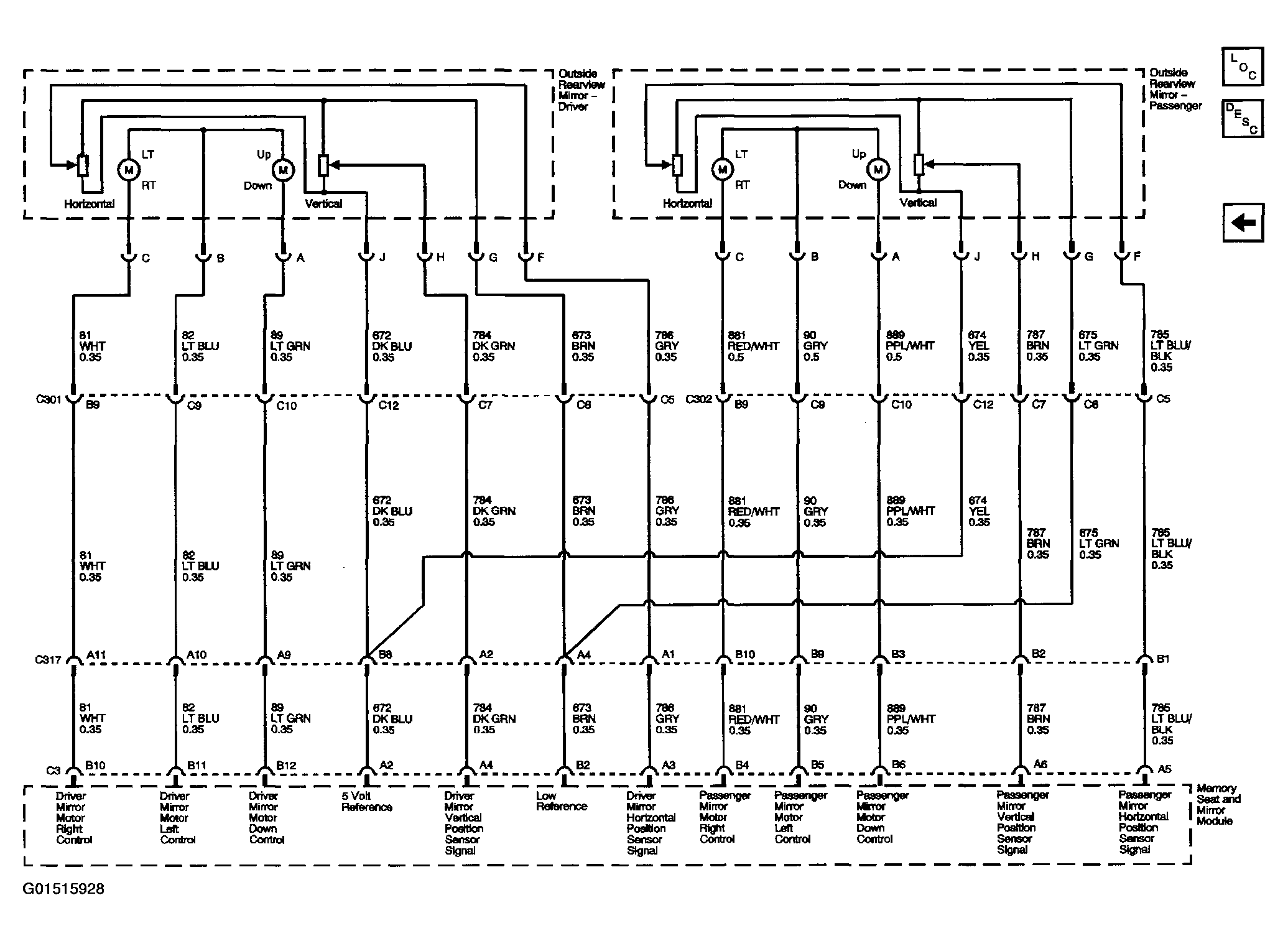

Fig 8: Outside Mirror Schematics (Memory Mirrors - Mirror Controls)

Courtesy of GENERAL MOTORS CORP.
