Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  3. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the front door rubber conduit from the front door. Refer to RUBBER CONDUIT REPLACEMENT - FRONT DOOR  .
  5. Disconnect the front door wiring harness connectors from all the accessories.
  6. Disconnect the front door wiring harness rosebud retainers from the inner front door panel.
  7. Remove the front door wiring harness from the front door.

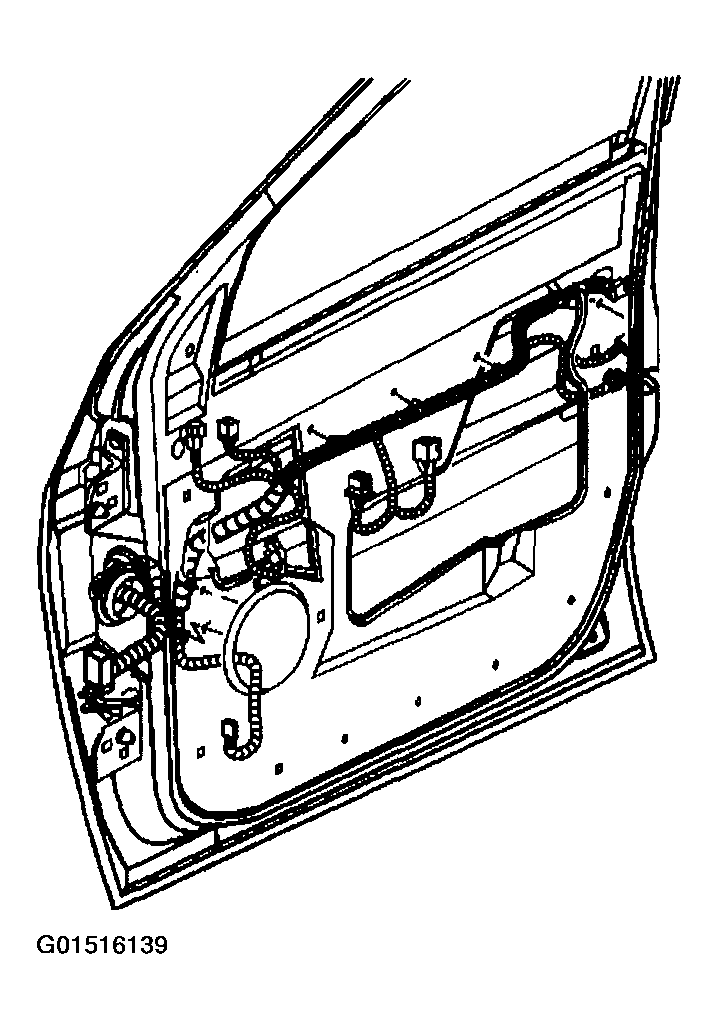

    Fig 1: Removing Front Door Wiring Harness
    G01516139Courtesy of GENERAL MOTORS CORP.
