Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front door window in the full down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  .
  5. Remove the window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  6. Loosen the bolts (1) to the front and rear clevis clamps.

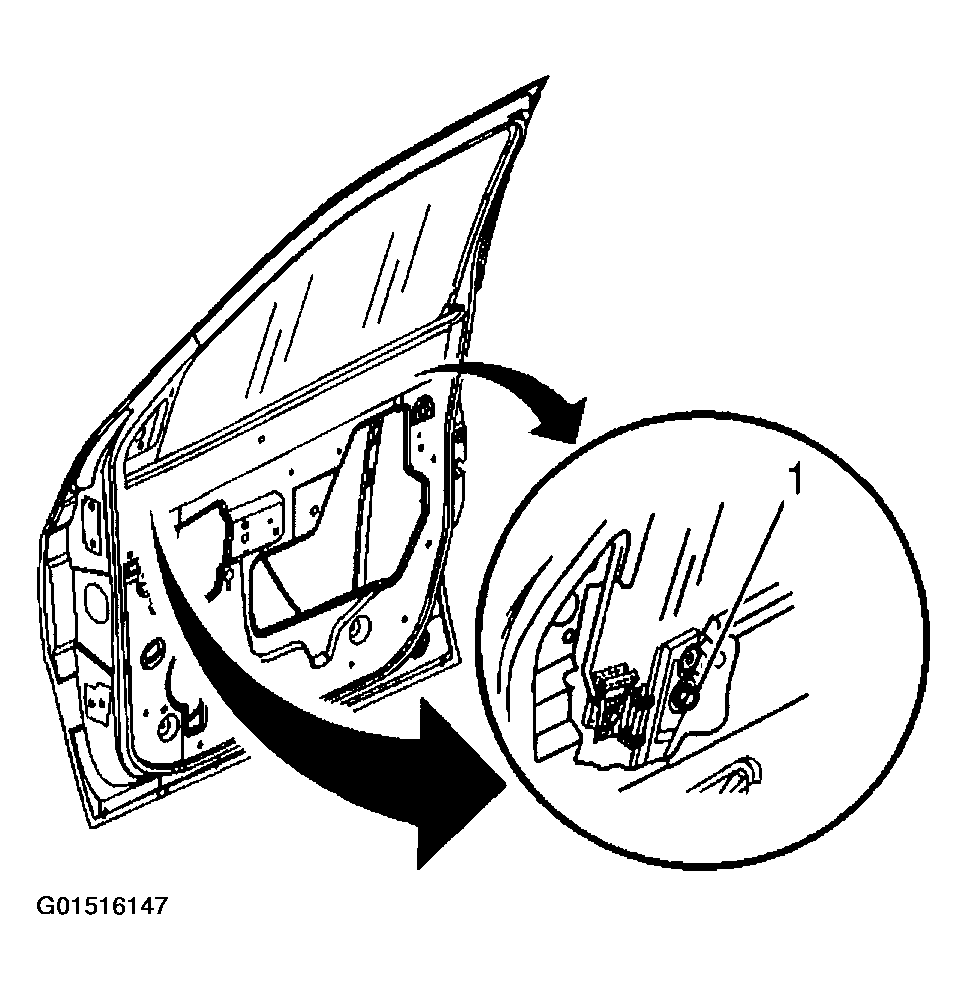

    Fig 1: Removing Front Door Window (1 Of 2)
    G01516147Courtesy of GENERAL MOTORS CORP.
  7. Remove the window from the outside of the front door.

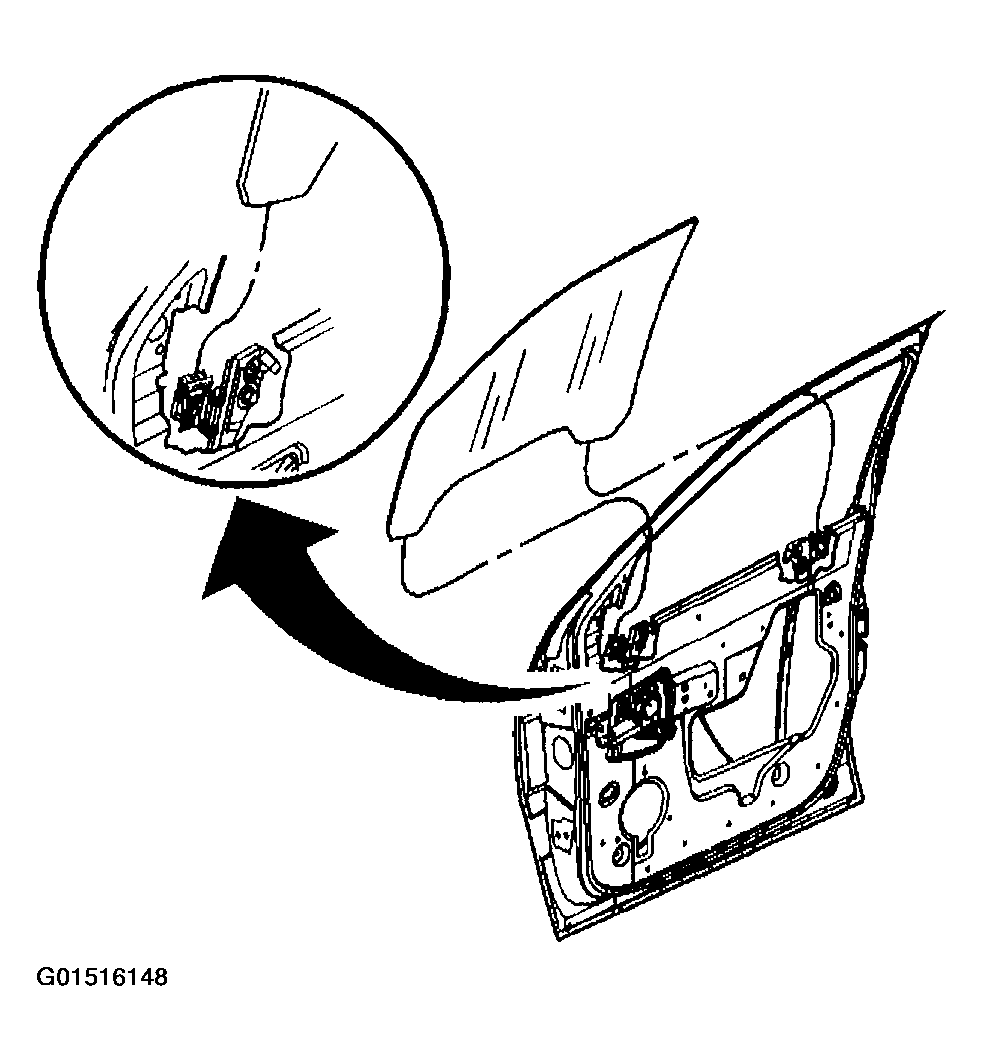

    Fig 2: Removing Front Door Window (2 Of 2)
    G01516148Courtesy of GENERAL MOTORS CORP.
