Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR
  3. Disconnect the window from the window regulator carrier plate. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Position the window in the full up position and tape it to the window frame.
  5. Disconnect the electrical connector from the window regulator motor.
  6. Loosen the bolts on the window regulator motor.
  7. Loosen the bolts on the window regulator rail.
  8. Remove the front window regulator, lifting up and out from the key slots on the door inner panel and through the rear access hole.

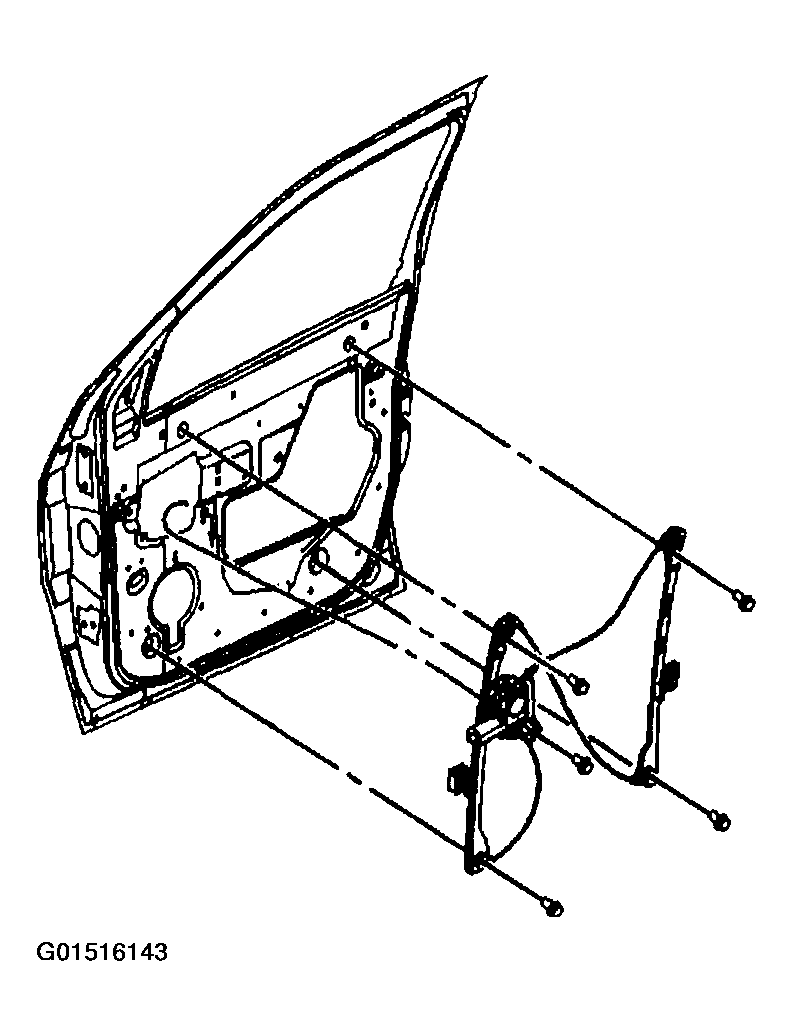

    Fig 1: Removing Front Door Window Regulator
    G01516143Courtesy of GENERAL MOTORS CORP.
