Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the rear window in the full down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  5. Remove the screw from the rear window channel.
  6. Remove the channel from the rear door.

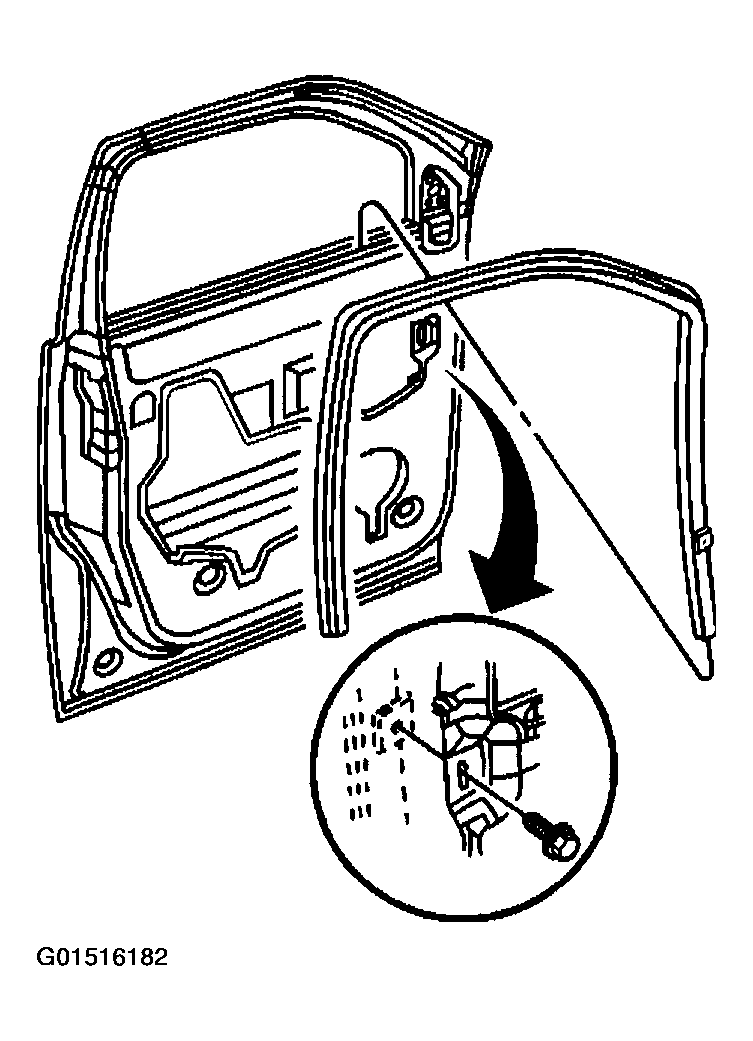

    Fig 1: Removing Rear Door Window Weatherstrip
    G01516182Courtesy of GENERAL MOTORS CORP.
