Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door sill plates. Refer to DOOR SILL PLATE REPLACEMENT -- FRONT .
  3. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER (RENDEZVOUS) .
  4. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .
  5. Remove the upper center pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- UPPER CENTER PILLAR .
  6. Remove the center lower trim panel. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  7. Remove the rear door opening weatherstrip by pulling it off the pinchweld flange.

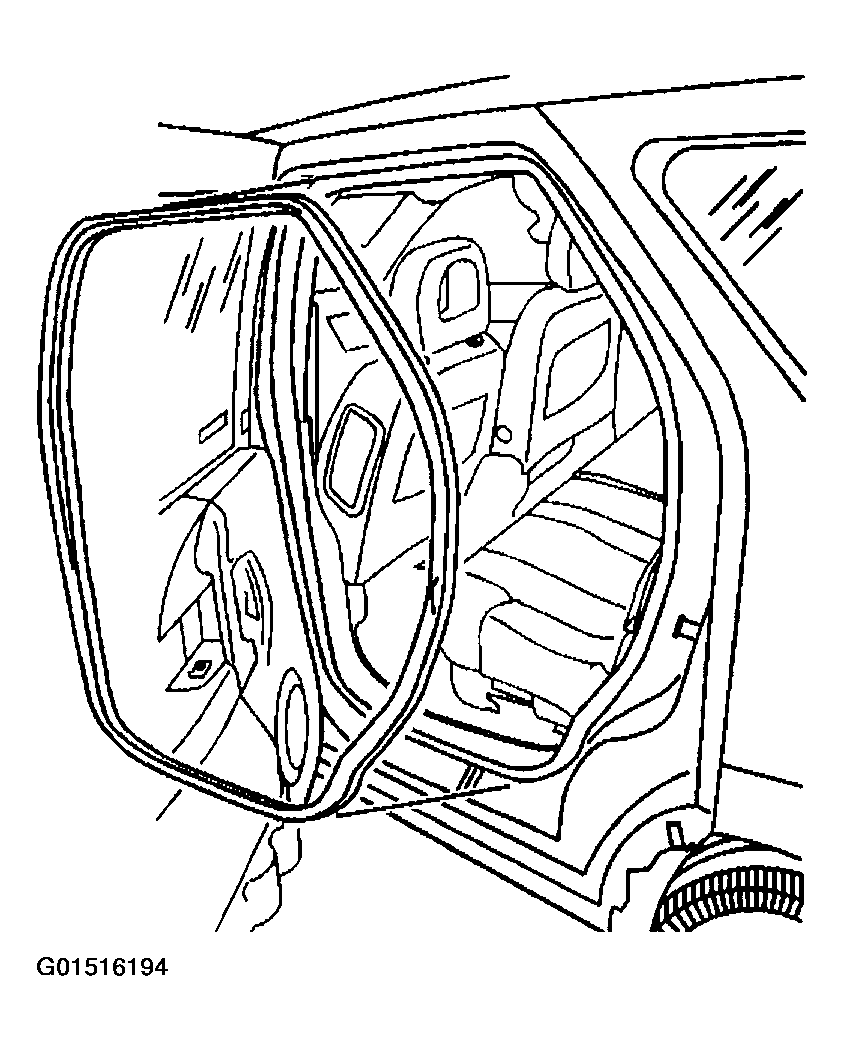

    Fig 1: Removing Rear Door Opening Weatherstrip
    G01516194Courtesy of GENERAL MOTORS CORP.
