Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT -- FRONT .
  3. Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .
  4. Remove the upper center pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- UPPER CENTER PILLAR .
  5. Remove the center lower trim panel. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  6. Remove the front door opening weatherstrip by pulling it off the pinchweld flange.

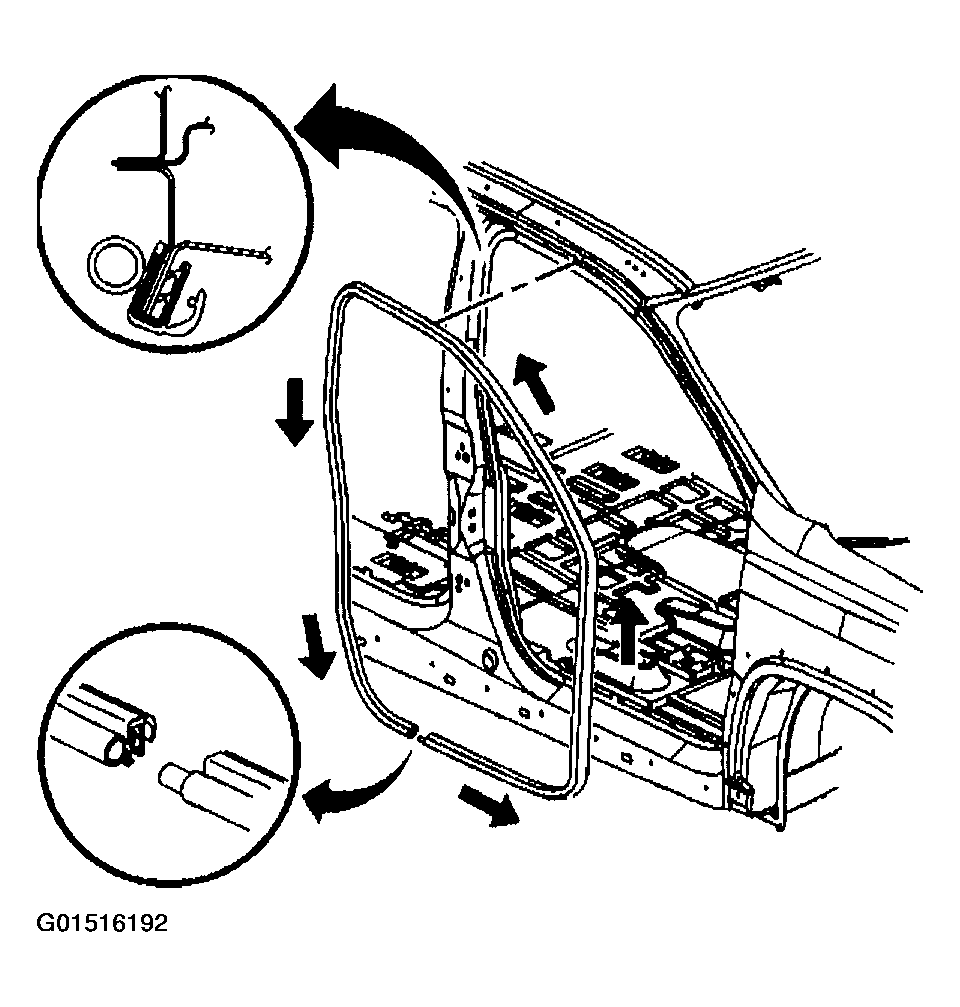

    Fig 1: Removing Front Door Opening Weatherstrip
    G01516192Courtesy of GENERAL MOTORS CORP.
