Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front and rear doors.
  2. Remove the center pillar auxiliary weatherstrip.

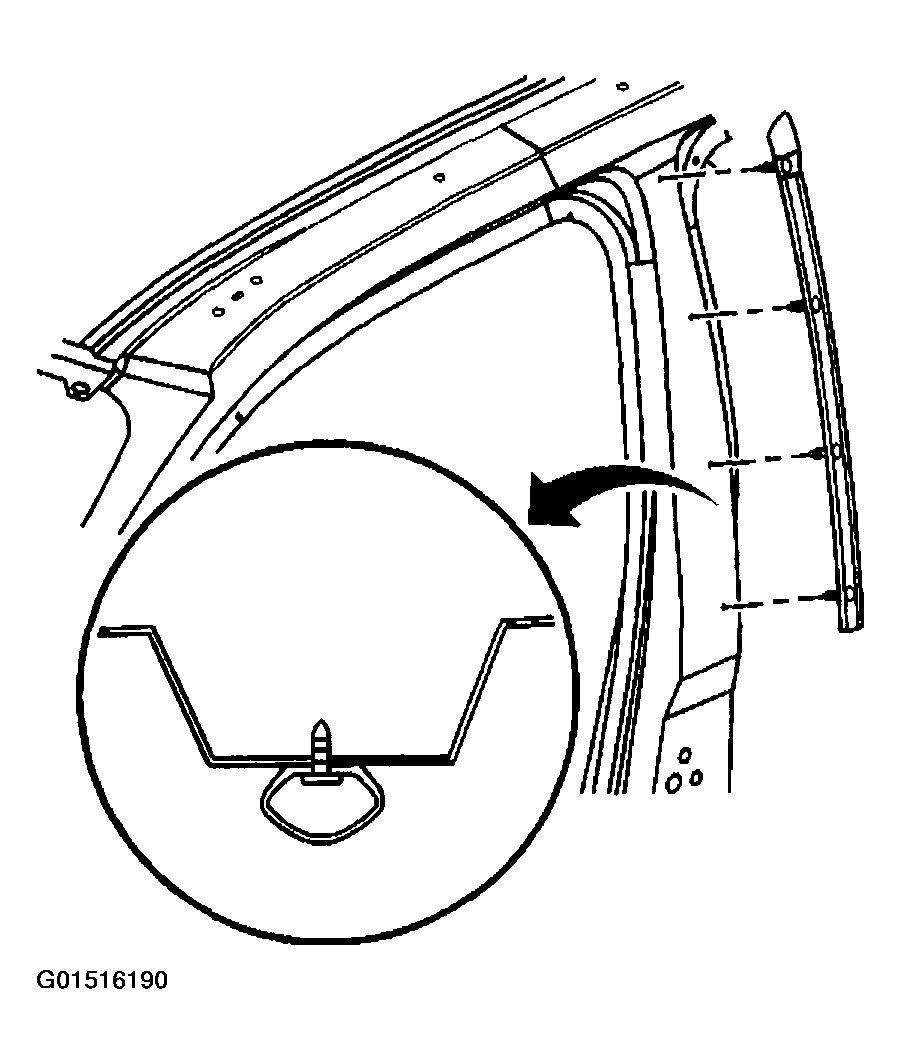

    Fig 1: Removing Center Pillar Auxiliary Weatherstrip
    G01516190Courtesy of GENERAL MOTORS CORP.
