Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the center pillar auxiliary weatherstrip top push-in retainers to the top hole in the center pillar.
  2. Install the center pillar auxiliary weatherstrip working downward pressing in the remainder of the push-in retainers until fully seated.

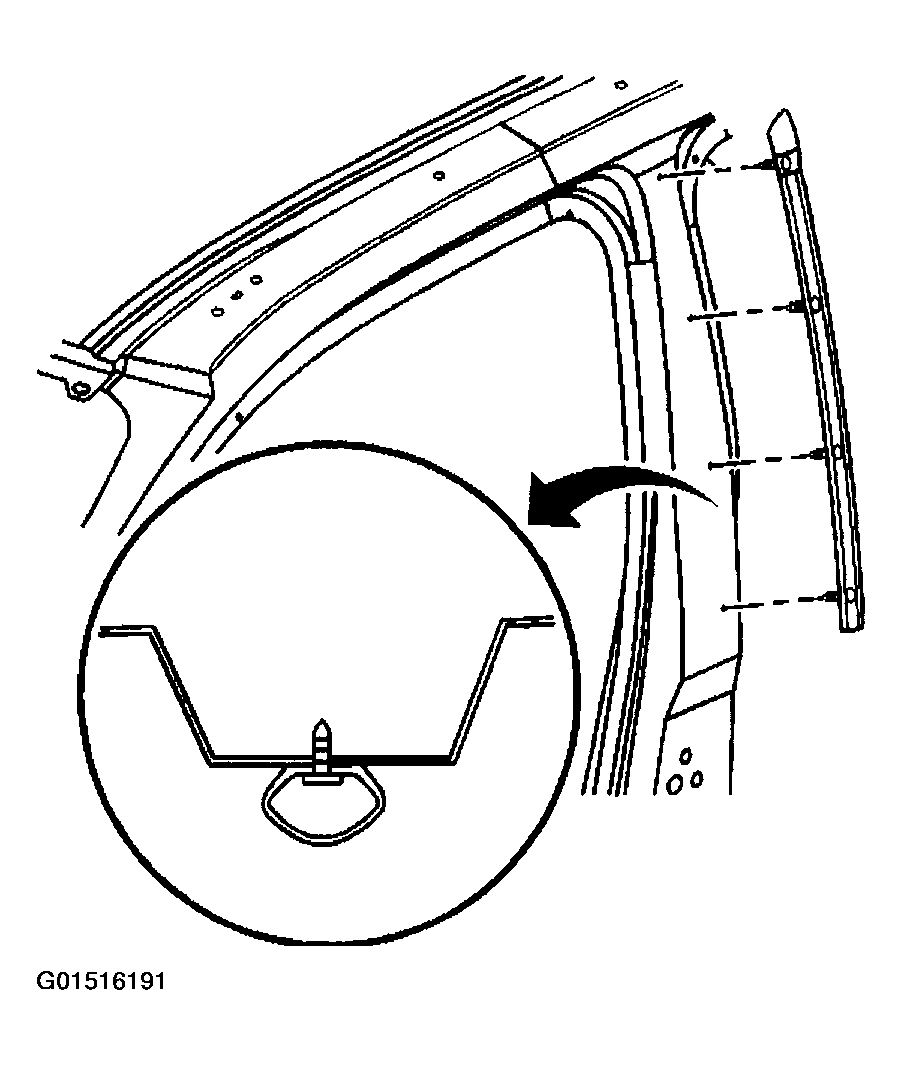

    Fig 1: Installing Center Pillar Auxiliary Weatherstrip
    G01516191Courtesy of GENERAL MOTORS CORP.
