Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the power window switch assembly. Refer to POWER WINDOW SWITCH REPLACEMENT - LEFT FRONT (AZTEK)  or POWER WINDOW SWITCH REPLACEMENT - LEFT FRONT (RENDEZVOUS)  or POWER WINDOW SWITCH REPLACEMENT - RIGHT FRONT (AZTEK)  or POWER WINDOW SWITCH REPLACEMENT - RIGHT FRONT (RENDEZVOUS)  .
  3. Remove the screws from the front door trim panel

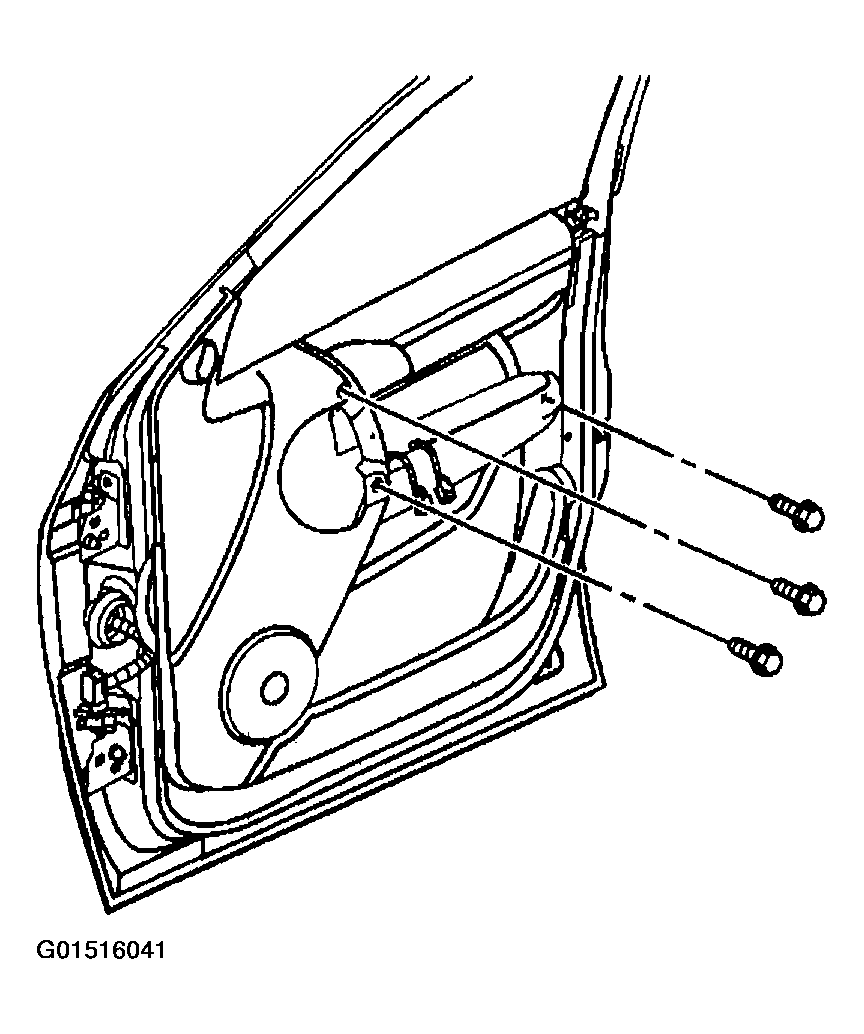

    Fig 1: Removing Side Front Door Trim Panel (Aztek - 1 Of 2)
    G01516041Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door trim panel using the J 38778.
  5. Remove the power mirror switch. Refer to POWER MIRROR SWITCH REPLACEMENT (AZTEK)  or POWER MIRROR SWITCH REPLACEMENT (RENDEZVOUS)  if equipped.
  6. Reposition the electrical harness connectors.
  7. Remove the front door trim panel from the vehicle.

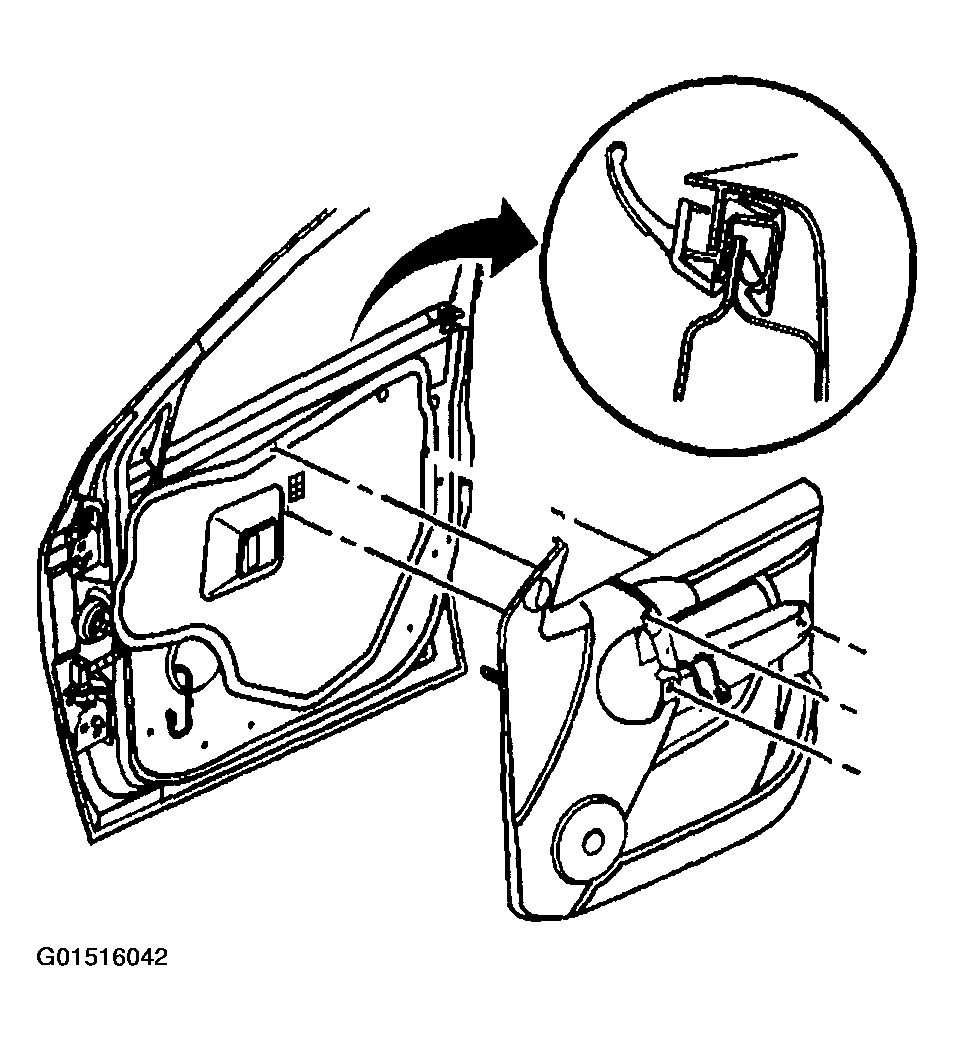

    Fig 2: Removing Side Front Door Trim Panel (Aztek - 2 Of 2)
    G01516042Courtesy of GENERAL MOTORS CORP.
