Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear door window.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (RENDEZVOUS)  .
  3. Remove the inner window sealing strip by lifting the strip off the pinch-weld flange.

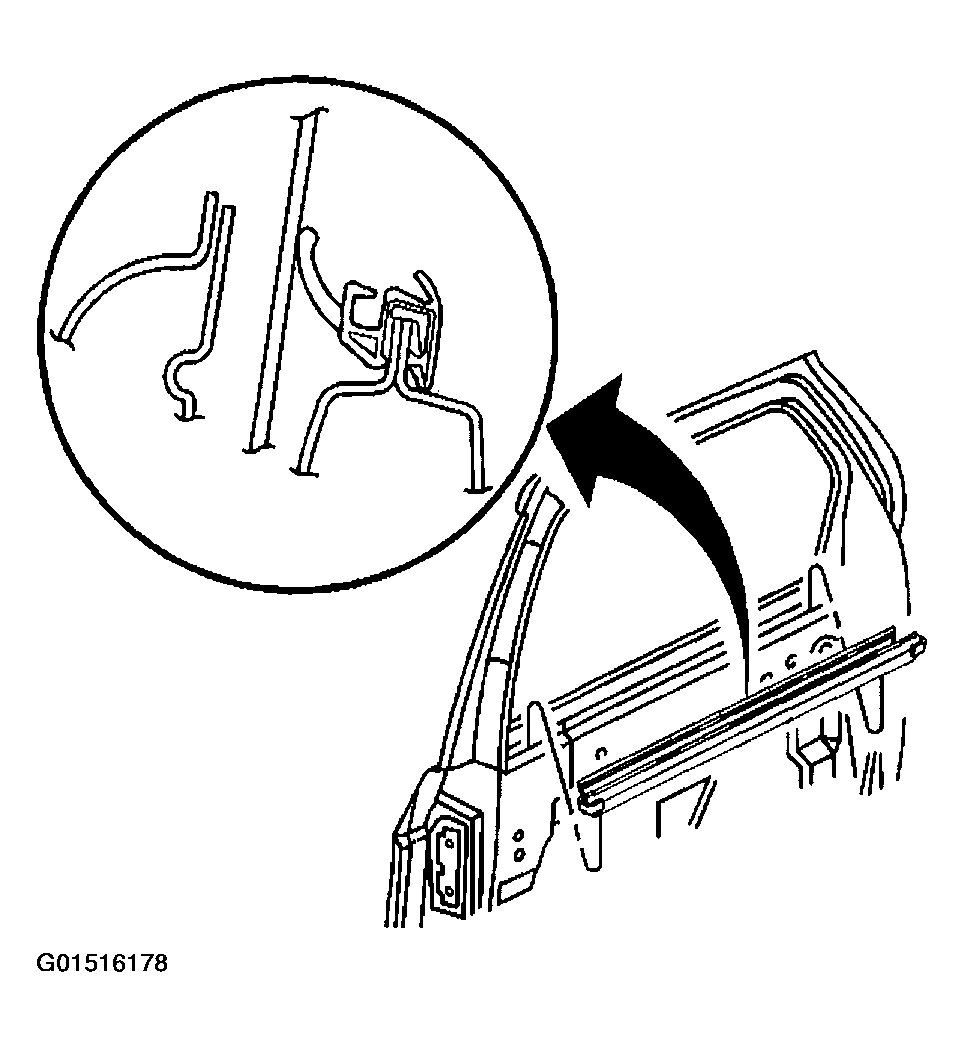

    Fig 1: Removing Rear Door Window Belt Inner Sealing Strip
    G01516178Courtesy of GENERAL MOTORS CORP.
