Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror. Refer to MIRROR REPLACEMENT - POWER  .
  2. Remove the rear screw from the front door outer belt sealing strip.
  3. Remove the outer belt sealing strip by pulling the sealing strip from the front door pinchweld flange.

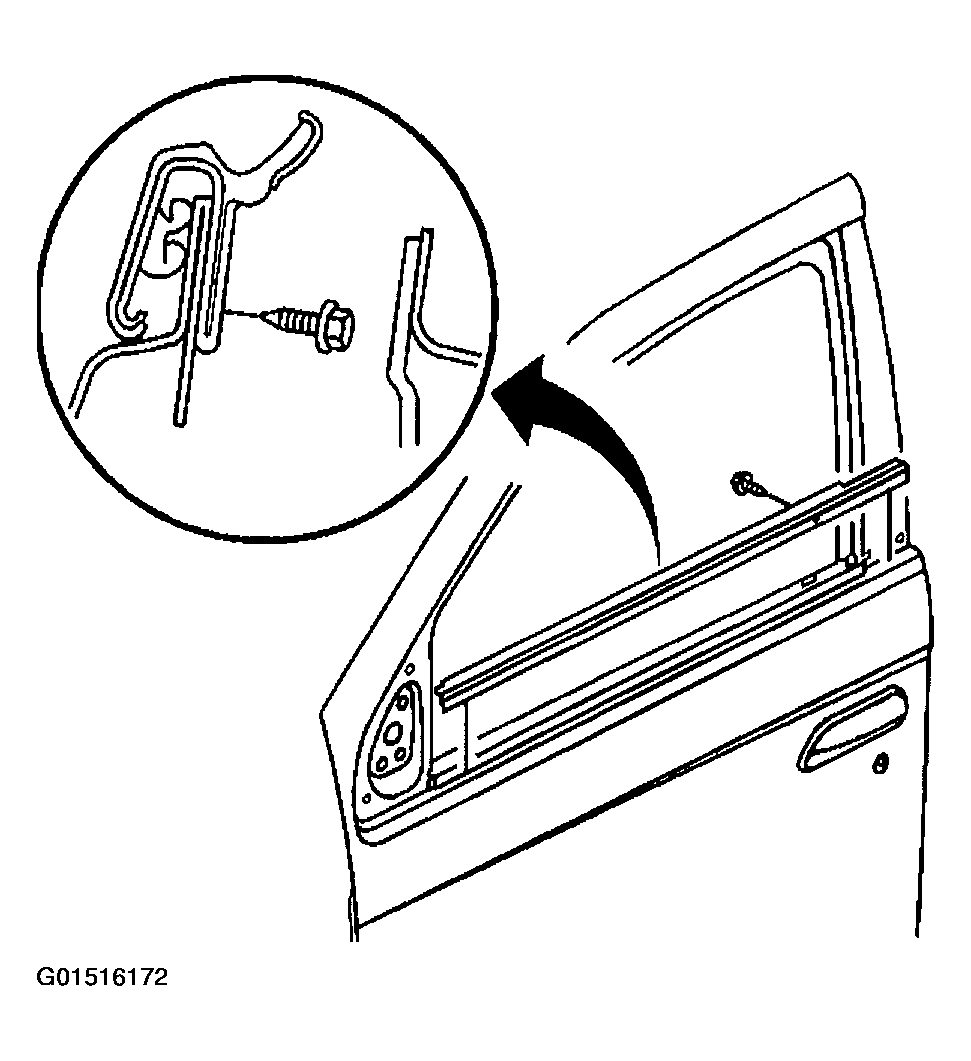

    Fig 1: Removing Front Door Window Belt Outer Sealing Strip
    G01516172Courtesy of GENERAL MOTORS CORP.
