Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the front door window.
  2. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  3. Remove the inner window sealing strip by lifting the strip off the pinch-weld flange.

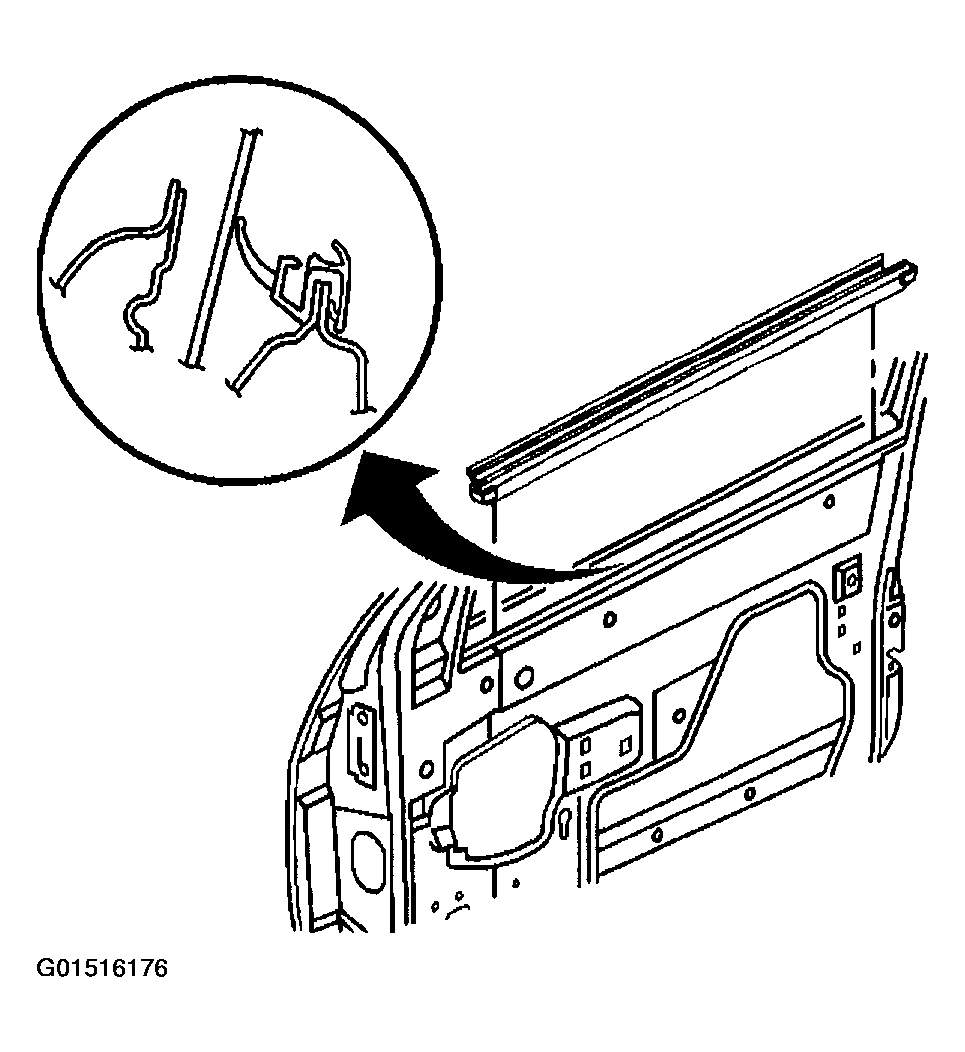

    Fig 1: Removing Front Door Window Belt Inner Sealing Strip
    G01516176Courtesy of GENERAL MOTORS CORP.
