Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left or right instrument panel insulator as required. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Disconnect the electrical from the front door wiring harness.
  3. Remove the door rubber conduit from where it attaches at the windshield pillar.
  4. Remove the conduit from the front door.
  5. Remove the front door wiring harness out from the rubber conduit.

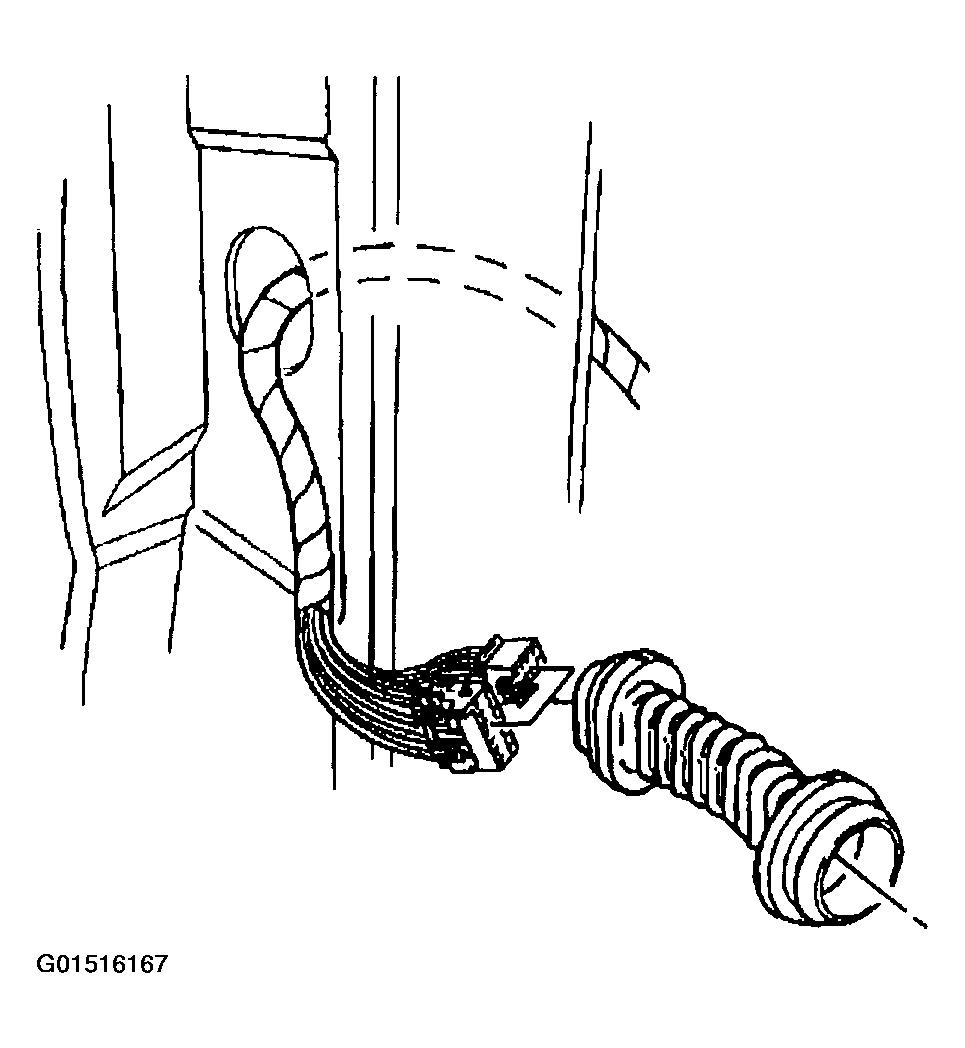

    Fig 1: Removing Front Door Rubber Conduit
    G01516167Courtesy of GENERAL MOTORS CORP.
