Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Apply protective coating/tape at the point of insertion of the flat bladed tool.
  3. Remove the warning reflector from the front door trim panel using a small flat bladed tool, pressing on the tabs from the top of the warning reflector.
  4. Remove the warning reflector from the front door trim panel.

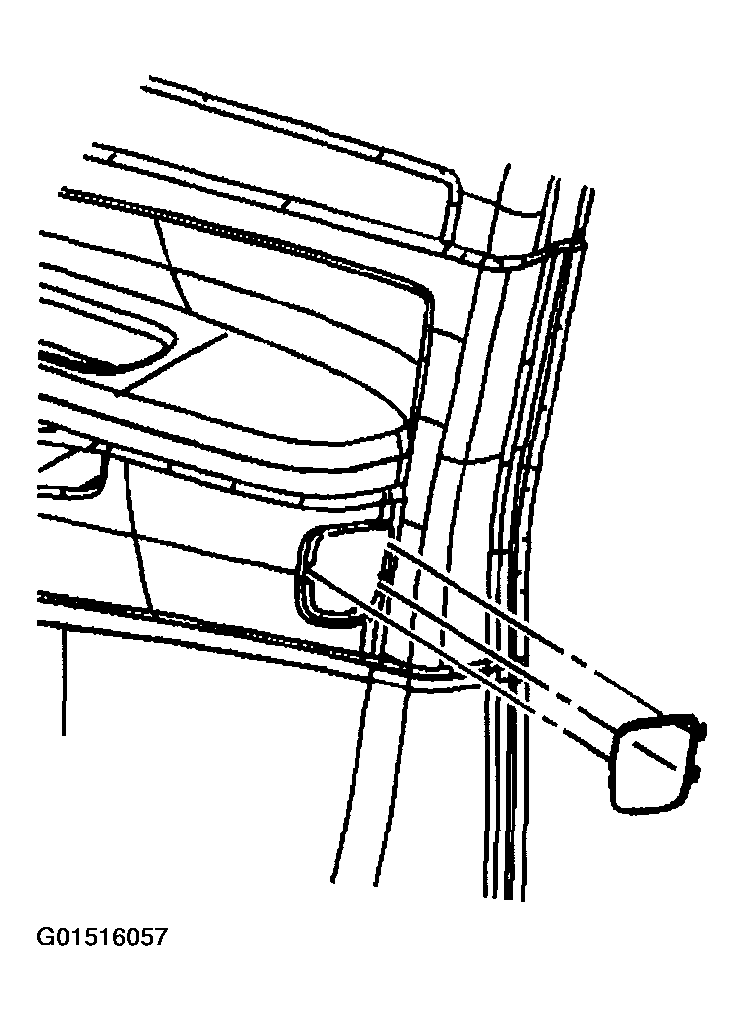

    Fig 1: Removing Front Door Warning Reflector (Rendezvous)
    G01516057Courtesy of GENERAL MOTORS CORP.
