Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the power window switch into the power window switch plate.

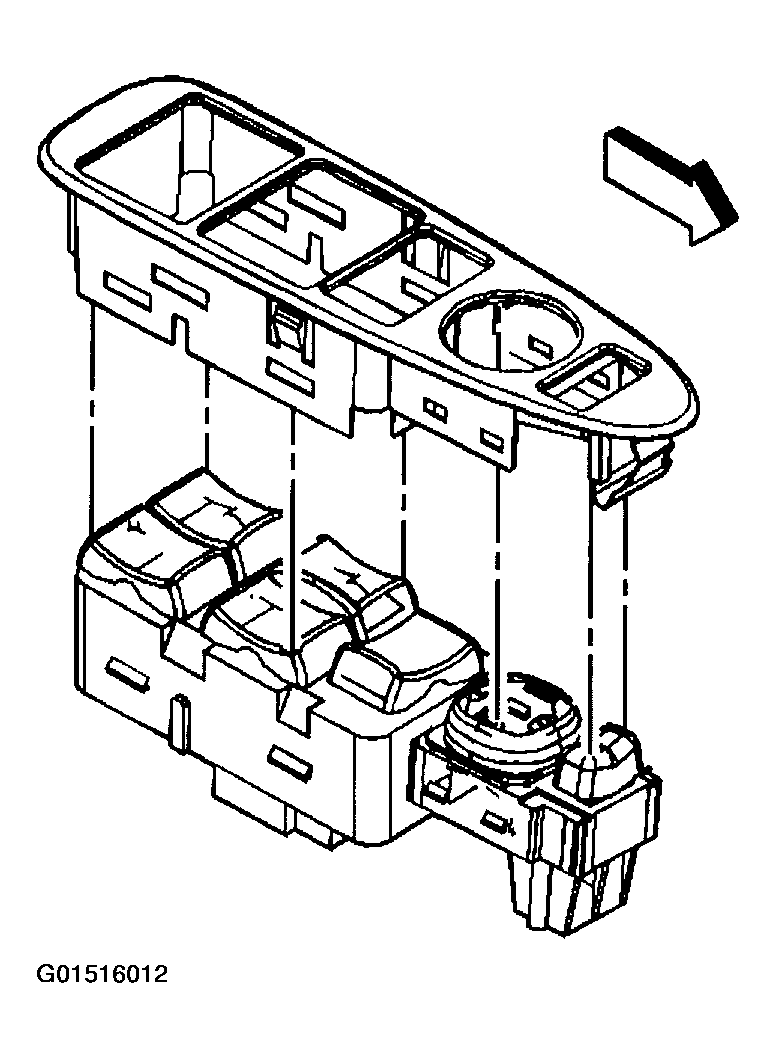

Fig 1: Installing Left Front Power Window Switch (Rendezvous - 1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors to the power window switch.

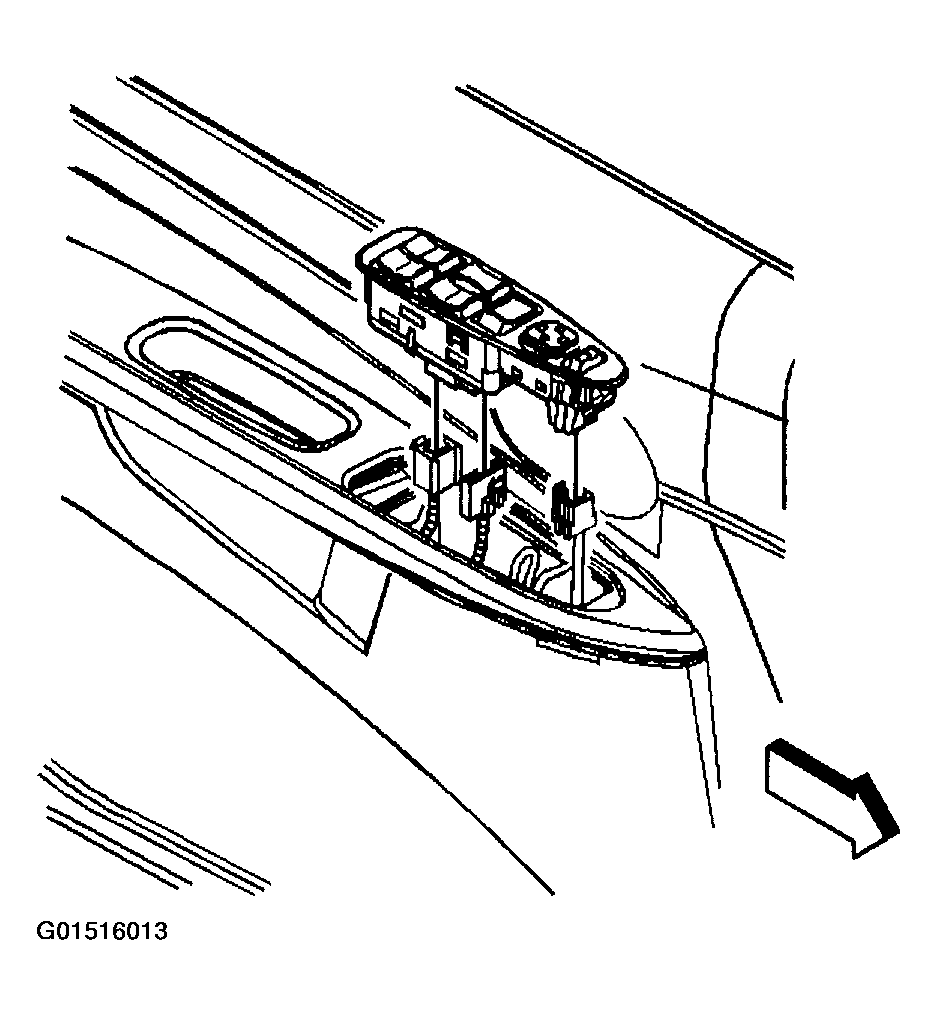

Fig 2: Installing Left Front Power Window Switch (Rendezvous - 2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Install the power window switch plate to the front door trim panel. Press the plate into place until fully seated.

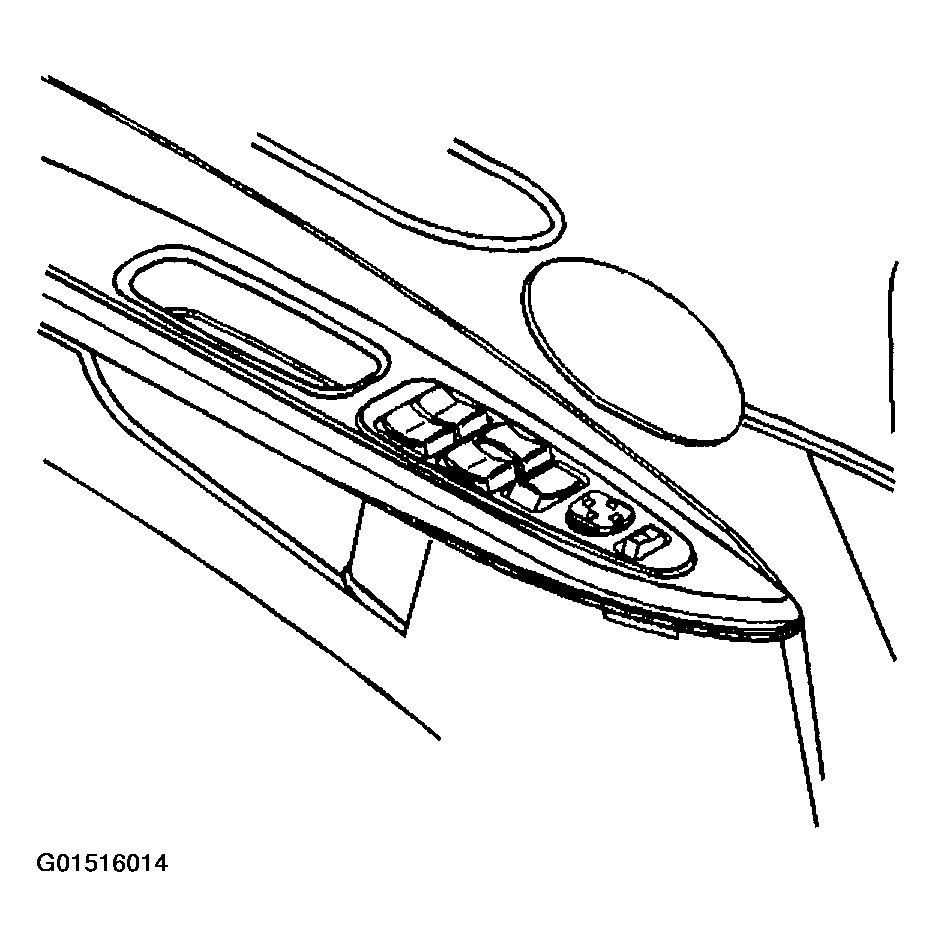

Fig 3: Installing Left Front Power Window Switch (Rendezvous - 3 Of 3)
Courtesy of GENERAL MOTORS CORP.
