Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter lower trim in order to gain access to the anchor plate. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .
  2. Mark the position of the rear door lock striker with a grease pencil.
  3. Remove the screws from the lock striker.
  4. Remove the lock striker and the shims.
  5. Remove the anchor plate.

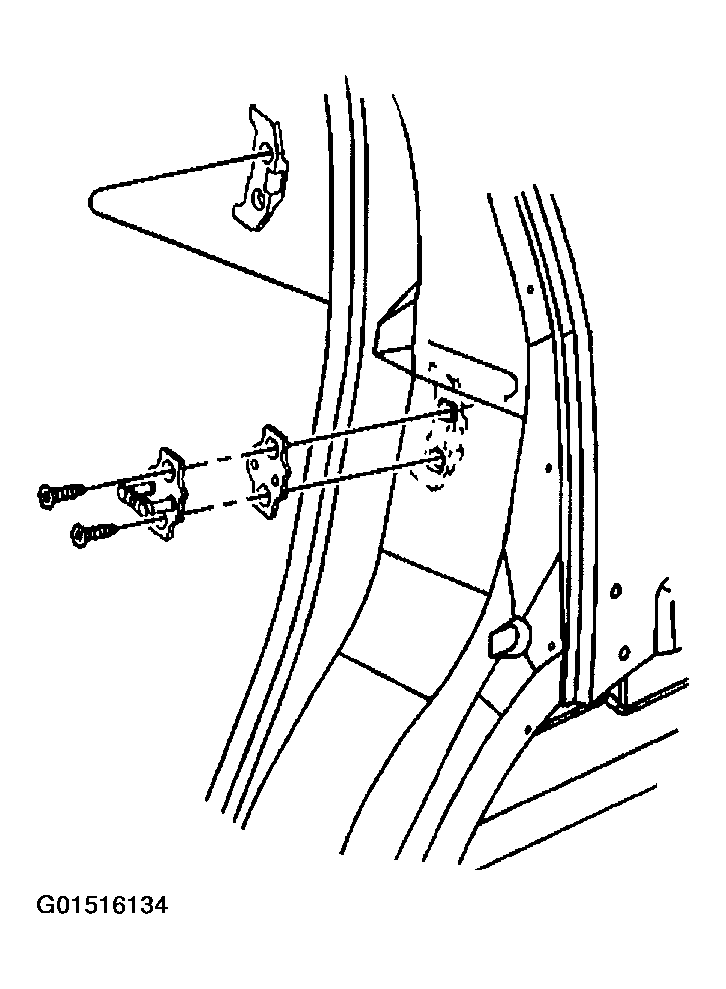

    Fig 1: Removing Rear Door Striker
    G01516134Courtesy of GENERAL MOTORS CORP.
