Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply tape to the area around the rear lower door frame applique.
  2. Using a flat-bladed tool, remove the rear lower door frame applique.
  3. Remove the rear lower door frame applique from the rear door.

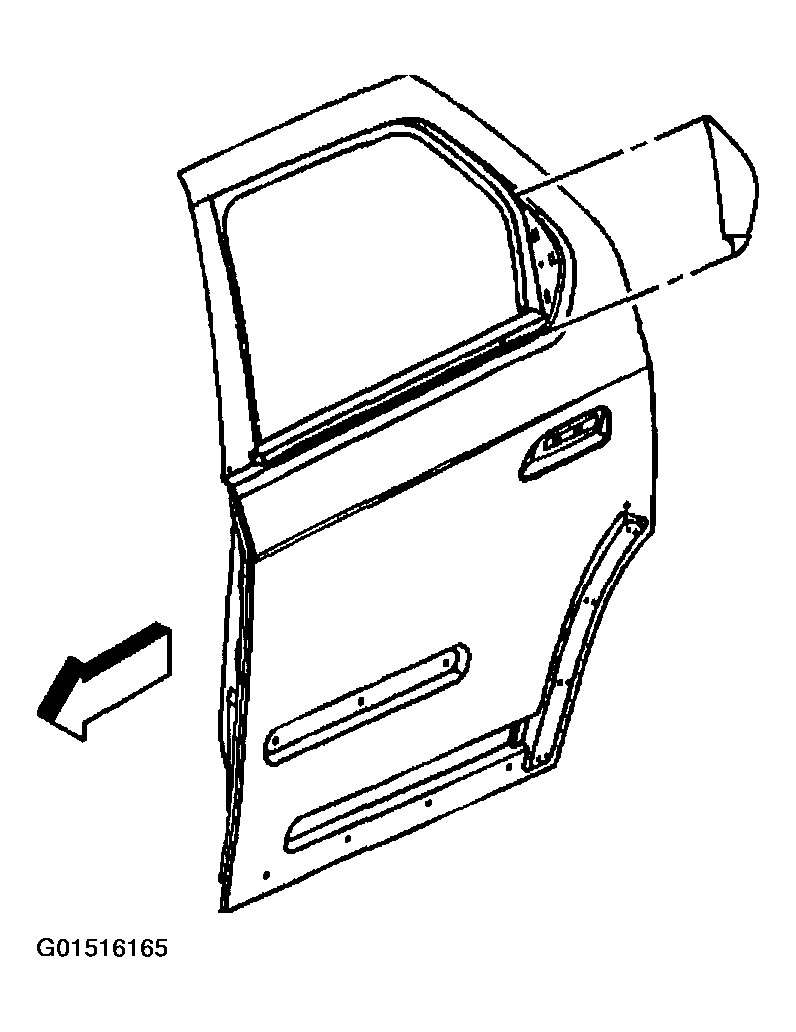

    Fig 1: Removing Rear Lower Door Frame Applique
    G01516165Courtesy of GENERAL MOTORS CORP.
