Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: Protect the applique with heavy material tape in order to avoid damaging the underlying paint finish or applique. Do not use a pointed or a sharp instrument for the removal of the applique.

Remove the window outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER .
Remove the center of the rivets using a center punch.

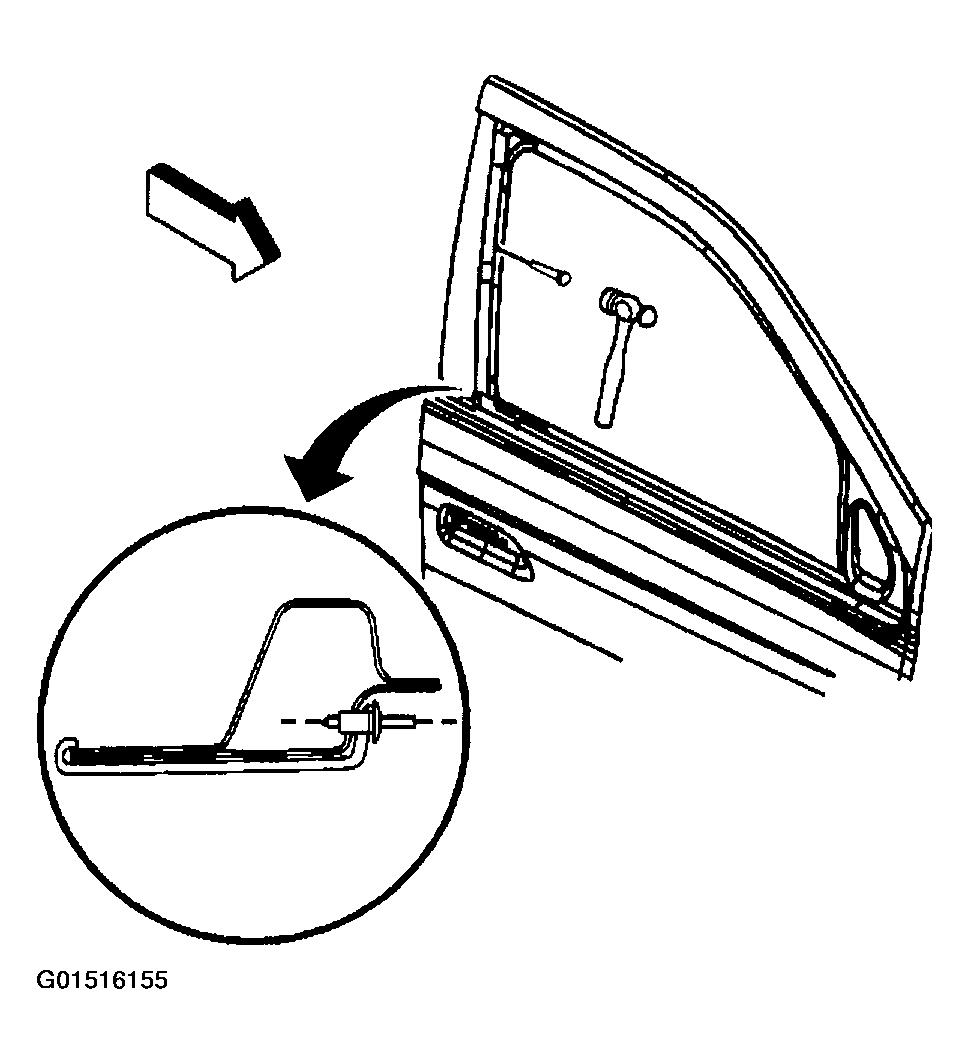

Fig 1: Removing Front Door Frame Applique (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Drill out the rivets from the front door frame applique.

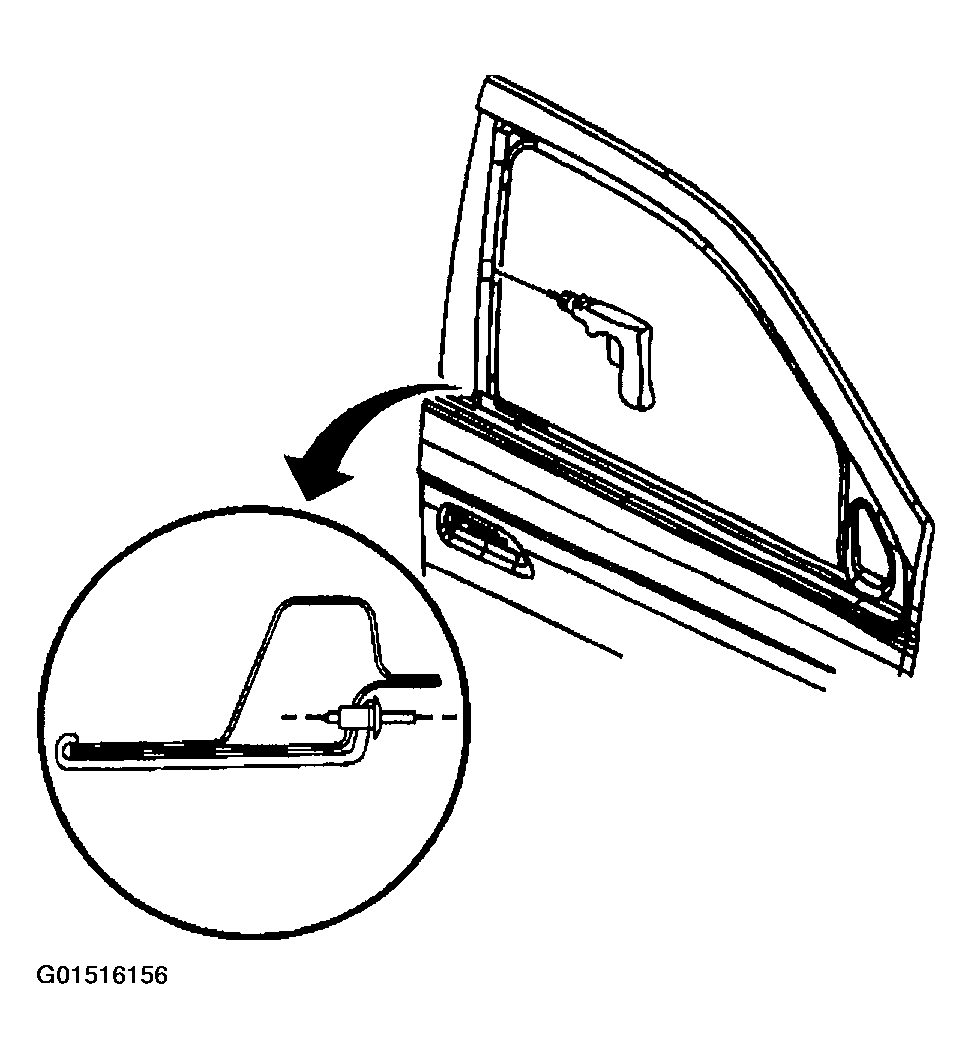

Fig 2: Removing Front Door Frame Applique (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the frame applique from the front door.

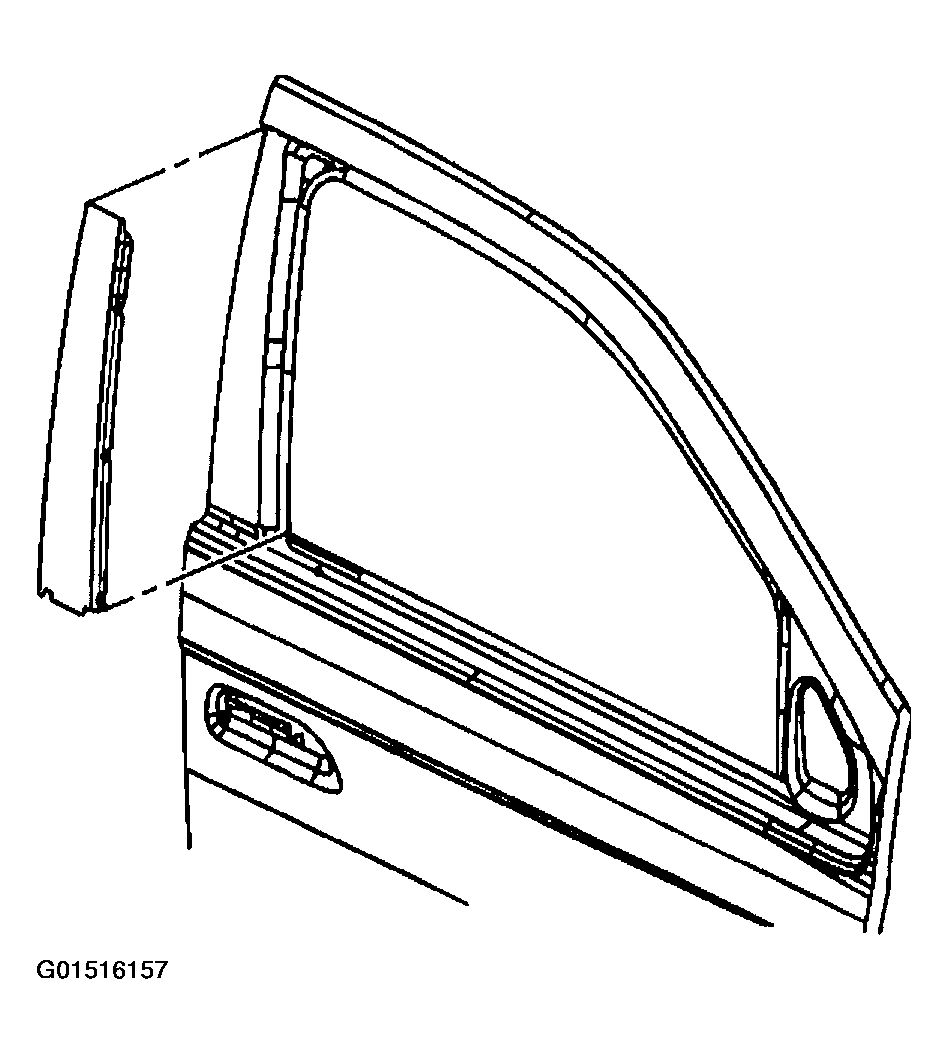

Fig 3: Removing Front Door Frame Applique (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
