Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. This step verifies that all of the power door locks, including the end gate locks are inoperative.

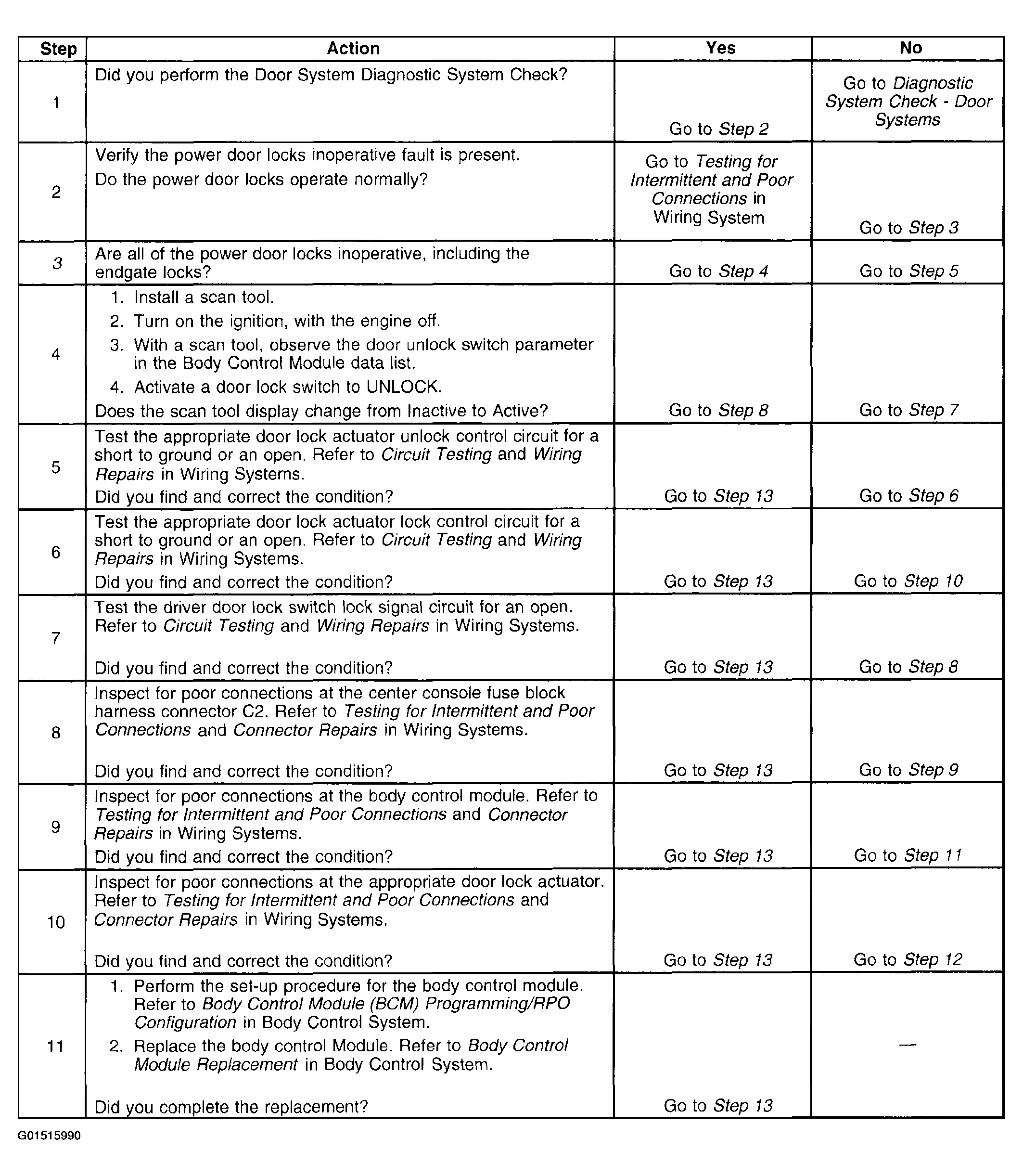

Fig 1: Aztek Power Door Locks Inoperative Symptom Tests (Steps 1-11)
Courtesy of GENERAL MOTORS CORP.

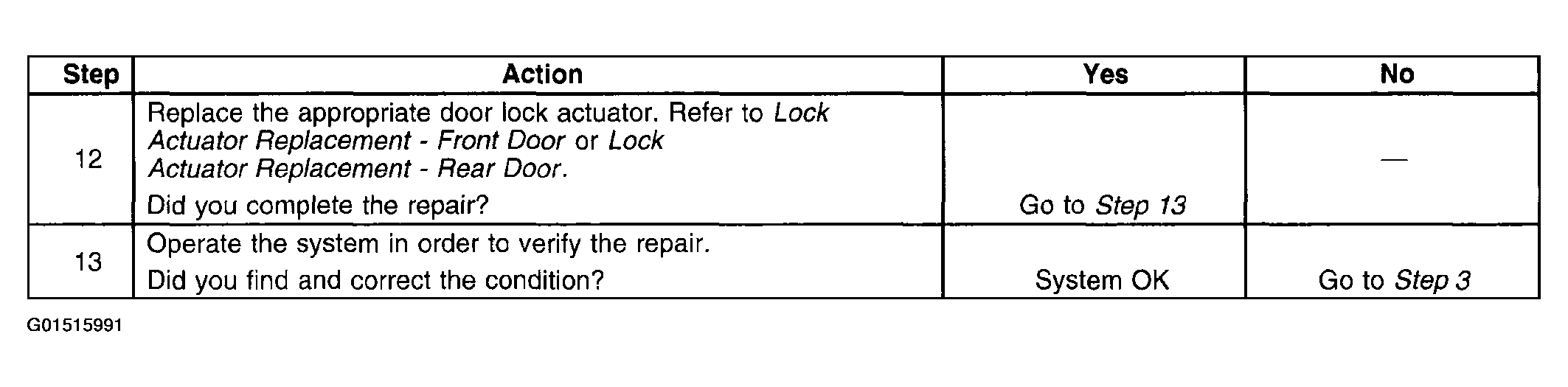

Fig 2: Aztek Power Door Locks Inoperative Symptom Tests (Steps 12-13)
Courtesy of GENERAL MOTORS CORP.

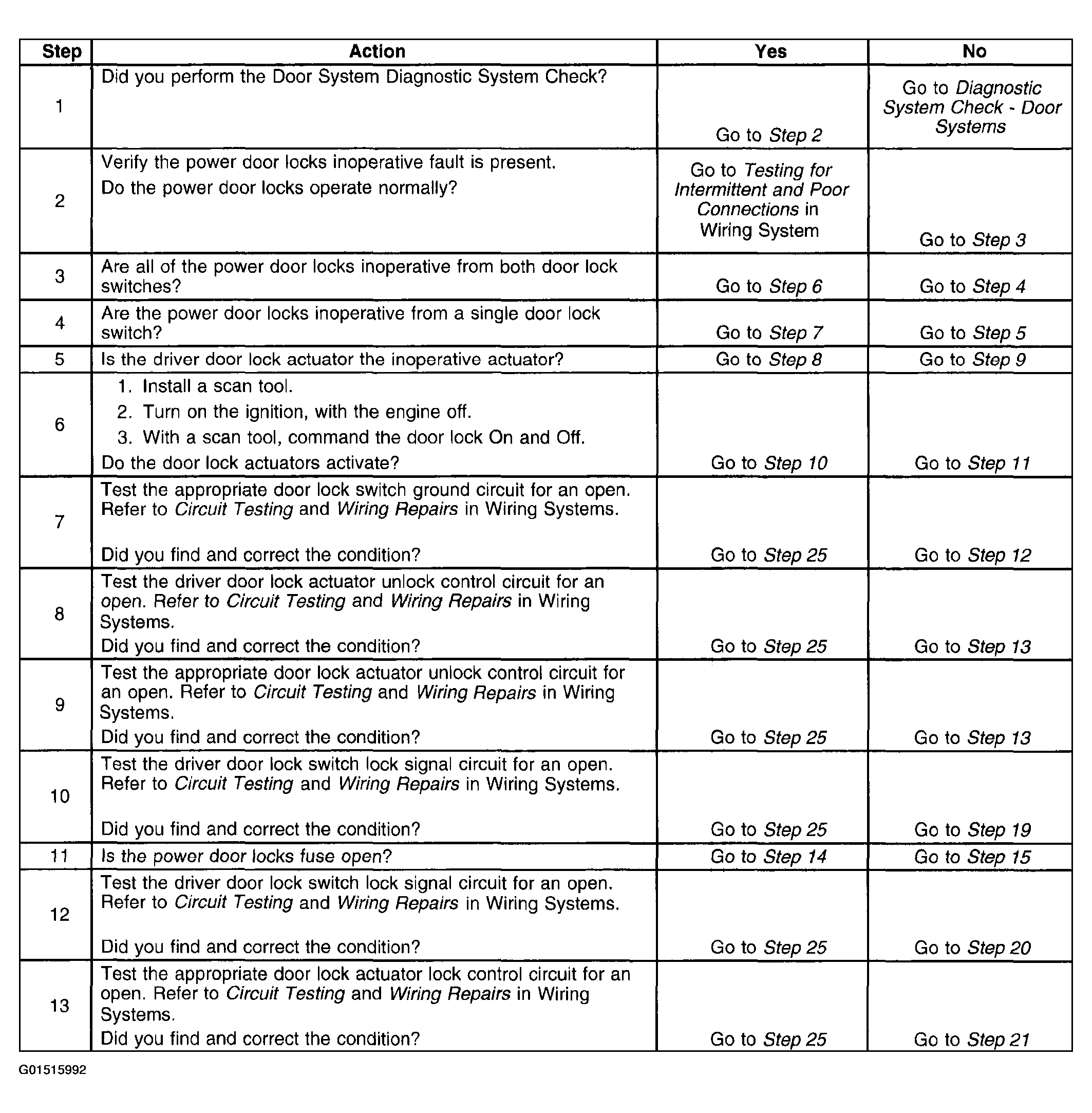

Fig 3: Rendezvous Power Door Locks Inoperative Symptom Tests (Steps 1-13)
Courtesy of GENERAL MOTORS CORP.

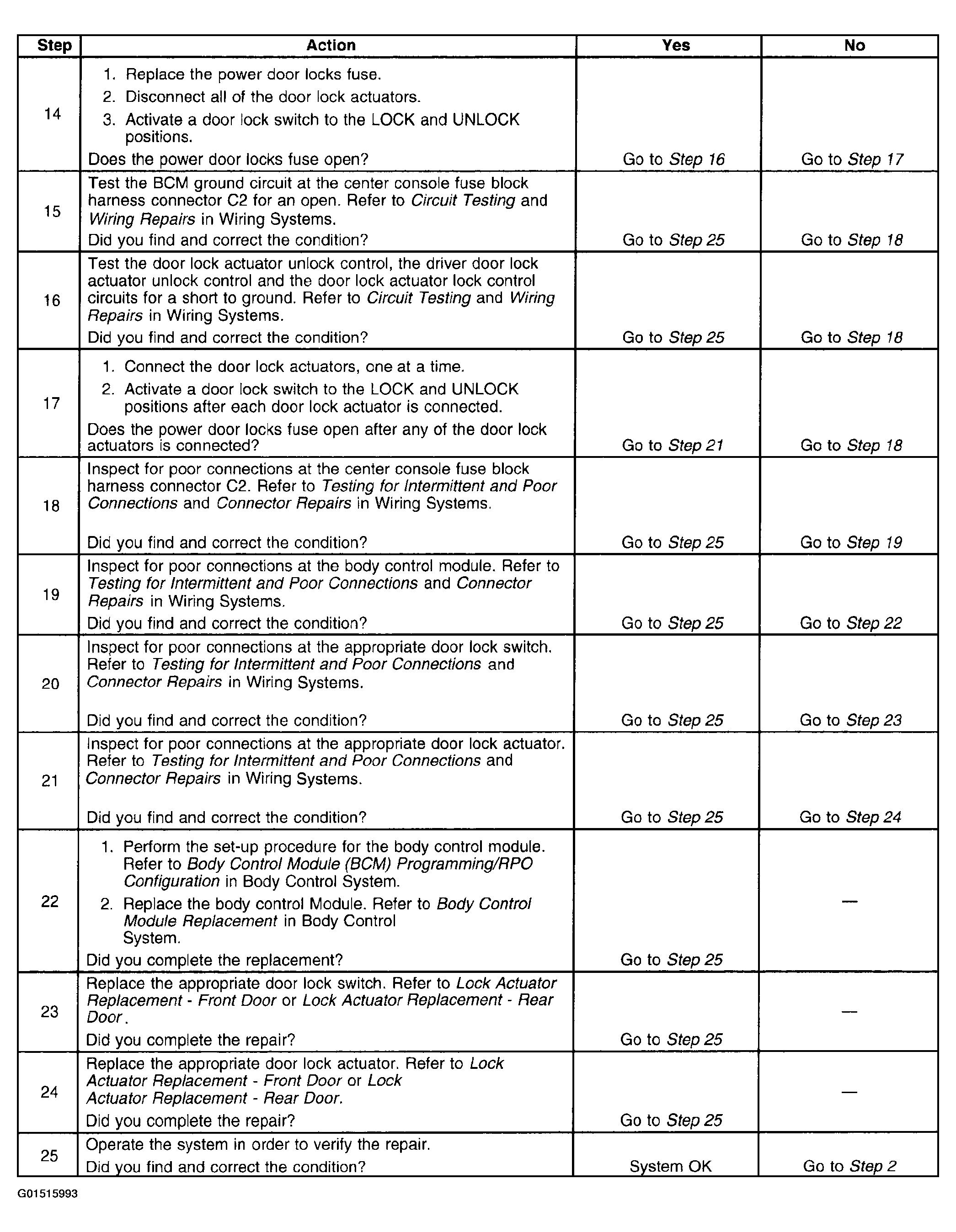

Fig 4: Rendezvous Power Door Locks Inoperative Symptom Tests (Steps 14-25)
Courtesy of GENERAL MOTORS CORP.

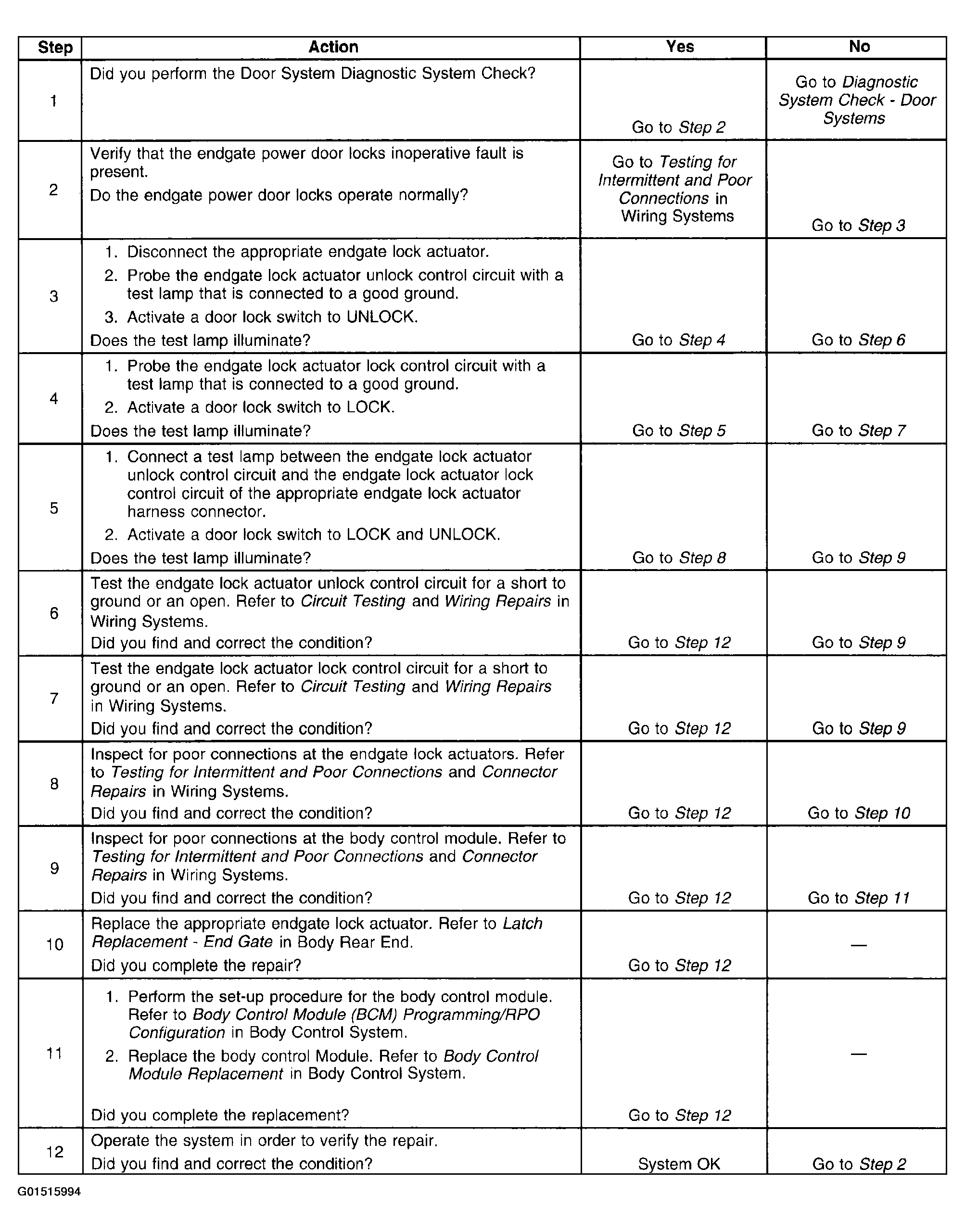

Fig 5: End Gate/Lift Gate Power Door Locks Inoperative Symptom Tests
Courtesy of GENERAL MOTORS CORP.

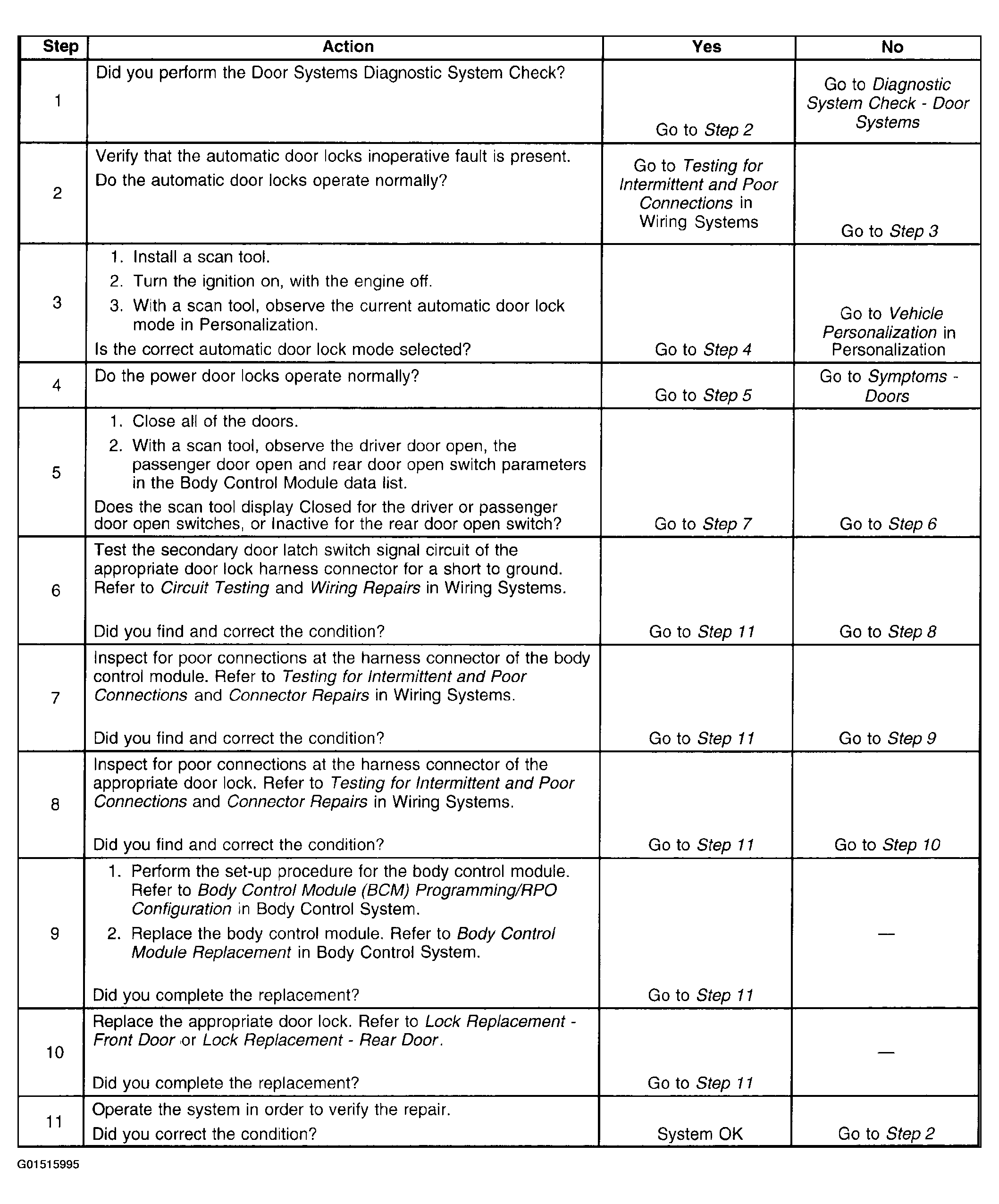

Fig 6: Automatic Door Locks Inoperative Symptom Tests
Courtesy of GENERAL MOTORS CORP.
