Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wire harness to the steering column.
  2. Replace all the tie straps (2).
  3. Connect all the electrical connectors.
  4. Install the steering column. Refer to STEERING COLUMN REPLACEMENT  .

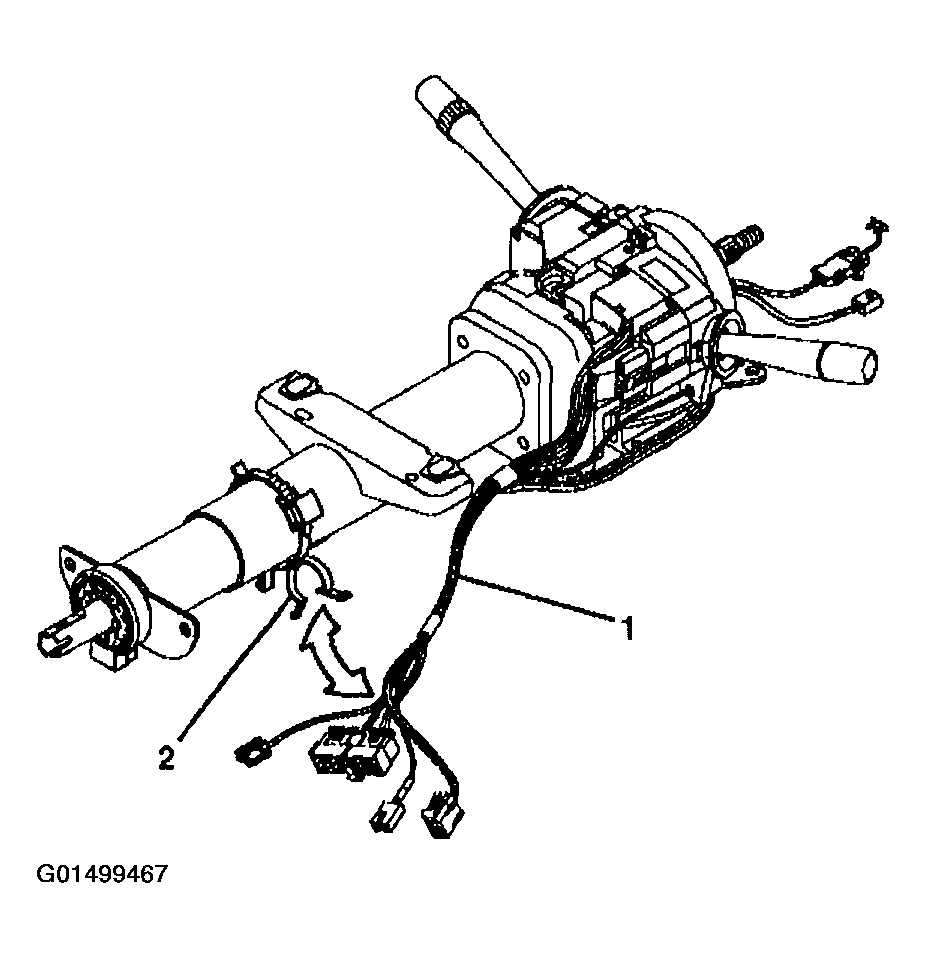

    Fig 1: Installing Wire Harness To Steering Column
    G01499467Courtesy of GENERAL MOTORS CORP.
