Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the lower trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Remove the tilt lever spring.
  4. Remove the retaining bolt from the tilt lever.
  5. Remove the tilt lever.

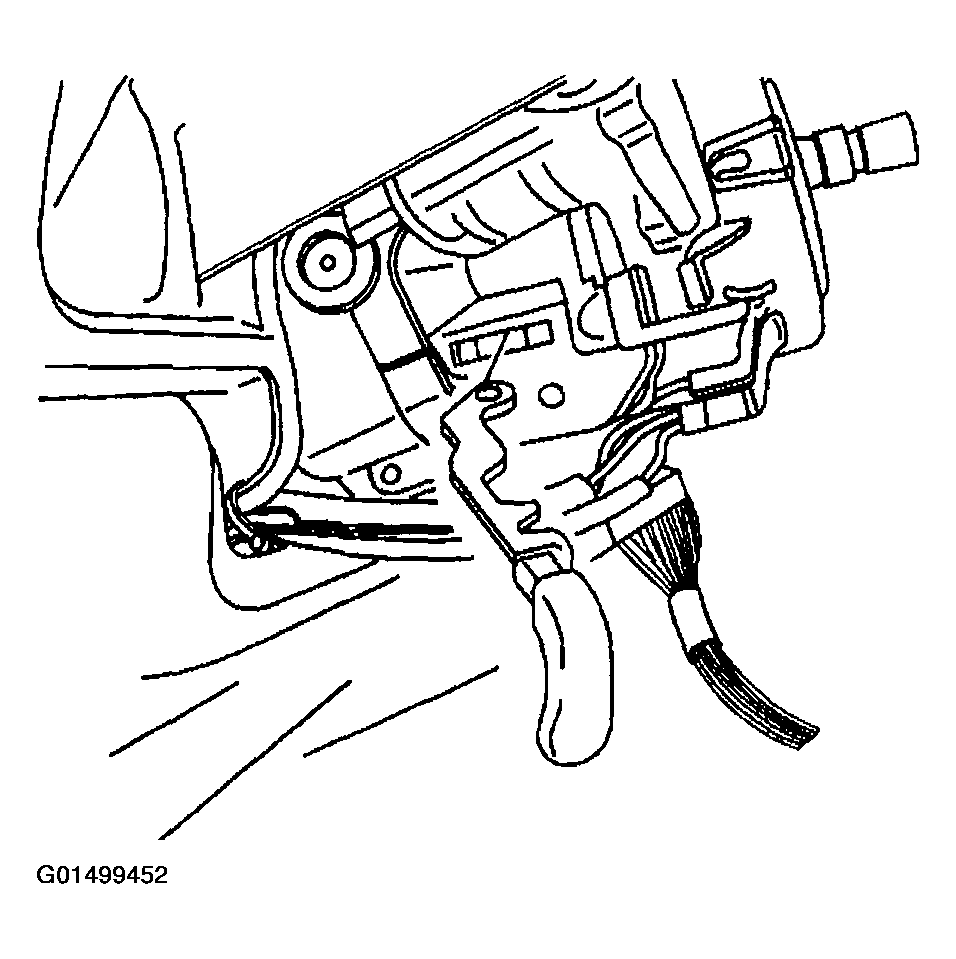

    Fig 1: Removing Tilt Lever
    G01499452Courtesy of GENERAL MOTORS CORP.
