Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the controls and the control harness to the steering wheel.
  2. Install the wiring through the steering wheel.
  3. Install the steering wheel.
  4. Connect the steering wheel control electrical connector.
  5. Install the steering wheel nut.

    Tighten  Tighten the nut to 41 N.m (30 lb ft).

  6. Install the inflator module.
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

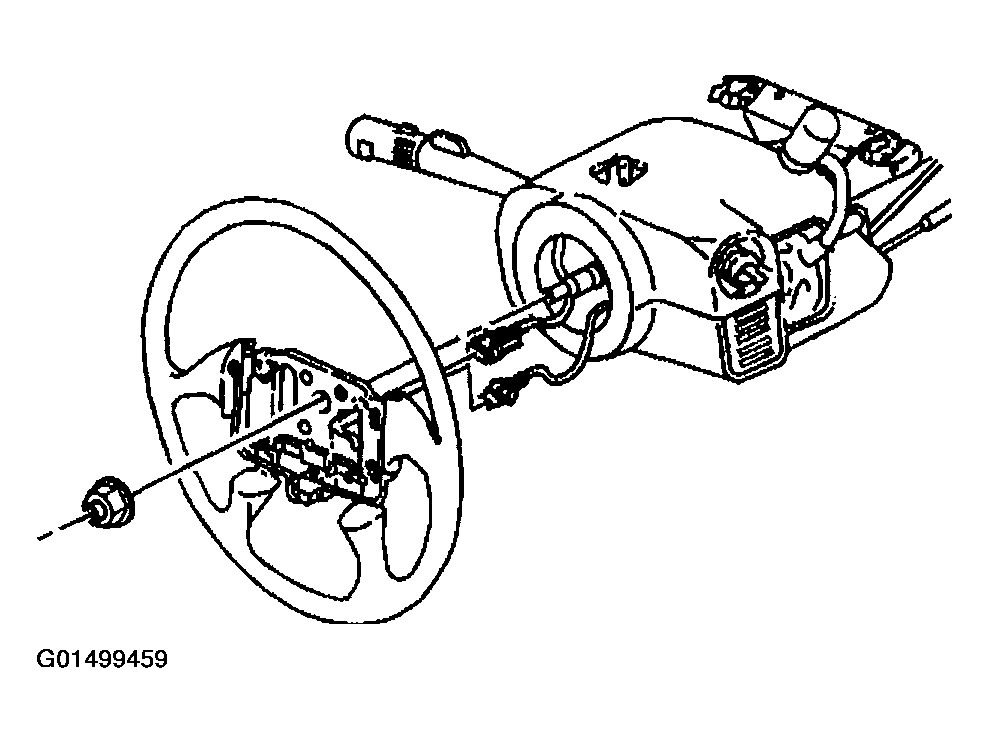

    Fig 1: Installing Steering Wheel
    G01499459Courtesy of GENERAL MOTORS CORP.
