Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  3. Remove the retaining screws (2,3) from the steering wheel rear bezel.
  4. Remove the steering wheel rear bezel (1).

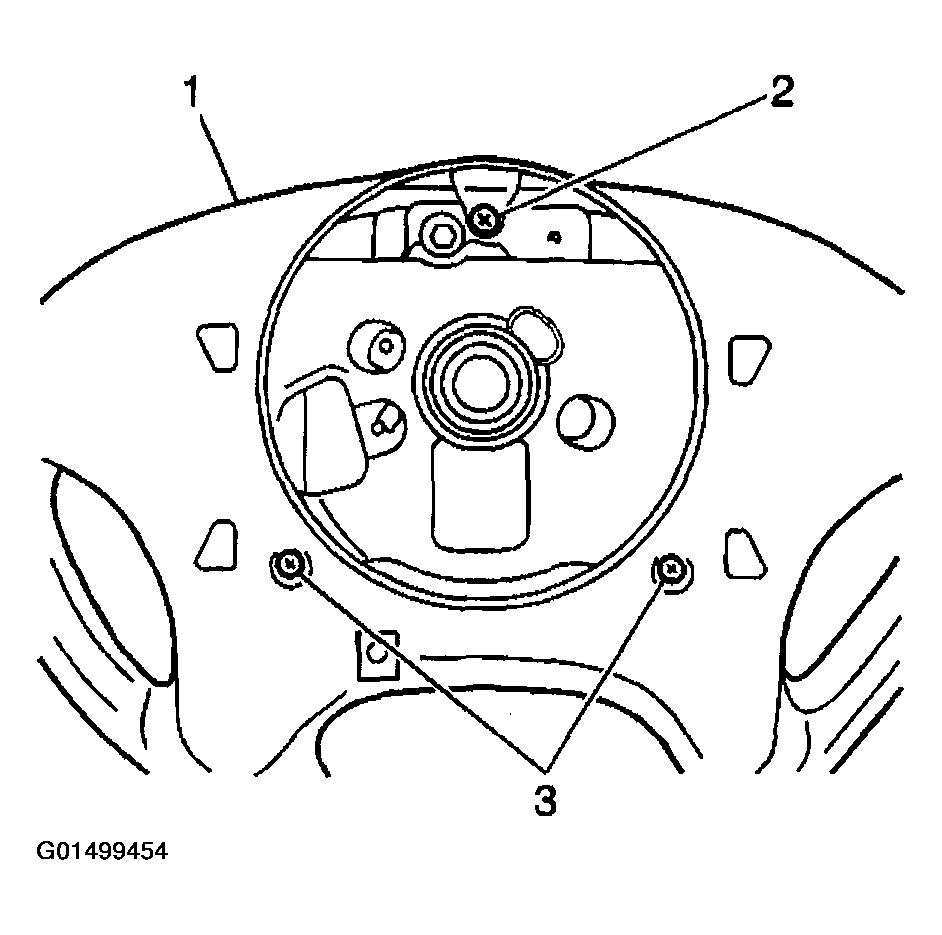

    Fig 1: Removing Steering Wheel Rear Bezel
    G01499454Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector.
  6. Insert a small, blunt-ended tool into the access hole in the back of the steering wheel. Push the switch out of the steering wheel.

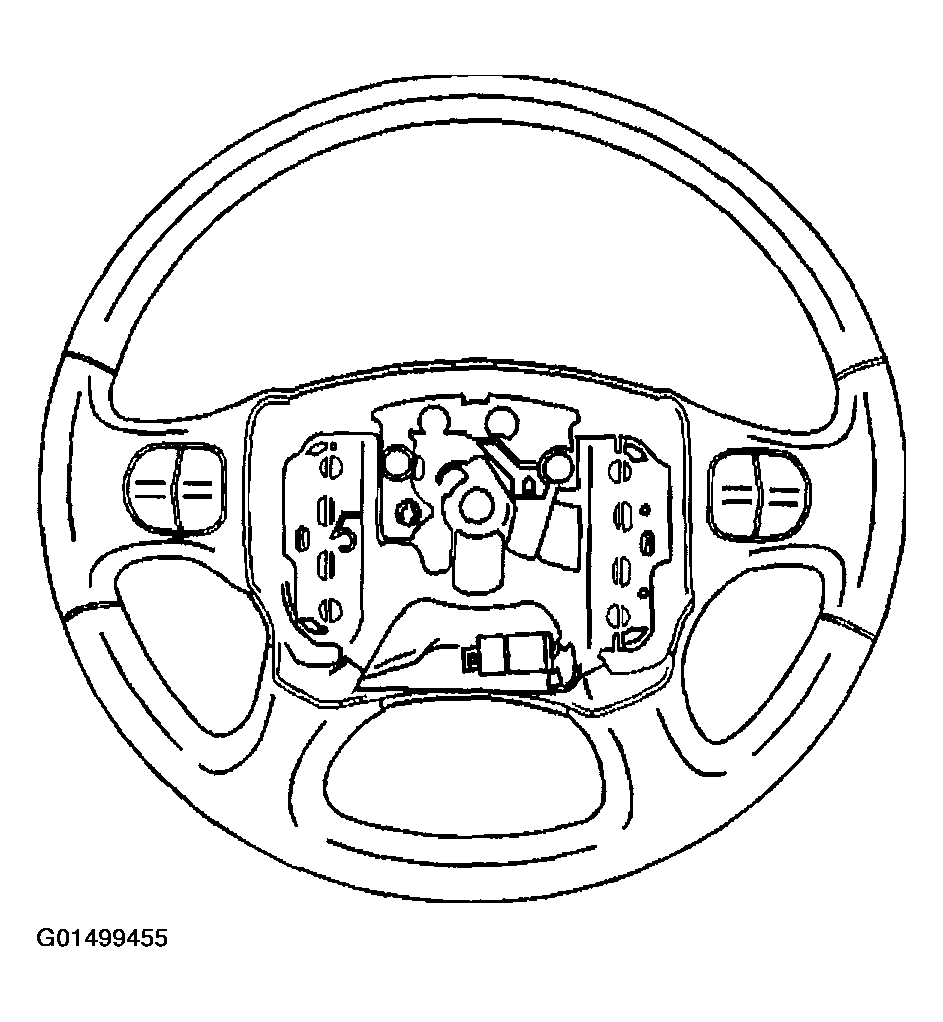

    Fig 2: Pushing Switch Out Of Steering Wheel
    G01499455Courtesy of GENERAL MOTORS CORP.
