Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster.
  2. Remove the steering column upper nut.
  3. Remove the center console.

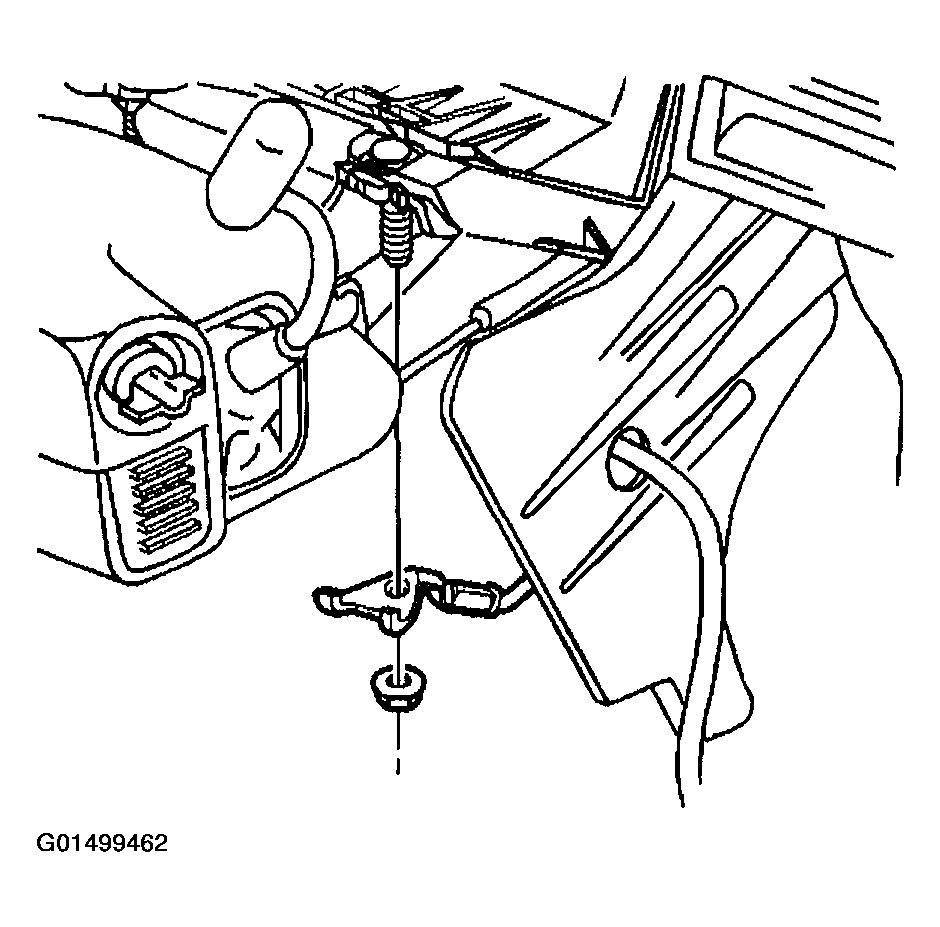

    Fig 1: Removing Steering Column Upper Nut
    G01499462Courtesy of GENERAL MOTORS CORP.
  4. Remove the anchor cable nut from the center console bracket.
  5. Remove the anchor cable.

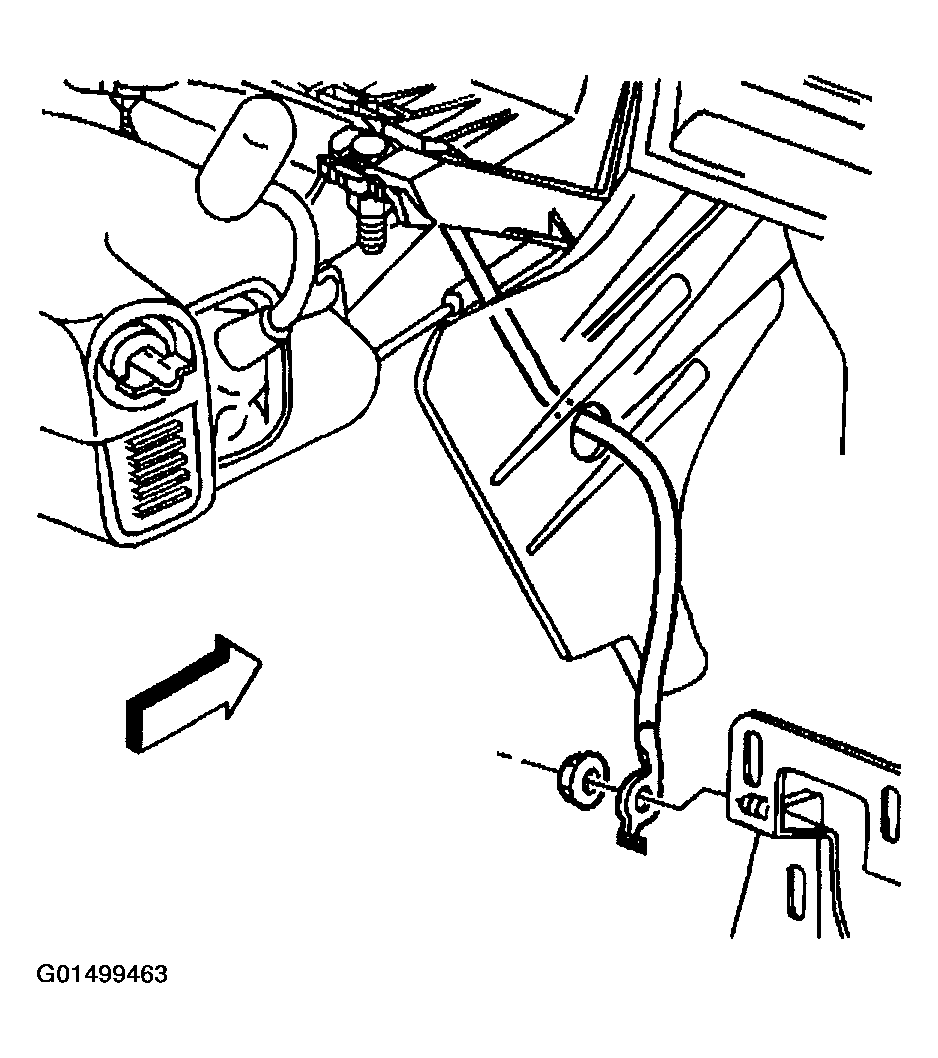

    Fig 2: Removing Anchor Cable
    G01499463Courtesy of GENERAL MOTORS CORP.
