Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Properly route the steering column anchor cable.
  2. Install the anchor cable to the center console bracket stud.
  3. Install the anchor cable nut to the center console bracket stud.

    Tighten

    Tighten the nut to 10 N.m (14 lb ft).

  4. Install the steering column anchor cable end to the steering column stud.

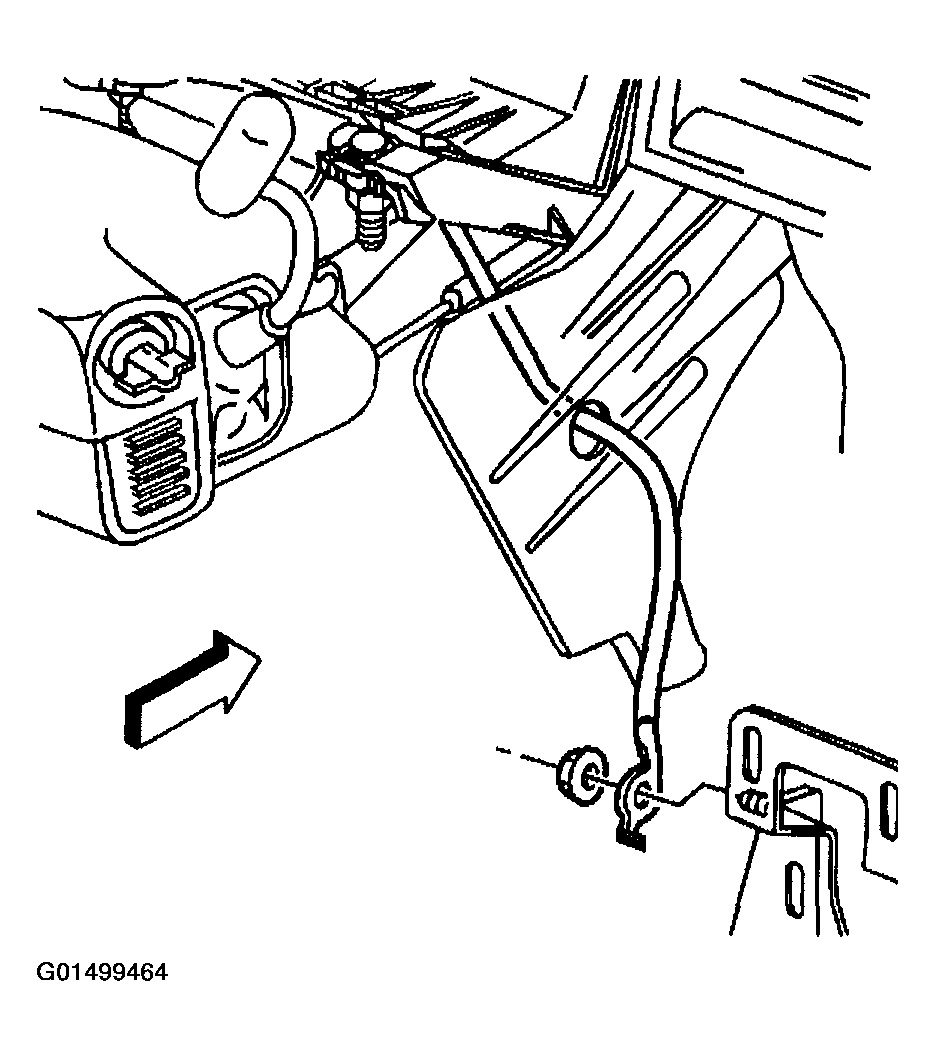

    Fig 1: Installing Anchor Cable
    G01499464Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column nut. Refer to STEERING COLUMN REPLACEMENT  .
  6. Install the center console.
  7. Install the knee bolster.

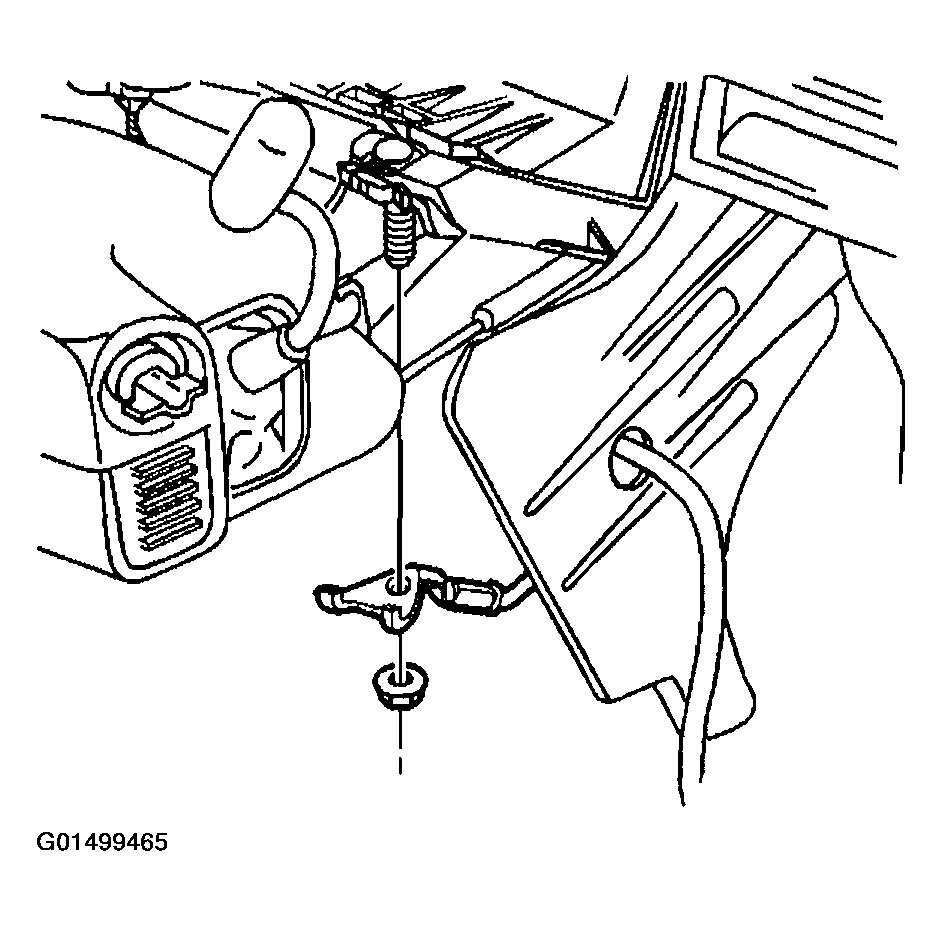

    Fig 2: Installing Steering Column Nut
    G01499465Courtesy of GENERAL MOTORS CORP.
