Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sift lever boot out of the way (2).
  2. Remove the retaining screw (3) from the lever.
  3. Remove the lever (1).

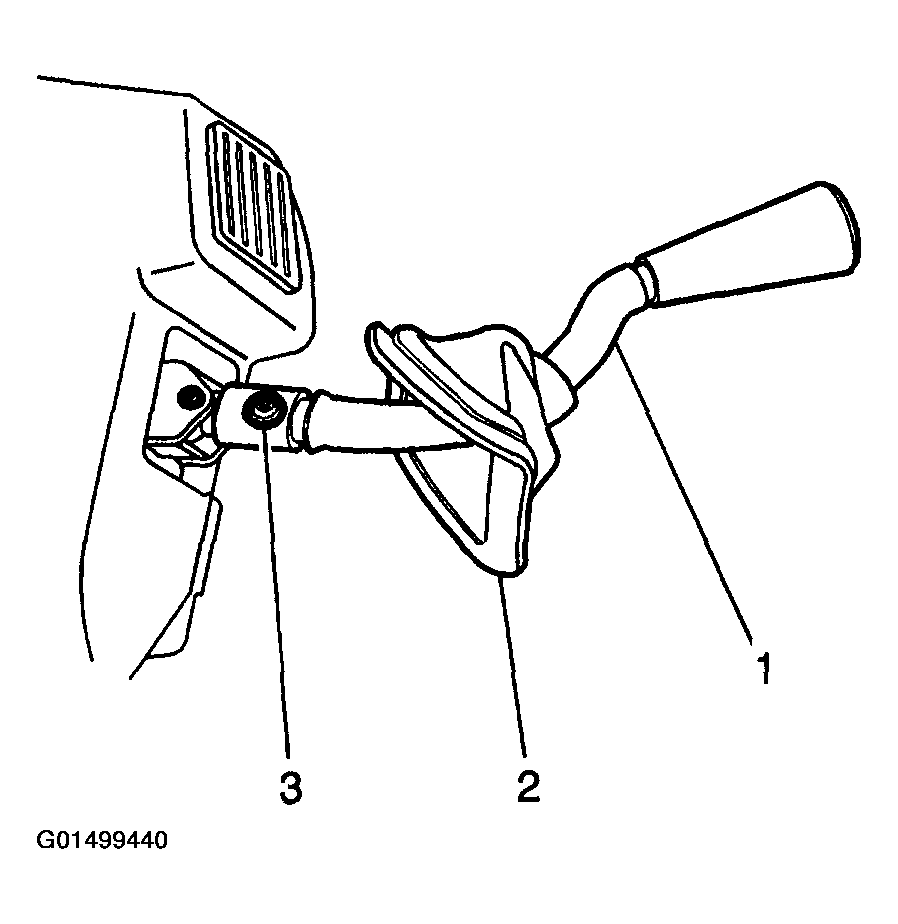

    Fig 1: Removing Shift Lever
    G01499440Courtesy of GENERAL MOTORS CORP.
