Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate shaft lower seal over the intermediate shaft and to the steering gear.
  2. Install the intermediate shaft upper seal over the lower seal and to the instrument panel.
  3. Connect the intermediate shaft to the steering column. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT  .
  4. Install the intermediate shaft seal to the steering column.
  5. Install the intermediate shaft seal bolts.

    Tighten  Tighten the intermediate shaft seal bolts to 3 N.m (27 lb in).

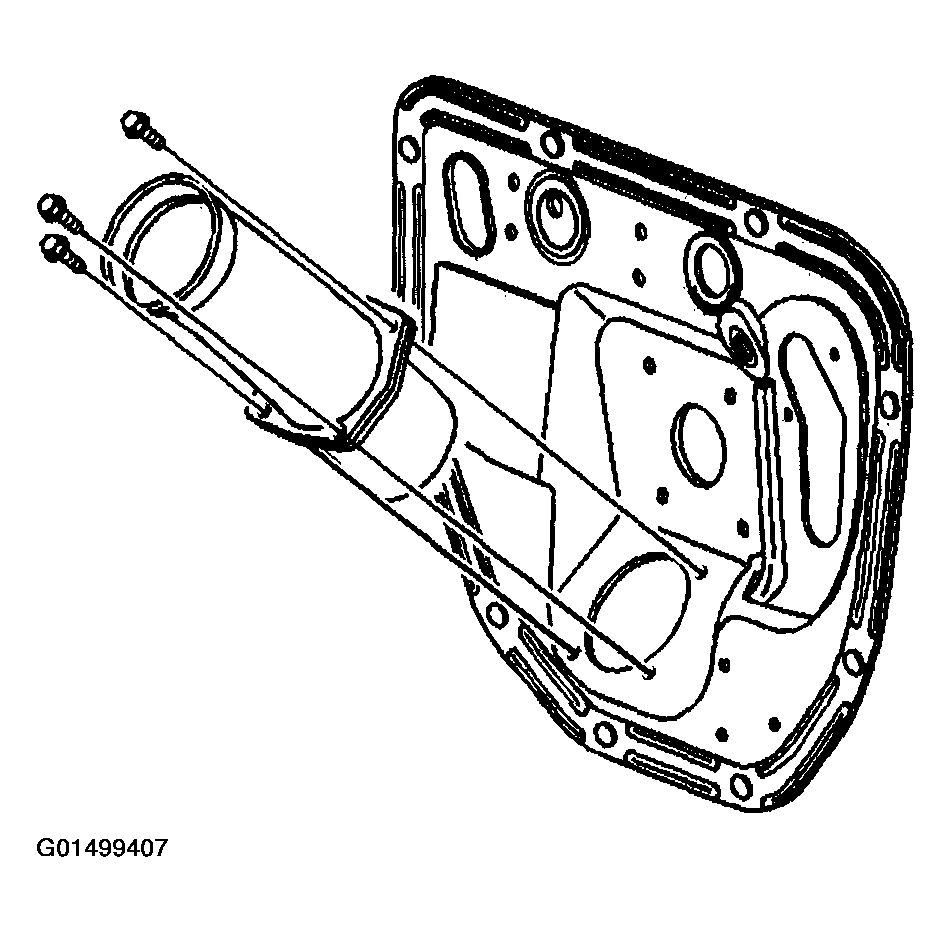

    Fig 1: Installing Intermediate Shaft Seal
    G01499407Courtesy of GENERAL MOTORS CORP.
