Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park pawl actuator assembly (2) to the linear shift assembly (1).

    Install the park pawl actuator screws (3).

  2. Install the linear shift assembly. Refer to LINEAR SHIFT ASSEMBLY REPLACEMENT  .

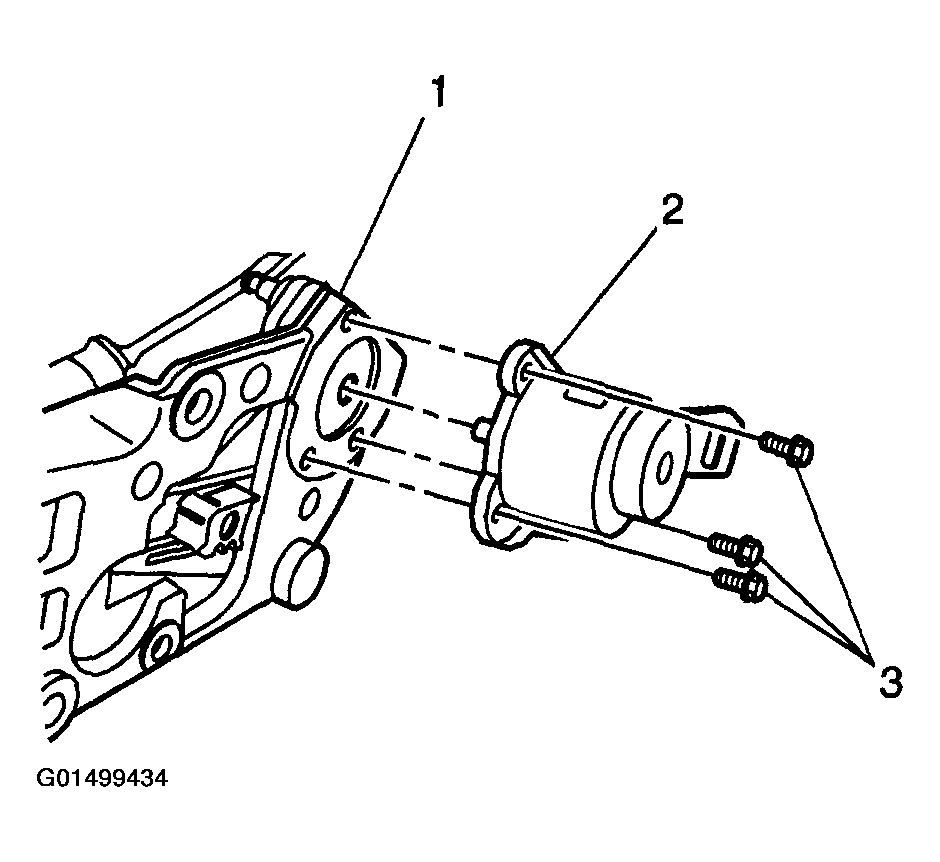

    Fig 1: Installing Park Pawl Actuator Assembly
    G01499434Courtesy of GENERAL MOTORS CORP.
