Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the park pawl actuator by rotating clockwise.
  3. Install the tie straps onto the park pawl actuator harness.
  4. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .

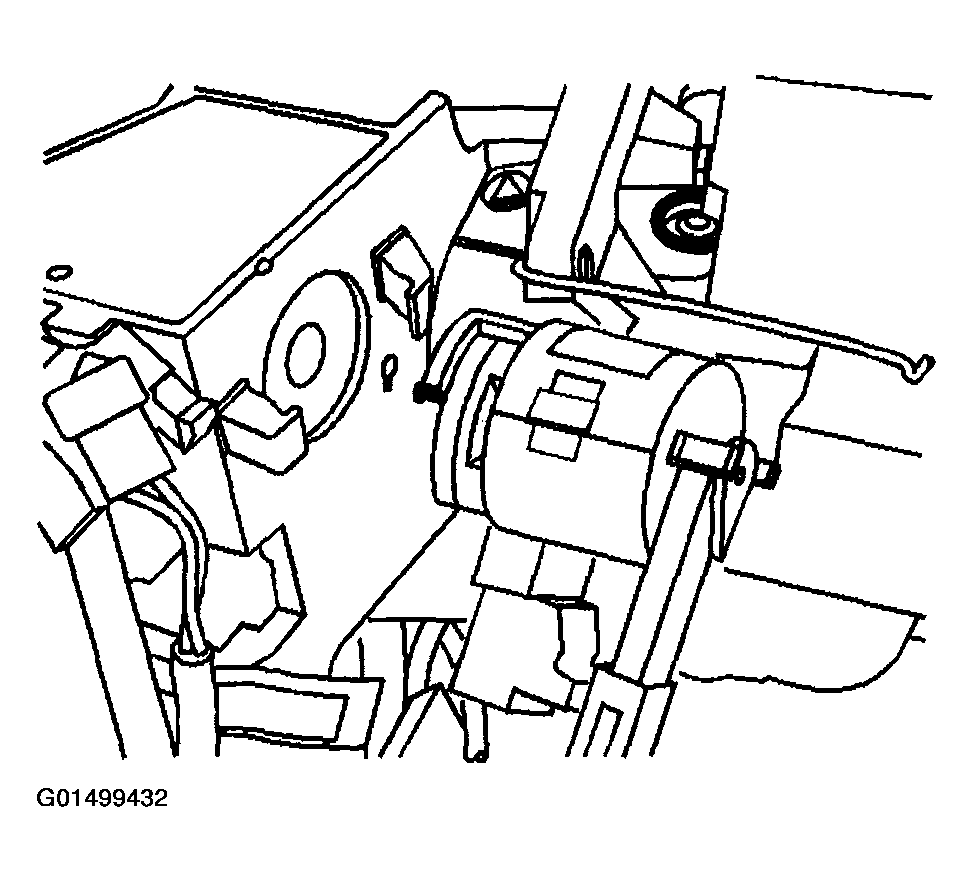

    Fig 1: Installing Park Pawl Actuator
    G01499432Courtesy of GENERAL MOTORS CORP.
