Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Release the vent hose clamp (1) from the extension housing assembly.
  3. Disconnect the vent hose (2) from the retaining bracket on the transfer case assembly.
  4. Remove the vent hose from the extension housing assembly vent tube by carefully twisting the hose.

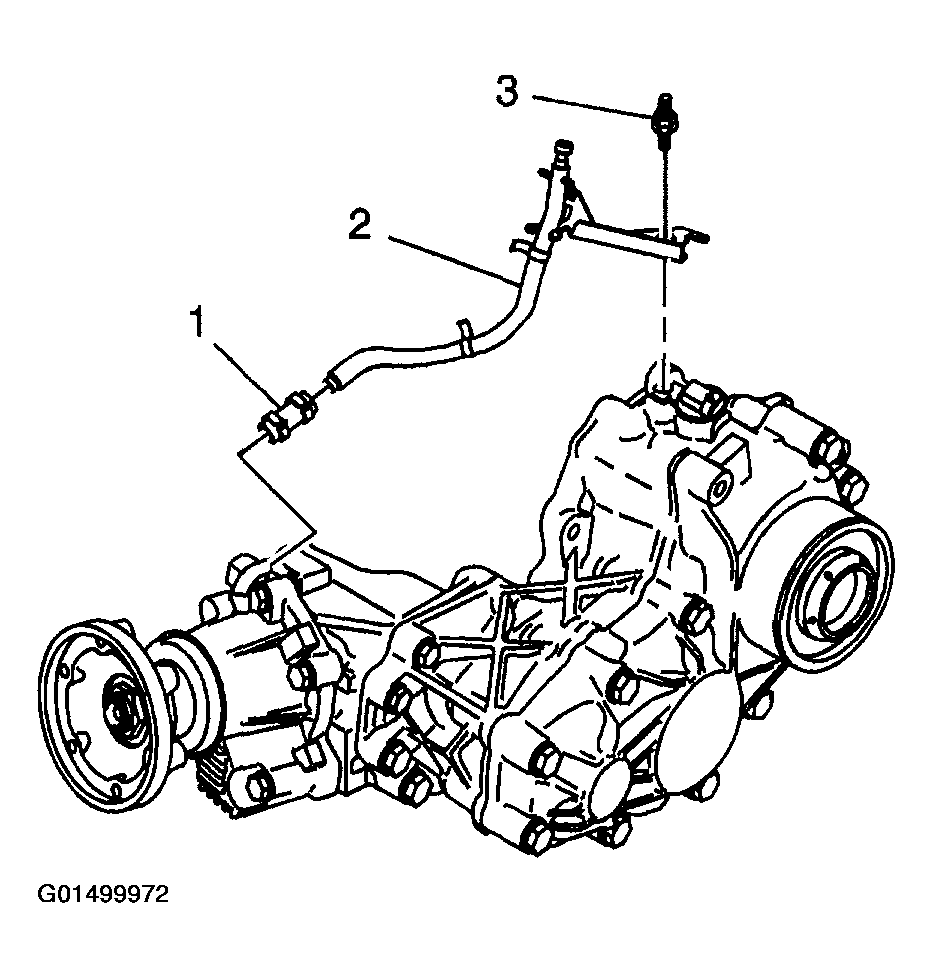

    Fig 1: Disconnecting Vent Hose From Retaining Bracket
    G01499972Courtesy of GENERAL MOTORS CORP.
